What's on your bench?

[Czed]

Prolly my favorite saw, Meteor piston also...
View attachment 365351

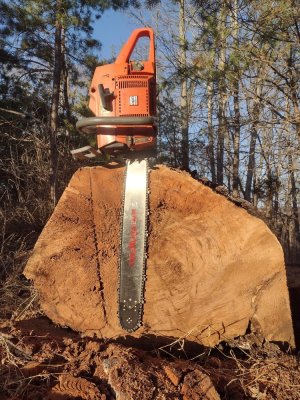

I prefer the 266s the 2 piece coil saws just seem to have a better powerband for some reason
This one has good torque with a muffler mod and base gasket delete.



[Ronie]

Still working on my lathe, so far it's been painted, bearings packed and the 1/2 hp motor replaced with a 1 1/2 hp three phase motor.



[kfd518]

461-R “ it won’t start it just keeps flooding after we get it dried out”
Does it have spark?
!!!!!!
That was an easy fix. Leave it to firemen.



[czar800]

Got a odd duck I’m going through this 036 QS.



[Wolverine]

Got a odd duck I’m going through this 036 QS.


View attachment 366064View attachment 366065

Quirky Sumbitch?



[beaglebriar]

Got a odd duck I’m going through this 036 QS.


View attachment 366064View attachment 366065

Queer saw...



[beaglebriar]

So it isn't the first time I've seen this with a 372 base gasket but this one is kind of interesting. I've had this saw on my builder shelf for several years and my son wants a 372 so we opened it up. Whoever owned it obviously could never get it to idle properly and backed the idle screw out until it lost spring tension and fell out. The screw was lodged under the carb for some time until it finally made it's way to the flywheel. Saw was given to me because it was locked up. Super easy repair.. we'll have it cleaned up and back together in no time. See how it runs then give it the go fast treatment.



[Kiwioilboiler]

So it isn't the first time I've seen this with a 372 base gasket but this one is kind of interesting. I've had this saw on my builder shelf for several years and my son wants a 372 so we opened it up. Whoever owned it obviously could never get it to idle properly and backed the idle screw out until it lost spring tension and fell out. The screw was lodged under the carb for some time until it finally made it's way to the flywheel. Saw was given to me because it was locked up. Super easy repair.. we'll have it cleaned up and back together in no time. See how it runs then give it the go fast treatment.

I wouldn't stand for that sort of insolence from a base gasket DJ. Its begging to be discarded...



[beaglebriar]

I wouldn't stand for that sort of insolence from a base gasket DJ. Its begging to be discarded...

Done!



[Maintenance Chief]

A shop gave me this little guy ,abandoned and neglected. A new air and fuel filter with some tuning brought it back to life. Coil was also rubbing the flywheel.
Came with a case too.



[farminkarman]

Had to make up an extra plate to mount the Dolmar 6100 cylinder in the lathe for the squish cut.



[CJ Brown]

Had to make up an extra plate to mount the Dolmar 6100 cylinder in the lathe for the squish cut.
View attachment 366282

Does anything hold the top of the cylinder to the plate mounted in the chuck other than friction?



[farminkarman]

Does anything hold the top of the cylinder to the plate mounted in the chuck other than friction?

Nope



[CJ Brown]

Nope

Thanks. I have cut a couple bases but I have been apprehensive about cutting bands. It looks like a lot of setup and also looks a bit dangerous if I set it up wrong. Any helpful hints?



[farminkarman]

Thanks. I have cut a couple bases but I have been apprehensive about cutting bands. It looks like a lot of setup and also looks a bit dangerous if I set it up wrong. Any helpful hints?

It’s really not too bad. For most cylinders I just use a single 5”x5”x1/2” thick aluminum plate with holes drilled in it to match the cylinder. You can use threaded rod, studs, or long bolts to secure the cylinder to the plate. I use a test indicator with a long contact finger to measure runout at the top & bottom of the jug. Here is a vid that @Mastermind did on this:



[CJ Brown]

It’s really not too bad. For most cylinders I just use a single 5”x5”x1/2” thick aluminum plate with holes drilled in it to match the cylinder. You can use threaded rod, studs, or long bolts to secure the cylinder to the plate. I use a test indicator with a long contact finger to measure runout at the top & bottom of the jug. Here is a vid that @Mastermind did on this:

Thanks again that's great! What rpm would you run at to cut the band?



[farminkarman]

Thanks again that's great! What rpm would you run at to cut the band?

Ya know what, I’m not sure what I run mine at. Next time I’m in the shop I will have a look



[Sierra_rider]

Thanks again that's great! What rpm would you run at to cut the band?

As long as it doesn't get too "vibey," faster is generally better. I'm probably cutting pretty slow compared to some, but I generally run 360rpm on mine. I'm not using the power feed when cutting them, so any slower than that leads to a rougher finish with my inconsistent hands. Even after all that, I'll sand the squish band with adhesive sand paper on the same mandrel I use for cutting the base.



[Agent Smith]

I cut mine at 150rpm with a 5/8 bar. Leaves a nice finish



[huskihl]

Whatever a 9x19 turns with the little belt in the slow spot. Probably around 300rpm
