I didn't go popup. Did I mention how much I hate dome Pistons?

My stock squish was .047 without base gasket.

I took .060 from base and .037 from band. I have a final squish of .023-.025. Unfortunately, the thicker reading is by the piston edge.

ImageUploadedByTapatalk1458423148.945688.jpgImageUploadedByTapatalk1458423163.818827.jpg


Sent from my iPad using Tapatalk


Red97

Mastermind Approved!
GoldMember
Local time
11:47 AM
User ID
385
Joined
Jan 2, 2016
Messages
7,452
Reaction score
53,843
Location
MI
Country flag


I went 7* for the band. Make sure if you are cutting with a mandrel the tool bit is cut short enough... :(



Those 2 gouges by the threads were before I realized the tool bit was too long. Made a sanding mandrel at 7* and finished to 150 grit.




Ex at 106, still have to bevel.



Transfers on the way to 125.

I am about .053 off the base, and .018 squish. Went too deep, and had to cut more off the base.


Red97

Mastermind Approved!
GoldMember
Local time
11:47 AM
User ID
385
Joined
Jan 2, 2016
Messages
7,452
Reaction score
53,843
Location
MI
Country flag
After cut numbers
Ex 121
Tr 131
In 88 at the very point.

Think I'm just going to widen the top 2/3 and raise it back up the .050.


echoshawn

Blinker fluid
Local time
11:47 AM
User ID
460
Joined
Jan 9, 2016
Messages
247
Reaction score
647
Location
Woods of North Idaho
Are you gonna epoxy the bottom of the intake?
Since I pulled my jug I put some in the bottom of mine.
Gonna raise my exhaust a bit and slightly widen the intake.


Red97

Mastermind Approved!
GoldMember
Local time
11:47 AM
User ID
385
Joined
Jan 2, 2016
Messages
7,452
Reaction score
53,843
Location
MI
Country flag
I didn't go popup. Did I mention how much I hate dome Pistons?

My stock squish was .047 without base gasket.

I took .060 from base and .037 from band. I have a final squish of .023-.025. Unfortunately, the thicker reading is by the piston edge.

View attachment 15919View attachment 15920


Sent from my iPad using Tapatalk

Nice, didn't see much room for a popup either.

Really wish the casting had more meat round the exhaust.


Red97

Mastermind Approved!
GoldMember
Local time
11:47 AM
User ID
385
Joined
Jan 2, 2016
Messages
7,452
Reaction score
53,843
Location
MI
Country flag
Are you gonna epoxy the bottom of the intake?
Since I pulled my jug I put some in the bottom of mine.
Gonna raise my exhaust a bit and slightly widen the intake.

Don't think I am going to epoxy mine, just raise it back up, and widen it a bit.


echoshawn

Blinker fluid
Local time
11:47 AM
User ID
460
Joined
Jan 9, 2016
Messages
247
Reaction score
647
Location
Woods of North Idaho

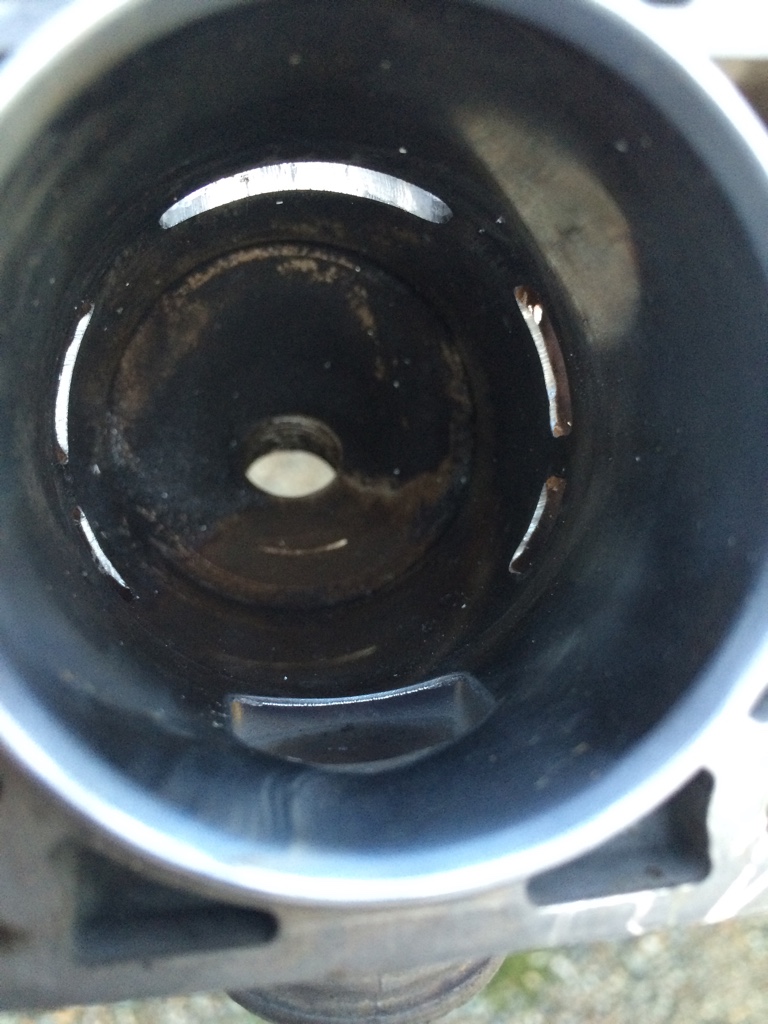

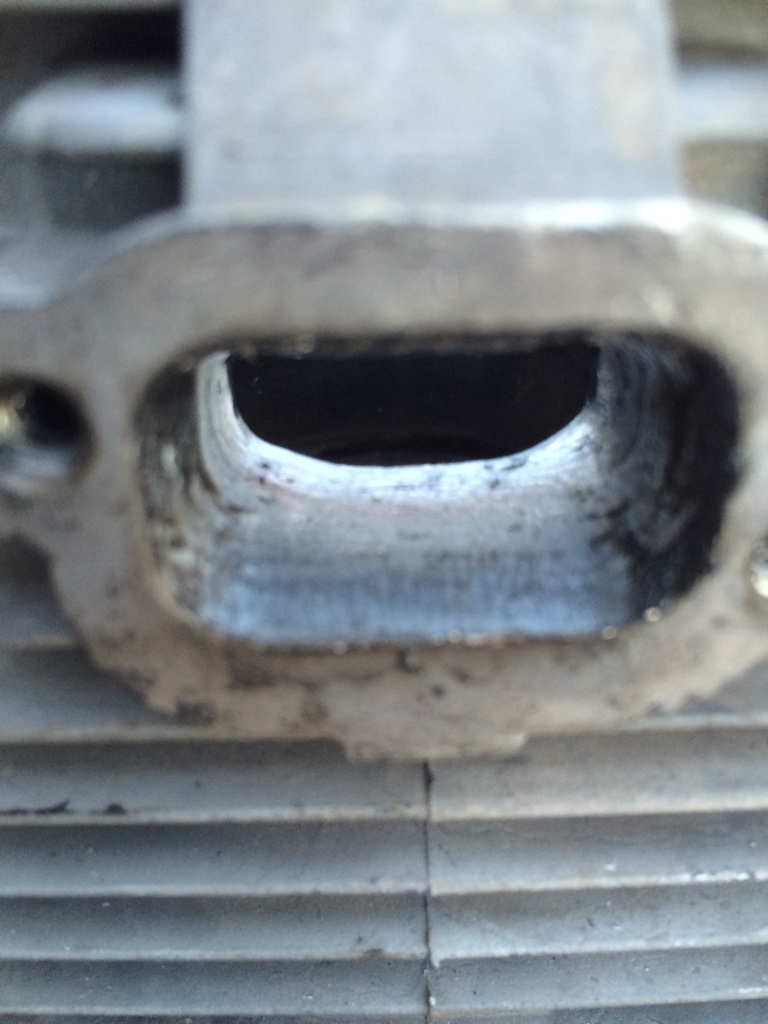

So I raised my exhaust a bit.

Used some JB stick epoxy to raise the floor of the intake some.

And lightly raised the transfers some.
I'll bolt it back together tomorrow along with cutting the new port cover out and see what happens!


Red97

Mastermind Approved!
GoldMember
Local time
11:47 AM
User ID
385
Joined
Jan 2, 2016
Messages
7,452
Reaction score
53,843
Location
MI
Country flag
Your exhaust port looks sad.

Adds character...

You cut your chamber on the lathe? On any angle? I really ought to try using the lathe to cut squish at least once.


So I raised my exhaust a bit.

Used some JB stick epoxy to raise the floor of the intake some.

And lightly raised the transfers some.
I'll bolt it back together tomorrow along with cutting the new port cover out and see what happens!

Should wake up a bit. Nice job sir.

Don't know if it is easier or not, but I haven't even bother tacking the transfer covers off yet...

What ever they are made of is really soft, cuts quick.


echoshawn

Blinker fluid
Local time
11:47 AM
User ID
460
Joined
Jan 9, 2016
Messages
247
Reaction score
647
Location
Woods of North Idaho
Adds character...

You cut your chamber on the lathe? On any angle? I really ought to try using the lathe to cut squish at least once.



Should wake up a bit. Nice job sir.

Don't know if it is easier or not, but I haven't even bother tacking the transfer covers off yet...

What ever they are made of is really soft, cuts quick.
Thank you sir.
I figured if the intake fill kills it, it's easy to grind out.
Have to admit I have cheated a bit.
Messaging with Randy E and Carl some so I don't destroy it.
Although, super cheap find.


bikemike

Pinnacle OPE Member
Local time
10:47 AM
User ID
768
Joined
Feb 4, 2016
Messages
2,263
Reaction score
5,435
Location
Cottage grove mn
Thank you sir.
I figured if the intake fill kills it, it's easy to grind out.
Have to admit I have cheated a bit.
Messaging with Randy E and Carl some so I don't destroy it.
Although, super cheap find.
If people didn't cheet in Nascar, they wouldn't win
