What's on your bench?

[Ronie]

I


I’m posting to see if anyone has ever modified pistons to make the intake flow better. Reason I ask is I haven’t seen anything on the subject and the piston does serve as a valve.
3 angle valve jobs are standard in race engines(4stroke).
The bottom of tge piston intake skirt can be modified to replicate a three angle valve job
Done correctly and it will aid in emptying the intake tract as it reaches tdc as well as enhancing flow as the piston travels down past the port.
It will eliminate spit back, and it will allow more room to port the intake port

I thought a 3 angle valve job was for better sealing.



[farminkarman]

This little guy showed up in the mail today. This 346 belongs to a fella I met in Iowa. He sent it to me to be warmed up, but it’s gonna get a complimentary full rebuild too.



[farminkarman]

I thought a 3 angle valve job was for better sealing.

Tis done for improved flow...even with a 3-angle job, the valve only seats on one face.



[Ronie]

Tis done for improved flow...even with a 3-angle job, the valve only seats on one face.

Thanks, I always thought it was for sealing.



[MustangMike]

I had an 066 that ran fine with a piston that looked worse than that!

I did end up putting a Cross P+C on it, but it ran just fine!



[merc_man]

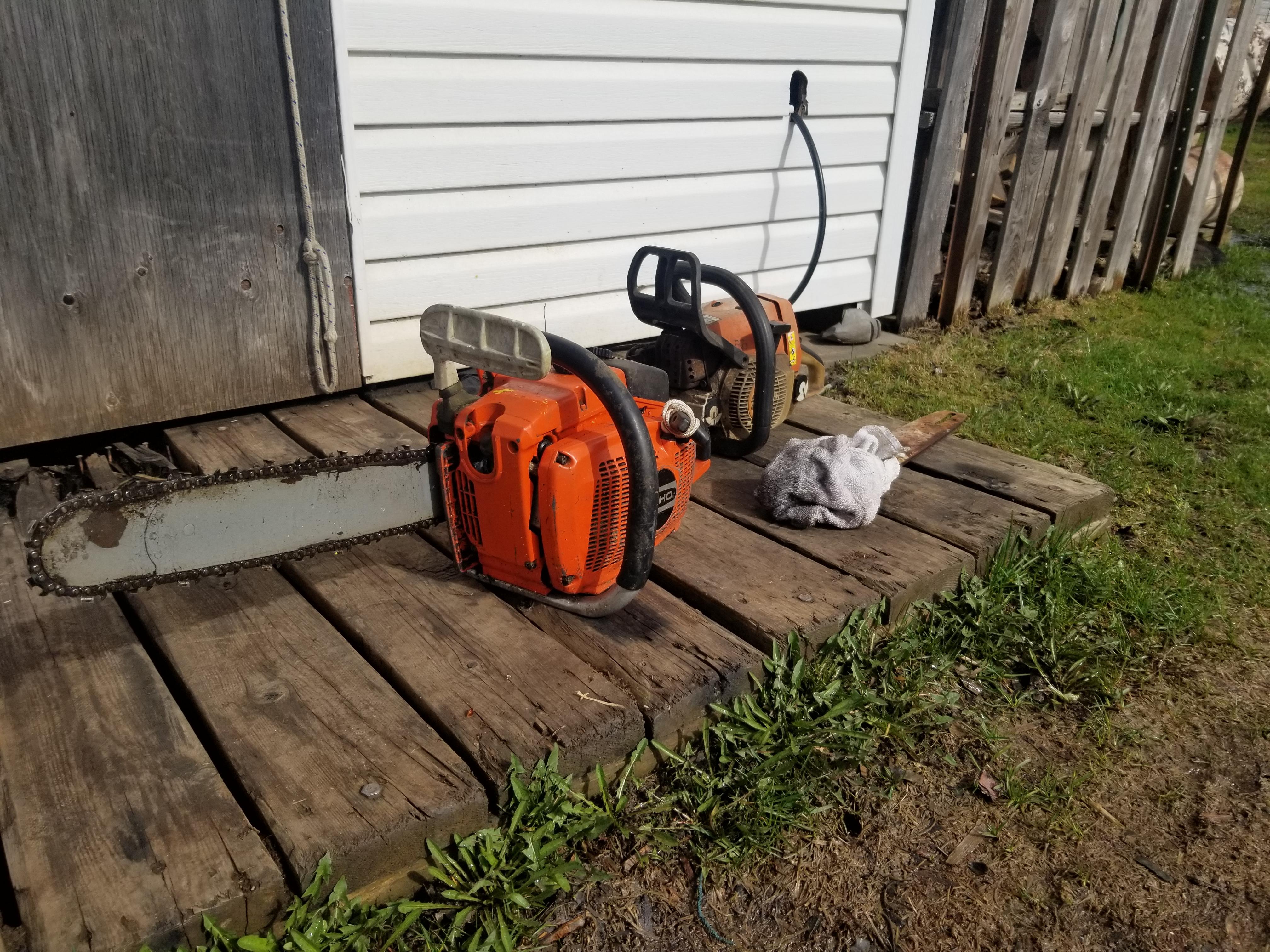

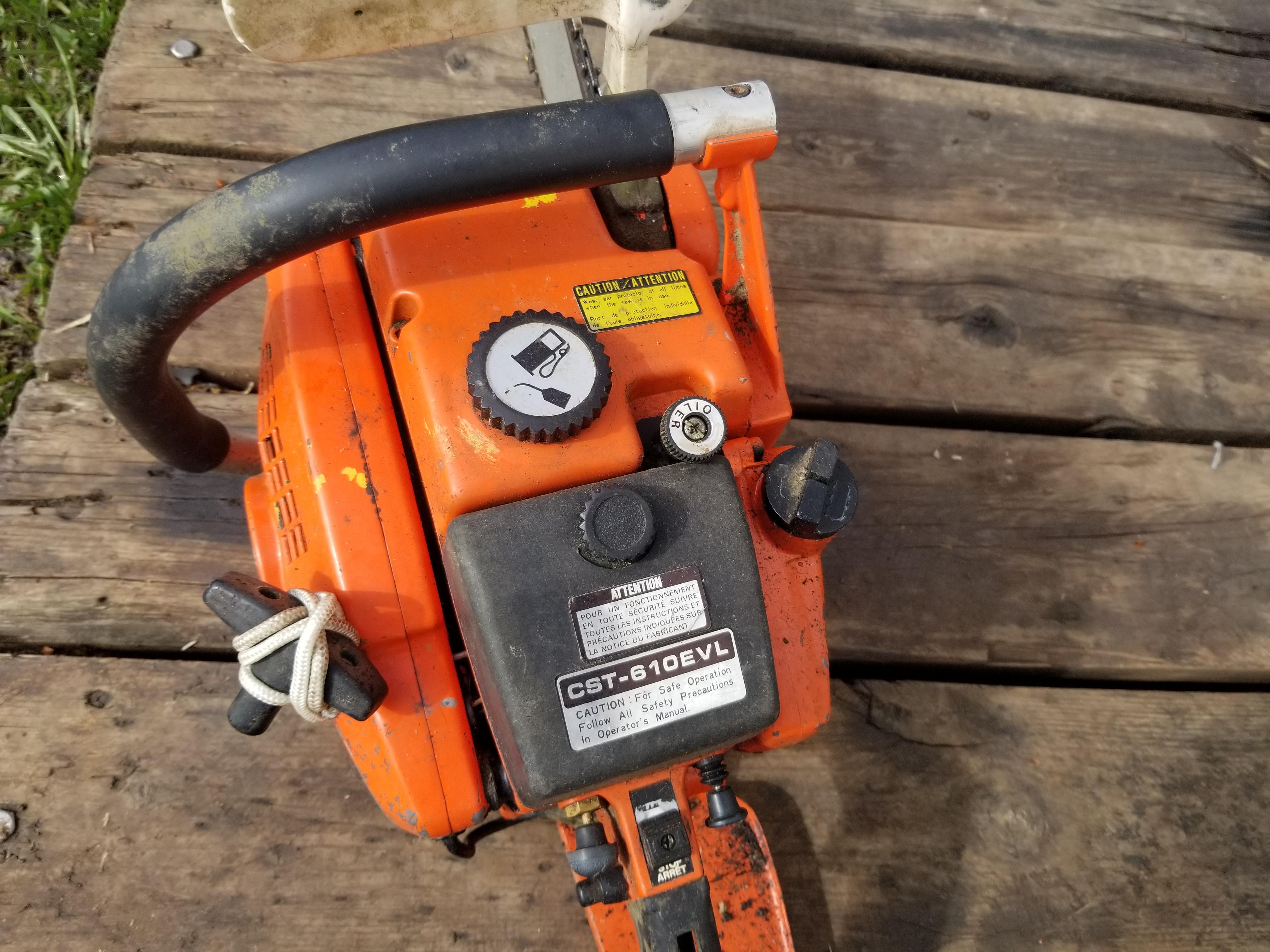

Pretty excited about the echo. Always wanted a twin cylinder. Need to find the front little plug cover.

Sent from my SM-G950W using Tapatalk



[Stevetheboatguy]

4l80e........



Hope to have it done by next weekend. Hard to get time to work on anything right now.

Nice thing is that this was a 100% fully functioning unit before teardown. Only issue is it was 2wd not 4. So needed to come all the way appart to swap output shafts. Going to do a full alto and high energy kit while it's apart. And use the good guts from this one to build a second with the trans that's in the vehicle now. Keep it under a bench for a spare. Never a bad thing to have a extra on hand........ When you're not right in the head

Remind me why I need so many "spare and extra" chainsaws ??????

At least they are easier to store, lift, move aw heck more easy to do anything



Steven



[PA Dan]

4l80e........

View attachment 333550 View attachment 333551

Hope to have it done by next weekend. Hard to get time to work on anything right now.

Nice thing is that this was a 100% fully functioning unit before teardown. Only issue is it was 2wd not 4. So needed to come all the way appart to swap output shafts. Going to do a full alto and high energy kit while it's apart. And use the good guts from this one to build a second with the trans that's in the vehicle now. Keep it under a bench for a spare. Never a bad thing to have a extra on hand........ When you're not right in the head

Remind me why I need so many "spare and extra" chainsaws ??????

At least they are easier to store, lift, move aw heck more easy to do anything



Steven

You have spare and extra chainsaws?



[farminkarman]

You have spare and extra chainsaws?

He must have a lot of saws…I don’t have any spares yet



[Stevetheboatguy]

You have spare and extra chainsaws?

He must have a lot of saws…I don’t have any spares yet

Damn saw junkies. Always hunting for their next fix. Step into my office




Steven



[Kiwioilboiler]

4l80e........

View attachment 333550 View attachment 333551

Hope to have it done by next weekend. Hard to get time to work on anything right now.

Nice thing is that this was a 100% fully functioning unit before teardown. Only issue is it was 2wd not 4. So needed to come all the way appart to swap output shafts. Going to do a full alto and high energy kit while it's apart. And use the good guts from this one to build a second with the trans that's in the vehicle now. Keep it under a bench for a spare. Never a bad thing to have a extra on hand........ When you're not right in the head

Remind me why I need so many "spare and extra" chainsaws ??????

At least they are easier to store, lift, move aw heck more easy to do anything



Steven

Not the first time I've seen you post auto trans work Steven. Had training in a past life?



[Stevetheboatguy]

Not the first time I've seen you post auto trans work Steven. Had training in a past life?

No training. Just always have to do it myself. Have done several dozen different transmissions. Some are more interesting than others. Actually like how simple these are. And was able to borrow a full kent moore special tool kit for this one. Sure makes things easier and go faster.

Edit: first transmission I attempted was a gm 700R4 when I was 17-18ish. Everything after that has looked easier. I've done several more 700/4l60 and I can say I'm still not a fan of rebuilding that one. But when they are built properly boy are they stout for what they are.



Steven



[slackinoff]

I made a bench for my new cheapie drill press. It’s within a 1/4 bubble of being level in two axis.



[markds2]

Here's for anyone who says air filters are unnecessary and that fines don't hurt a saw. Very early 10mm 044:



[nbbt]

Winch motor was acting up.
Going to use some 2 part epoxy for the repair. gap is suppose to be there it's where the screws pass through to hold together.



[M2theB]

New to me box on the bench.
Grabbed it next to a FREE sign up the road.
And it wasn’t quite empty.
Place to keep saw tools close.
Cleaned up pretty well with a little Gunk degreaser.



[Moparmyway]

Putting together a custom gate for a black iron fence.



[Maintenance Chief]

View attachment 333859 View attachment 333860 View attachment 333861

New to me box on the bench.
Grabbed it next to a FREE sign up the road.
And it wasn’t quite empty.
Place to keep saw tools close.
Cleaned up pretty well with a little Gunk degreaser.

Divorce box!,
Lol I stopped next to the road free pile once and there was a brand new" cube" archery target, woman came out of the house and I asked if that was supposed to be in the pile? She said,"yup he don't need that stuff no more when he left it here!"



[RI Chevy]

Nice Kevin. Looks pretty heavy duty...



[Sawdust Man]

I made a bench for my new cheapie drill press. It’s within a 1/4 bubble of being level in two axis.

View attachment 333790

You work in a converted chicken coop?
