1-75 is tpgether and runs but has a few minor issues. Some will need more attention ans some, like the very soft "shock mounts" or the front handle will hopefully hold up throgh the PNW GTG then on the shelf for that saw.

That large felt washer over the crankshaft is supposed to be oiled and help lubricate the clutch drum bushing/bearing. The muffler shield was pretty badly beat up and cracked, some low temp brazing rod and the yellow "Mapp" cylinder for my propane torch took care of repairs.



Part of the sawdust shield behind the starter/clutch cover is missing, but I think for a few cookies at the GTG and for sitting on the shelf it should be O.K.





I still have a good supply of the round grills for the flywheel covers...



I will take the carburetor off again today and swap out the metering set with a stainless steel plate for a set with an aluminum plate just for the sake of science.



Mark



[heimannm]

Well I had quite an adventure with the 1-75 today...before switching the metering diaphragm I thought I'd run it again for a bit first...no start. Prime and run then quit, repeat, repeat, investigate.

When I pulled the carburetor off I found this



The saw was most definitely running (and cutting) yesterday. How could this happen? I'll point out that it's not the first time I've experienced something like this.

I reset it correctly and expected that to be the end of it.




However, it still would not pull fuel. I kept searching for and explanation and eventually discovered the metering needle seat had swollen and would not pass fuel. When compressed in the fitting, the hole was basically closed.



I installed a new seat, the metering diaphragm/gasket set with an aluminum disc, and had the saw running properly again. Restarting it warm proved to be interesting, evidently the needle leaks just a little and causes some minor flooding, and the point gap must be a bit wide leading to advanced timing because it snatched the starter out of my several times. None the less, it starts, runs, idles, and cuts.



It is also interesting to note that when the throttle is fully depressed, it also moves the oiler push rod a bit and so pumps some oil to the chain. I don't know if this is by design or just a happy coincidence but I have noticed it happening on several of the top tank saw models.

Mark



[Woodslasher]

Crossposting, but I got my uncle's powdercoated 10-10 together only a little over 1.5 years after I started on it!



[Vinnywv]

I think i have the mythical beast....


So for anyone who reads my posts you know i love mixing parts. That being said. This is a super 797L. However...i did make it. I used a cp125 clutch, clutch cover, starter, and flywheel. They would be the correct period parts but it did not start out as a true S797L.



[Squareground3691]

I think i have the mythical beast....
View attachment 381038View attachment 381037View attachment 381036

So for anyone who reads my posts you know i love mixing parts. That being said. This is a super 797L. However...i did make it. I used a cp125 clutch, clutch cover, starter, and flywheel. They would be the correct period parts but it did not start out as a true S797L.

Nice



[Rallyeguy]

Bob Johnson is making gaskets & diaphragms for the MAC carburetors and rivets the plate to the metering diaphragm.

I bought some nitrile cover nylon (the material used to make the metering diaphragms and some fuel pump diaphragms) from American Rubber. I found the "Teflon" diaphragm material from an outfit called Rt21 Trading. At this time I have sent some along to Brian Genrich who is working to duplicate the gaskets and diaphragms for the BP-1 carburetors. Once that one is done I may work with Brian on other hard to find parts like the two man saw diaphragms.

Mark

Hi Mark,

I know it's been a while, but thanks for the mention. I just finished re-creating McCulloch Flatback Carb Kits, and have them up and on my site. In stock and ready to ship.

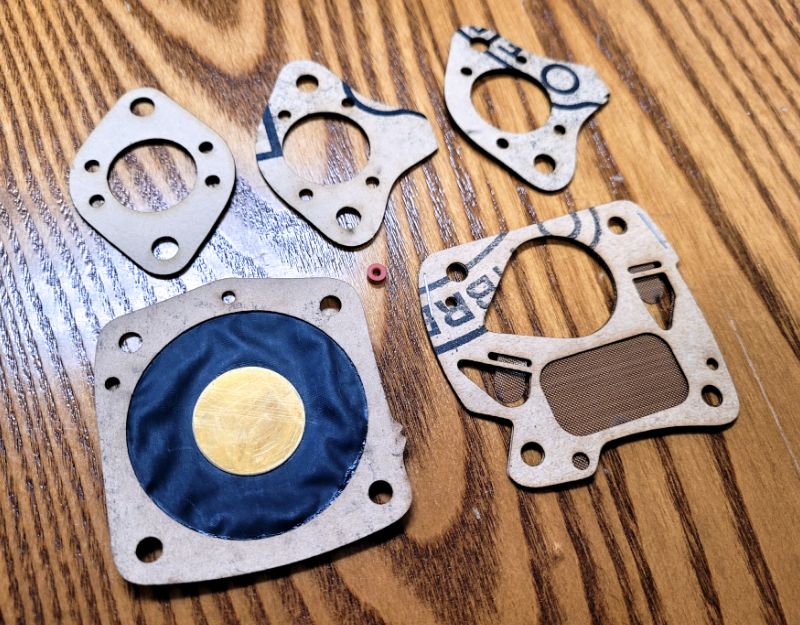

McCulloch Flatback Carburetor kit (Mac-9) Diaphragm, Carburetor Gaskets, and fuel control kit.
