What's on your bench?

[TJ the Chainsaw Mechanic]

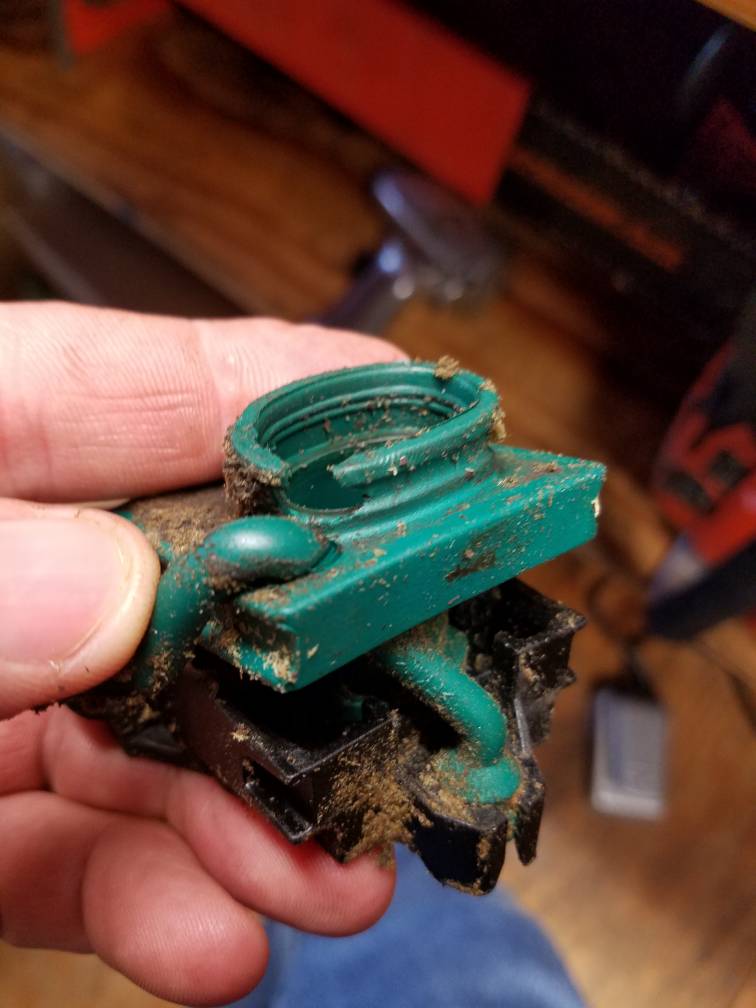

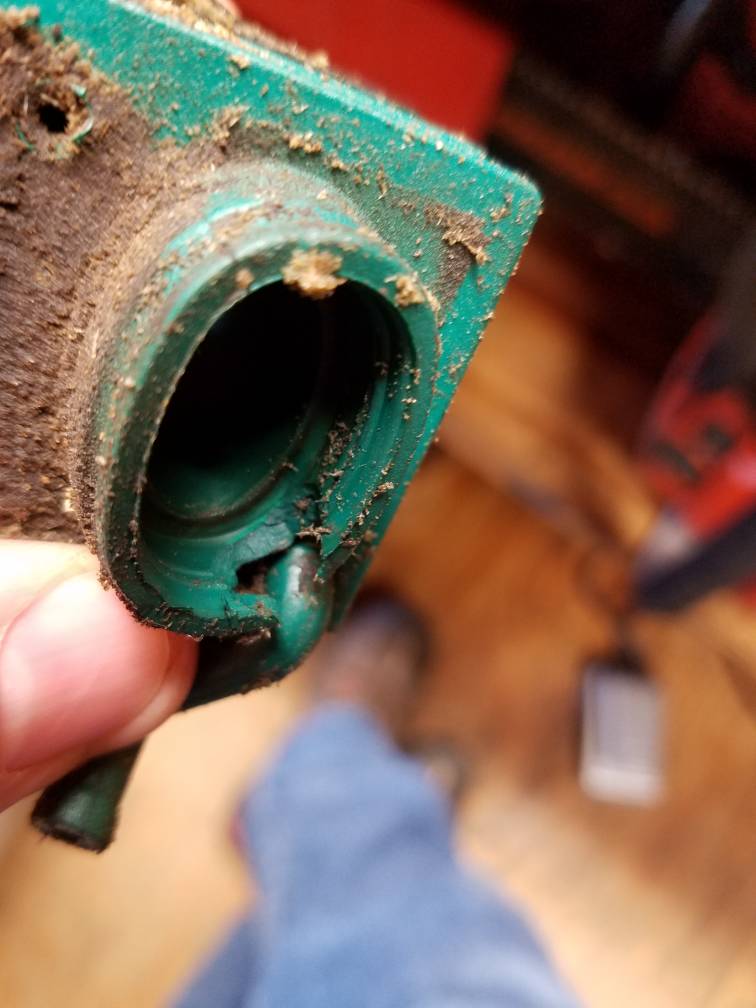

lawn boy used to use a white plastic carb back in the day. i ran into thisd problem. did you change the 3 section white nozzle. also ive had really go results out of a ultra sonic cleaner

I didn't try that, I'll fiddle with it again when I get the dang chance. Was hoping to do it tomorrow, but we are having an echo power equipment sale so it looks like wrench time is outta the question. haha



[huskyboy]

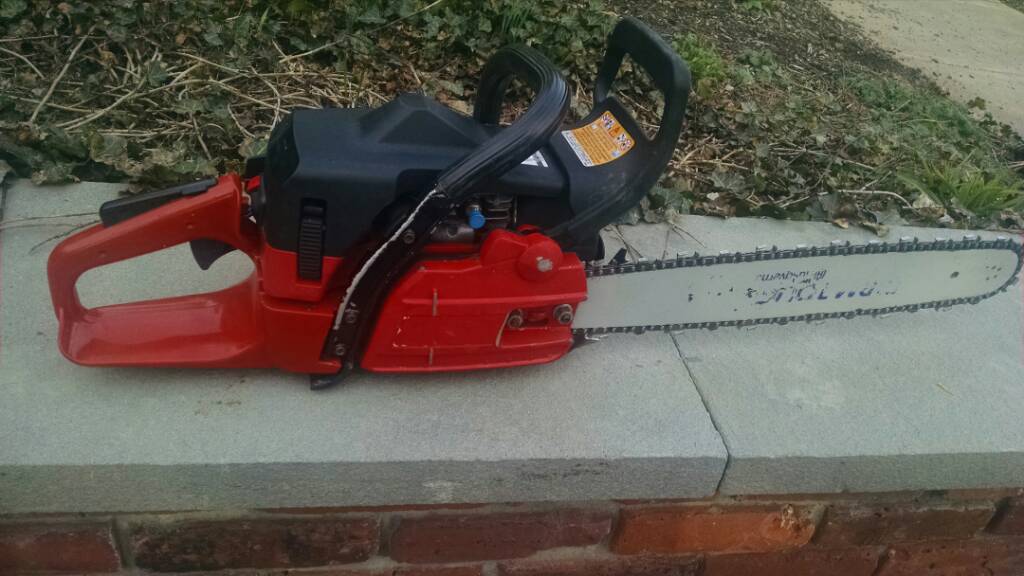

View attachment 66720 A little beat up but Got my freebie 1983 920 running new line's kit hasn't arrived yet but runs great at wfo
It only had two tank's on the oem piston kit when the owner parked it years ago that's a new 24 10mm bar and stihl rsc.
he passed and his son gave it too me i mildly ported it and found a new intake boot
Damn good running saw
Check out the weight diff between the 920 and chinese 372 ready to cut 372 has a 20.View attachment 66717 View attachment 66718 View attachment 66719

I hate you right now lol. So jealous. Man were those saws good in there time. I would hang onto that thing. I'm never selling my 930...



[rattler]

This is a nice saw and I to would love to have one of them but they are rare around here like hens teeth lol their is one on another site the guy wants to sale.

Sent from my SM-G935V using Tapatalk



[huskyboy]

This is a nice saw and I to would love to have one of them but they are rare around here like hens teeth lol their is one on another site the guy wants to sale.

Sent from my SM-G935V using Tapatalk

Course my saw slush funds are depleted when a good one pops up. I got a parts 910 that has helped me greatly if I need a part for the 930. I was going to save the 910 but the gas tank had horrible mag rot. I think most were used up logging back in day.



[TJ the Chainsaw Mechanic]

Nuttin! It's spit an polished clean. lol



[backhoelover]

I didn't try that, I'll fiddle with it again when I get the dang chance. Was hoping to do it tomorrow, but we are having an echo power equipment sale so it looks like wrench time is outta the question. haha

592792 that is the parts number for the main jet



[Nitroman]

I need to get two sno-go's outa my shop so I can clean it and get some saws in to work on.



[rattler]



[Onan18]

Mmmmmmmm, varnisized gas.



[bikemike]

Brand new haven't fired it yet. Time for a bigger stink wrinkle



[bikemike]

Ok that part is done



[rattler]

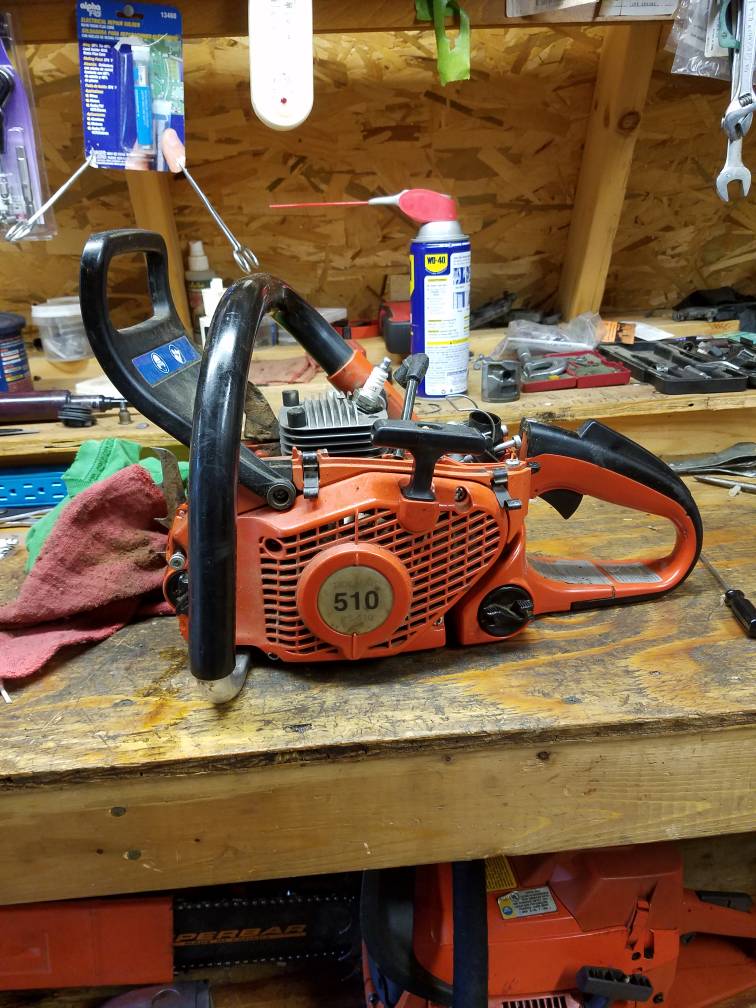

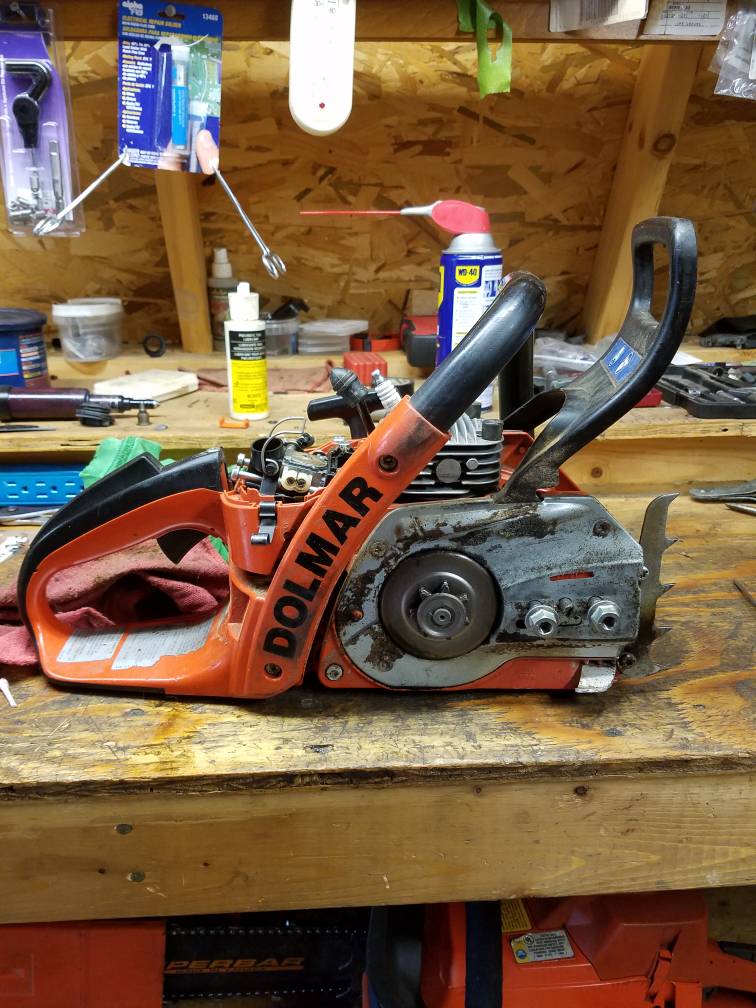

Dolmar 510

Sent from my SM-G935V using Tapatalk



[Savage Saws]

Bikemike go further with that muffler mod. Cut the stepped sectionnall the way out, right back up to the outlet.

You'll also want to advance the timing 8 degrees. Its around 1.1mm off the cast on key. I have done a truck load and they become very angry little saws!

Another gain is removing the saftey bumpers from the chain and increasing the top plate angle to around 33°. They still produce that silky like cut but you can spear and box cut like a 200t.

I love climbing with mine! So light that i thought i had dropped it of my harness the other day



[Simondo]

Dolmar 510

Sent from my SM-G935V using Tapatalk

Dolmar 510

Sent from my SM-G935V using Tapatalk

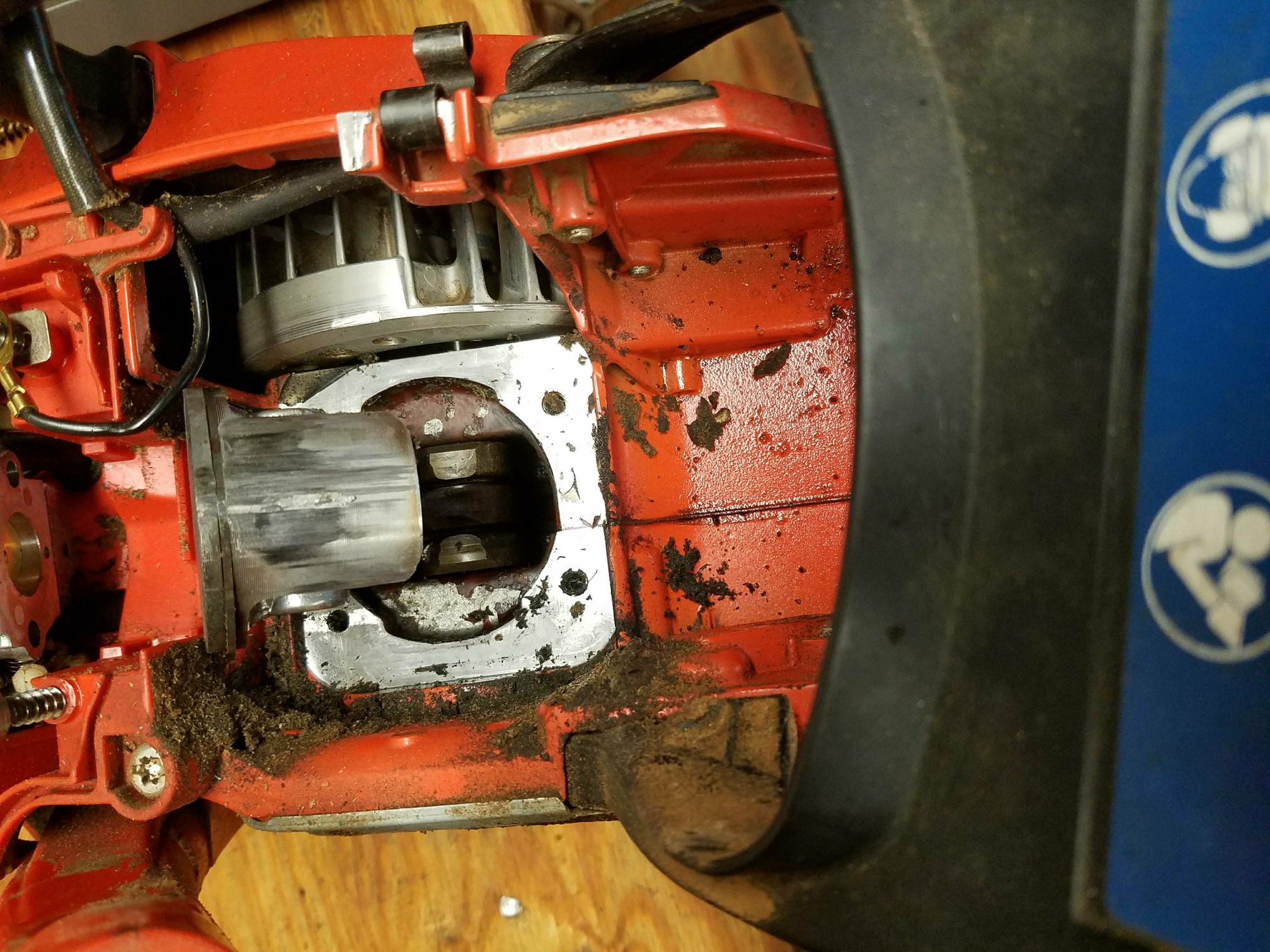

Was the saw in for repair due to poor running ....Cylinder ok Mike ?



[bikemike]

Bikemike go further with that muffler mod. Cut the stepped sectionnall the way out, right back up to the outlet.

You'll also want to advance the timing 8 degrees. Its around 1.1mm off the cast on key. I have done a truck load and they become very angry little saws!

Another gain is removing the saftey bumpers from the chain and increasing the top plate angle to around 33°. They still produce that silky like cut but you can spear and box cut like a 200t.

I love climbing with mine! So light that i thought i had dropped it of my harness the other day

Well I can still go bigger on the exhaust but for now it runs strong with limiters gone, timing advance, and muffler mod and flared exhaust deflector. Only made about 10 cookies with some old maple then brought out a bigger cedar log and made a few good cuts. I can push on this saw vs stock where you just sit and wait for it to do its job. IL decided on more mm work once a have 10 tanks or so.
It's 10x better than the stock saws we have at work



[rattler]

Was the saw in for repair due to poor running ....Cylinder ok Mike ?

Yes Sir it was the cylinder I think will clean up but the piston is trashed

Sent from my SM-G935V using Tapatalk



[beaglebriar]

Just put the finishing touches on this 2159. Carb kit,a new coil and a muffler mod now she runs like a top.

What a nice little saw! Shoulda kept it...Oh well it's going to a good home.



[Agr516]

This thing is on my bench. Couldnt pass up a late model 066 for $65. Came with the bar and chain. Has at least a roasted piston. Probably from the slam packed air filter thats on it. Piston is rough on the exhaust side but cant see any scoring on the intake side cylinder wall through the exhaust port. Havent pulled the jug yet to see if it is salvageable. Also needs two stripped lower muffler mount holes fixed and two new bar studs. Id say it was worth it for at least the entertainment.



[bikemike]

This thing is on my bench. Couldnt pass up a late model 066 for $65. Came with the bar and chain. Has at least a roasted piston. Probably from the slam packed air filter thats on it. Piston is rough on the exhaust side but cant see any scoring on the intake side cylinder wall through the exhaust port. Havent pulled the jug yet to see if it is salvageable. Also needs two stripped lower muffler mount holes fixed and two new bar studs. Id say it was worth it for at least the entertainment.

You stole that saw lol



[beaglebriar]

This thing is on my bench. Couldnt pass up a late model 066 for $65. Came with the bar and chain. Has at least a roasted piston. Probably from the slam packed air filter thats on it. Piston is rough on the exhaust side but cant see any scoring on the intake side cylinder wall through the exhaust port. Havent pulled the jug yet to see if it is salvageable. Also needs two stripped lower muffler mount holes fixed and two new bar studs. Id say it was worth it for at least the entertainment.

Chit... the bar's worth that.
