What's on your bench?
- Thread starter Adirondackstihl
- Start date
tickbitintn
Pinnacle OPE Member
- Local time
- 9:24 PM
- User ID
- 464
- Joined
- Jan 9, 2016
- Messages
- 1,897
- Reaction score
- 8,016
- Location
- middle tn

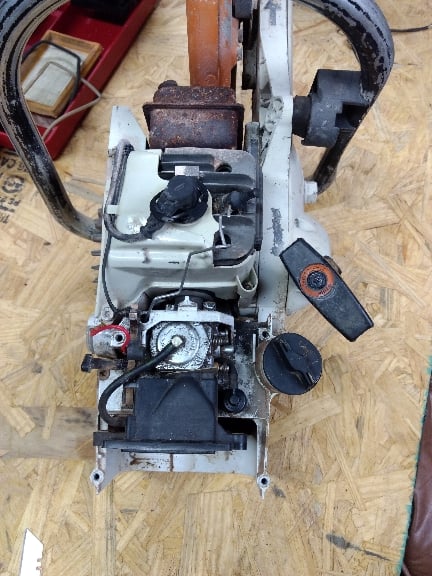

TS 400..
I hate cut off saws...
Was told it wouldn't shut off, actually it would not start or run without some go juice force feeding.
The usual water and trash in fuel, kill wires broken and worn through, carb diaphragms stiff, air filters somewhere under layers of rock dust etc, etc...
You all know the drill.
Cleaned and kitted carb, inspected fuel and impulse lines, new filters ( fuel and all air), new plug fresh fuel....
Won't idle and bogs while trying to rev up, runs better with half choke. Needs full choke and throttle locked to sputter, then half choke to get it going. It runs fine top end.
Passes vac test, my compression gauge bleeds down quickly but it hit 120+psi on a couple pulls, what am I missing here??
If the check valve in the carb was bad wouldn't that make it run rich low end not lean?
Sent from my XT1635-01 using Tapatalk
Edit:
fetched my other compression tester it's 125
The "nozzle" check valve appears to be bad.
I hate cut off saws...
Was told it wouldn't shut off, actually it would not start or run without some go juice force feeding.
The usual water and trash in fuel, kill wires broken and worn through, carb diaphragms stiff, air filters somewhere under layers of rock dust etc, etc...
You all know the drill.
Cleaned and kitted carb, inspected fuel and impulse lines, new filters ( fuel and all air), new plug fresh fuel....
Won't idle and bogs while trying to rev up, runs better with half choke. Needs full choke and throttle locked to sputter, then half choke to get it going. It runs fine top end.
Passes vac test, my compression gauge bleeds down quickly but it hit 120+psi on a couple pulls, what am I missing here??
If the check valve in the carb was bad wouldn't that make it run rich low end not lean?
Sent from my XT1635-01 using Tapatalk
Edit:
fetched my other compression tester it's 125
The "nozzle" check valve appears to be bad.
Last edited:
WillG
Here For The Long Haul!
- Local time
- 10:24 PM
- User ID
- 10686
- Joined
- Oct 10, 2019
- Messages
- 1,730
- Reaction score
- 9,045
- Location
- Norwich CT
Just ran the 031 with 16" bar, LGX chain and 7 pin rim. Night and day difference between the 20" with RM and the 8 pin. Video will be up later in the saw video thread.
Just also received the new bar and chain for the 346 which will be going on this afternoon!
Sent from my E6910 using Tapatalk
Just also received the new bar and chain for the 346 which will be going on this afternoon!
Sent from my E6910 using Tapatalk
tickbitintn
Pinnacle OPE Member
- Local time
- 9:24 PM
- User ID
- 464
- Joined
- Jan 9, 2016
- Messages
- 1,897
- Reaction score
- 8,016
- Location
- middle tn

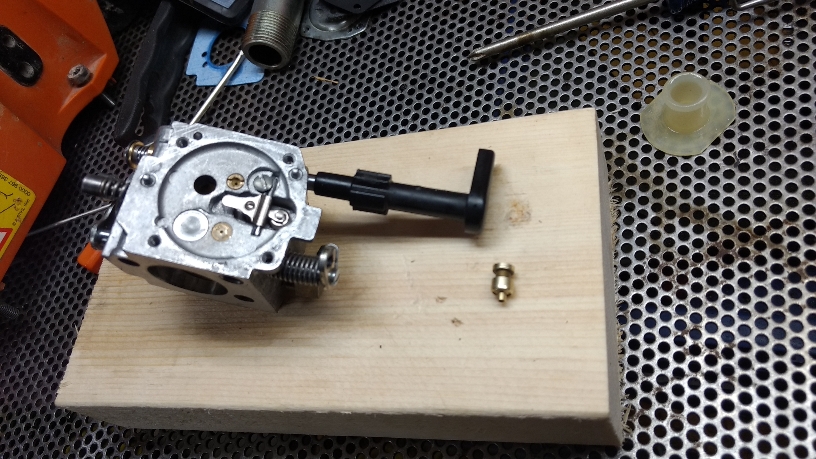

Tilly hs279
Top to bottom
Fixed jet
Nozzle
Check valve????
It has a 4 5 stamped on it
Air passes both ways through it so if it is a check valve it's not checking!!
Ipl's do not show it so not replaceable?
Sent from my XT1635-01 using Tapatalk
Top to bottom
Fixed jet
Nozzle
Check valve????
It has a 4 5 stamped on it
Air passes both ways through it so if it is a check valve it's not checking!!
Ipl's do not show it so not replaceable?
Sent from my XT1635-01 using Tapatalk
WillG
Here For The Long Haul!
- Local time
- 10:24 PM
- User ID
- 10686
- Joined
- Oct 10, 2019
- Messages
- 1,730
- Reaction score
- 9,045
- Location
- Norwich CT

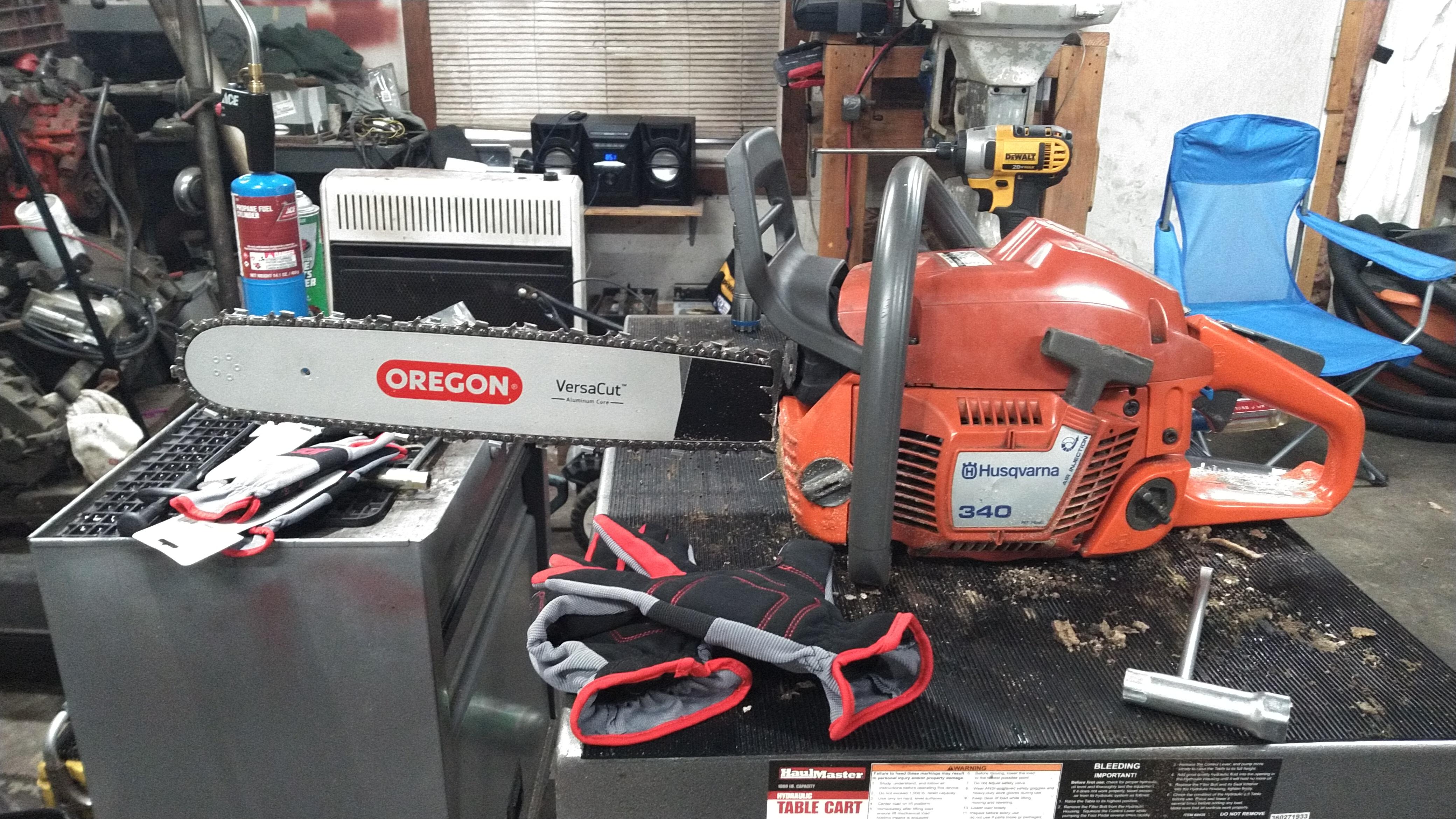

Very happy with how the 346 conversion did with new bar and chain. VersaCut bar and LPX chain.
Sent from my E6910 using Tapatalk
Sent from my E6910 using Tapatalk
tickbitintn
Pinnacle OPE Member
- Local time
- 9:24 PM
- User ID
- 464
- Joined
- Jan 9, 2016
- Messages
- 1,897
- Reaction score
- 8,016
- Location
- middle tn
Fruecrue
certified hand catcher
- Local time
- 10:24 PM
- User ID
- 2417
- Joined
- Jan 4, 2017
- Messages
- 4,391
- Reaction score
- 21,694
- Location
- Alden NY
[/QUOTE]TS 400 was the nozzle.
Thanks Dave for the chat.
@Fruecruehttps://uploads.tapatalk-cdn.com/20200201/cb0efbc03a2bbd7c77fa9803f8b7716d.jpg[/IMG
https://uploads.tapatalk-cdn.com/20200201/d19c316b96919980a1ab6751cbf511f6.jpg
Glad to help, was good to catch up Mark.
M2theB
Pinnacle OPE Member
- Local time
- 10:24 PM
- User ID
- 5789
- Joined
- Apr 2, 2018
- Messages
- 402
- Reaction score
- 1,399
- Location
- Central Mass

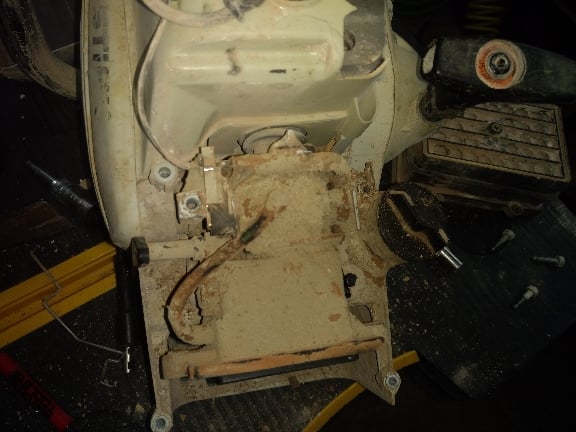

029 nearly tore down before clean up
Sequence on these is such a big part.
WillG
Here For The Long Haul!
- Local time
- 10:24 PM
- User ID
- 10686
- Joined
- Oct 10, 2019
- Messages
- 1,730
- Reaction score
- 9,045
- Location
- Norwich CT
Took pics of a couple I've decided to part with. The 024 sold very quickly to a buddy of mine, even though I listed it as powerhead only. I'm on the hunt for a 357/359 now. Did some cleaning as well.
Sent from my E6910 using Tapatalk
Sent from my E6910 using Tapatalk
Backtroller
Here For The Long Haul!
- Local time
- 9:24 PM
- User ID
- 349
- Joined
- Dec 31, 2015
- Messages
- 2,794
- Reaction score
- 11,344
- Location
- Land of Badgers
It’s cold up here and I had some idle time. I was cleaning saws (I try to keep my equipment looking good) and this is a spare too cover I found. It matches the maxflo fairly good after rit dye. I still have the original. Might not be for everyone but it’s easily switched.
- Local time
- 10:24 PM
- User ID
- 377
- Joined
- Jan 1, 2016
- Messages
- 19,315
- Reaction score
- 110,666
- Location
- Warren Center, PA
Backtroller
Here For The Long Haul!
- Local time
- 9:24 PM
- User ID
- 349
- Joined
- Dec 31, 2015
- Messages
- 2,794
- Reaction score
- 11,344
- Location
- Land of Badgers
026 waiting on a new top end
PA Dan
Mastermind Approved!
- Local time
- 10:24 PM
- User ID
- 306
- Joined
- Dec 28, 2015
- Messages
- 7,302
- Reaction score
- 36,384
- Location
- White Oak PA
Dolmar 5100 trying to remember how all this crap fits back in this saw...[emoji13]
- Local time
- 4:24 AM
- User ID
- 439
- Joined
- Jan 8, 2016
- Messages
- 6,001
- Reaction score
- 40,167
- Location
- Mandal
Slowly moving forward....
this is the way I crank them together with oem service tools, crankcase upside down. No need to check the position of the con rod doing it this way.
this is the way I crank them together with oem service tools, crankcase upside down. No need to check the position of the con rod doing it this way.
- Local time
- 10:24 PM
- User ID
- 377
- Joined
- Jan 1, 2016
- Messages
- 19,315
- Reaction score
- 110,666
- Location
- Warren Center, PA
Good reason to buy a longer bar right??
WillG
Here For The Long Haul!
- Local time
- 10:24 PM
- User ID
- 10686
- Joined
- Oct 10, 2019
- Messages
- 1,730
- Reaction score
- 9,045
- Location
- Norwich CT
Exactly why I bought a new bar and chain for my 346. The bar and chain on it wasn't mine and I wanted the same bar and chain that was on it.
Sent from my E6910 using Tapatalk
