Stihl 036 Carb options

[huskihl]

Kevin, this looks like a tough conversion. I may be able to weld on tabs or flip shafts.

One things for sure, the 036 boot is very restrictive. I'll post a pic later of its outlet compared to that of an 038.

I'd say it has smaller cross sectional area than the carb bore.

The boot swap alone should help the saw.

I'll go look at carb #'s. It was like what stumpy did. Had to change choke shaft



[huskihl]

I'll go look at carb #'s. It was like what stumpy did. Had to change choke shaft

I'll head out in a few and see what I have that'll fit in an 036. I can't remember the shaft and bolt orientation



[David Young]

Al what's the Venturi now? What carbs came on the zama and walbro what was the walbro model number?



[drf256]

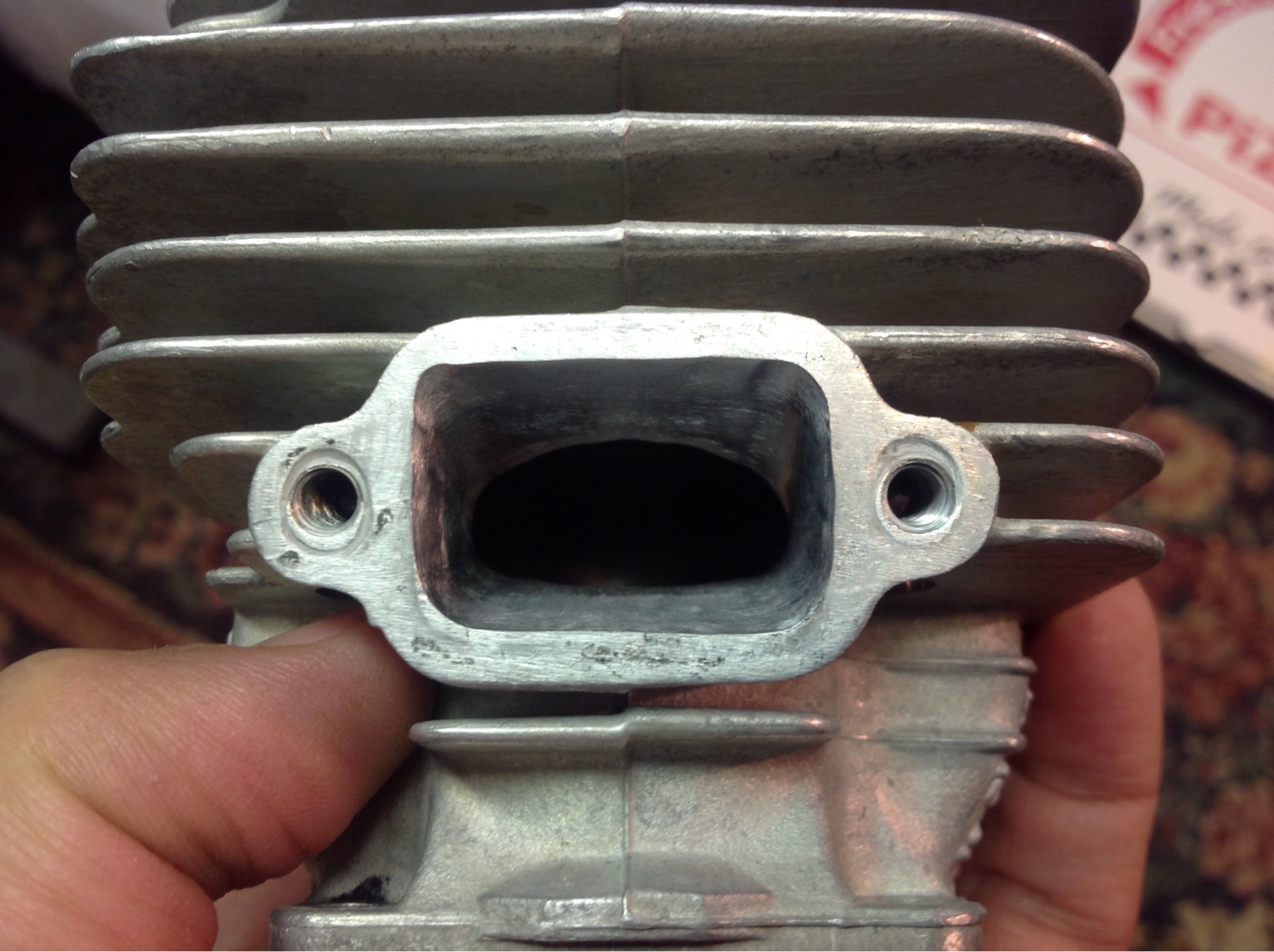

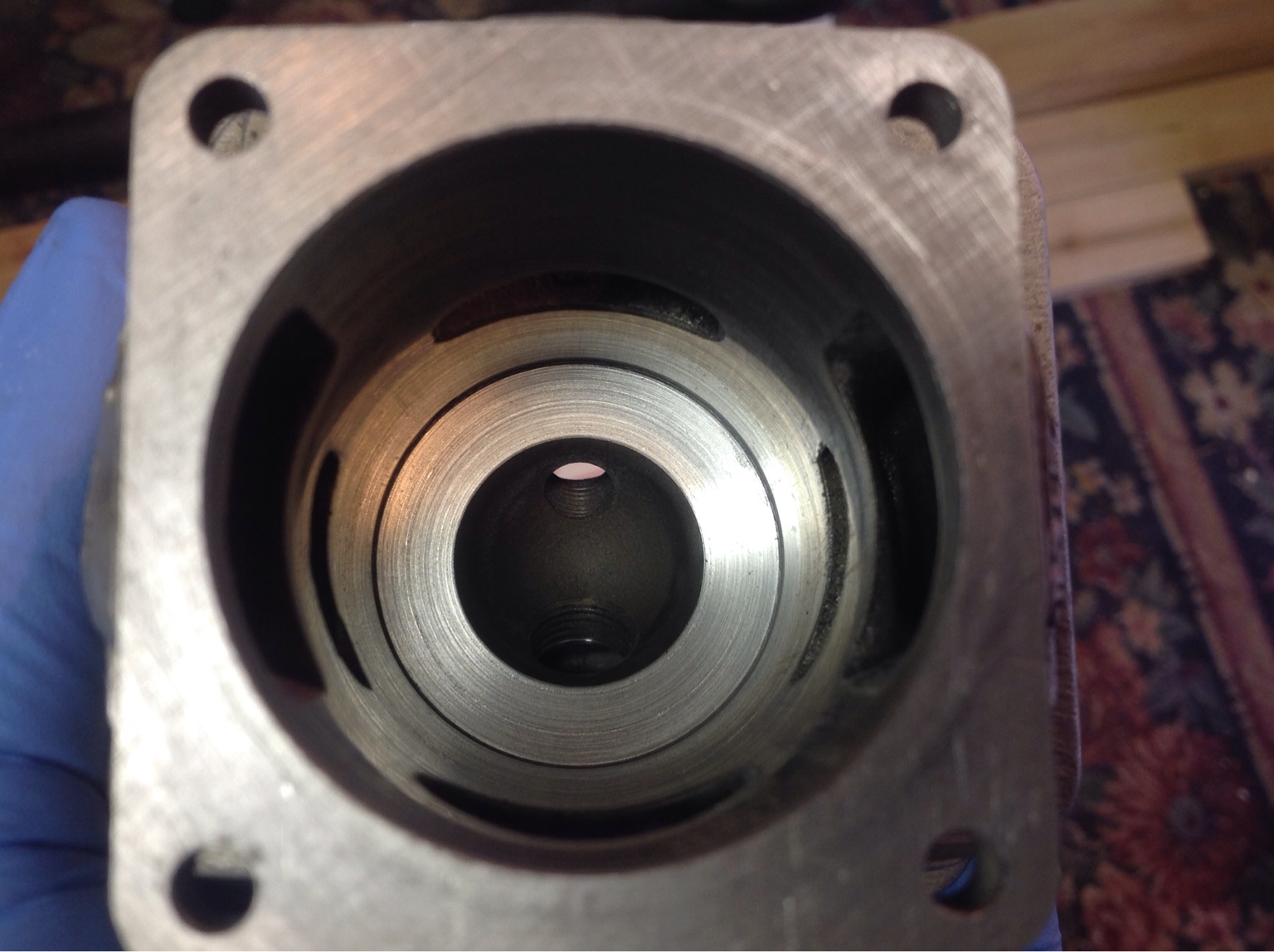

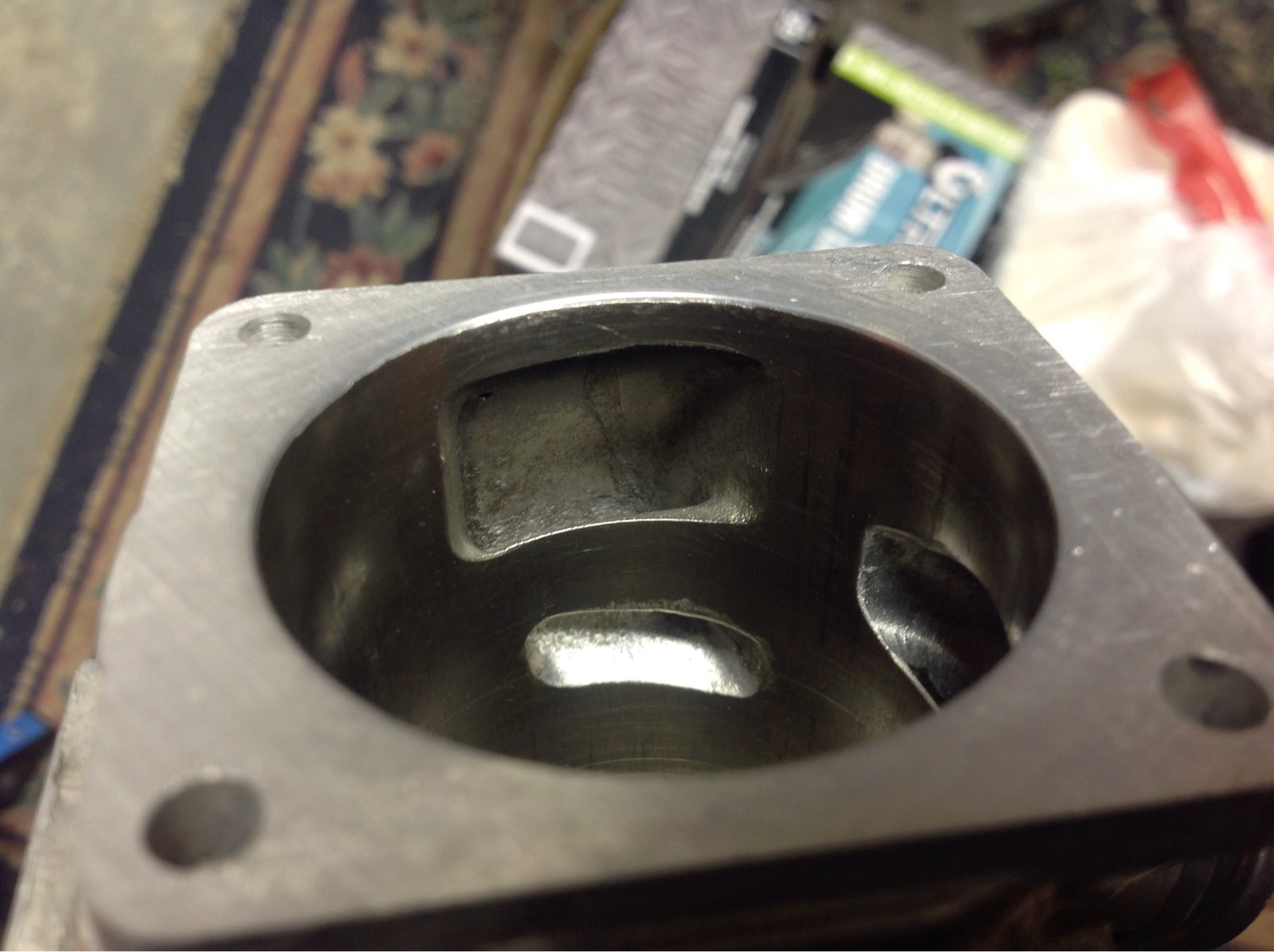

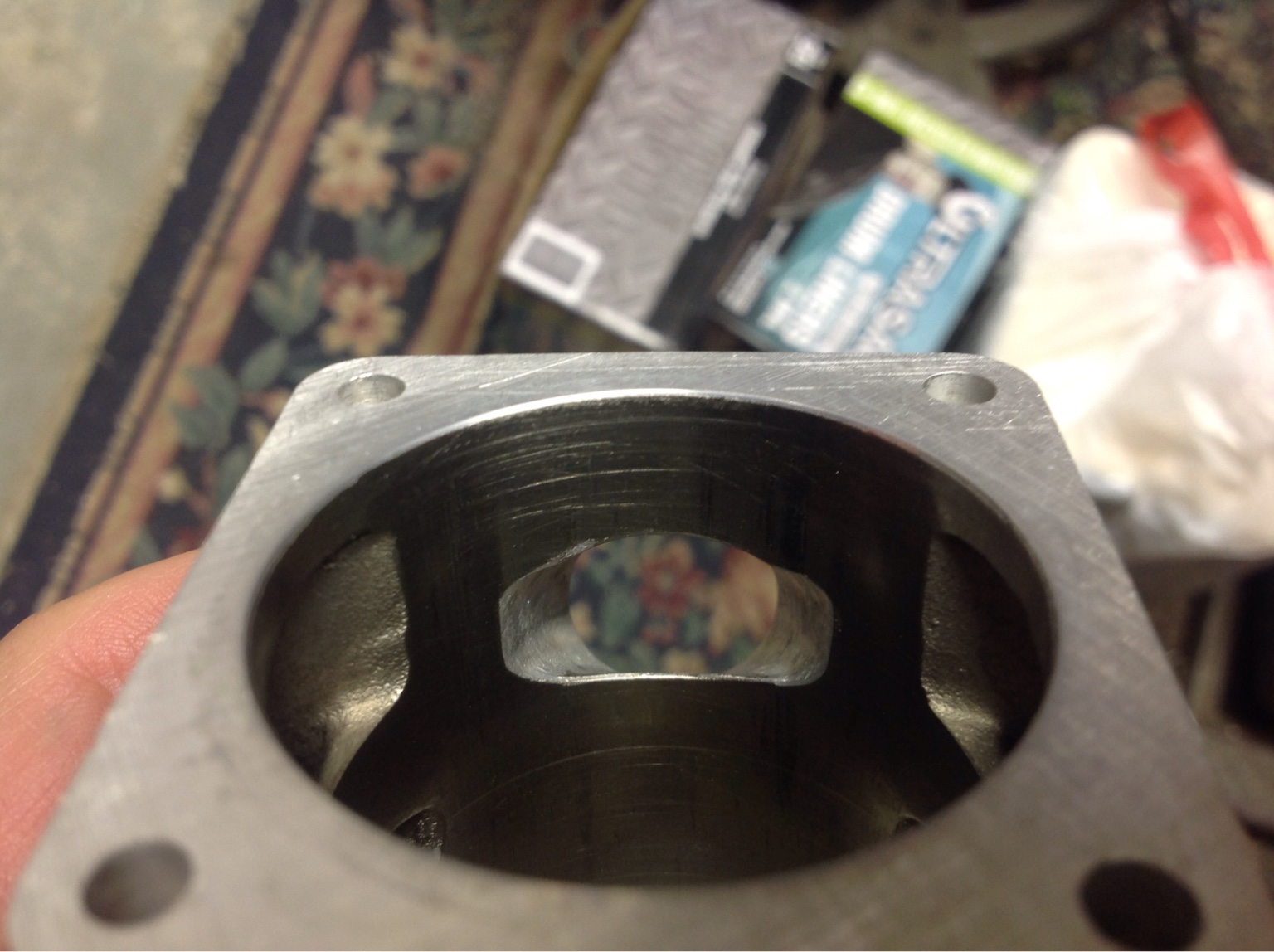

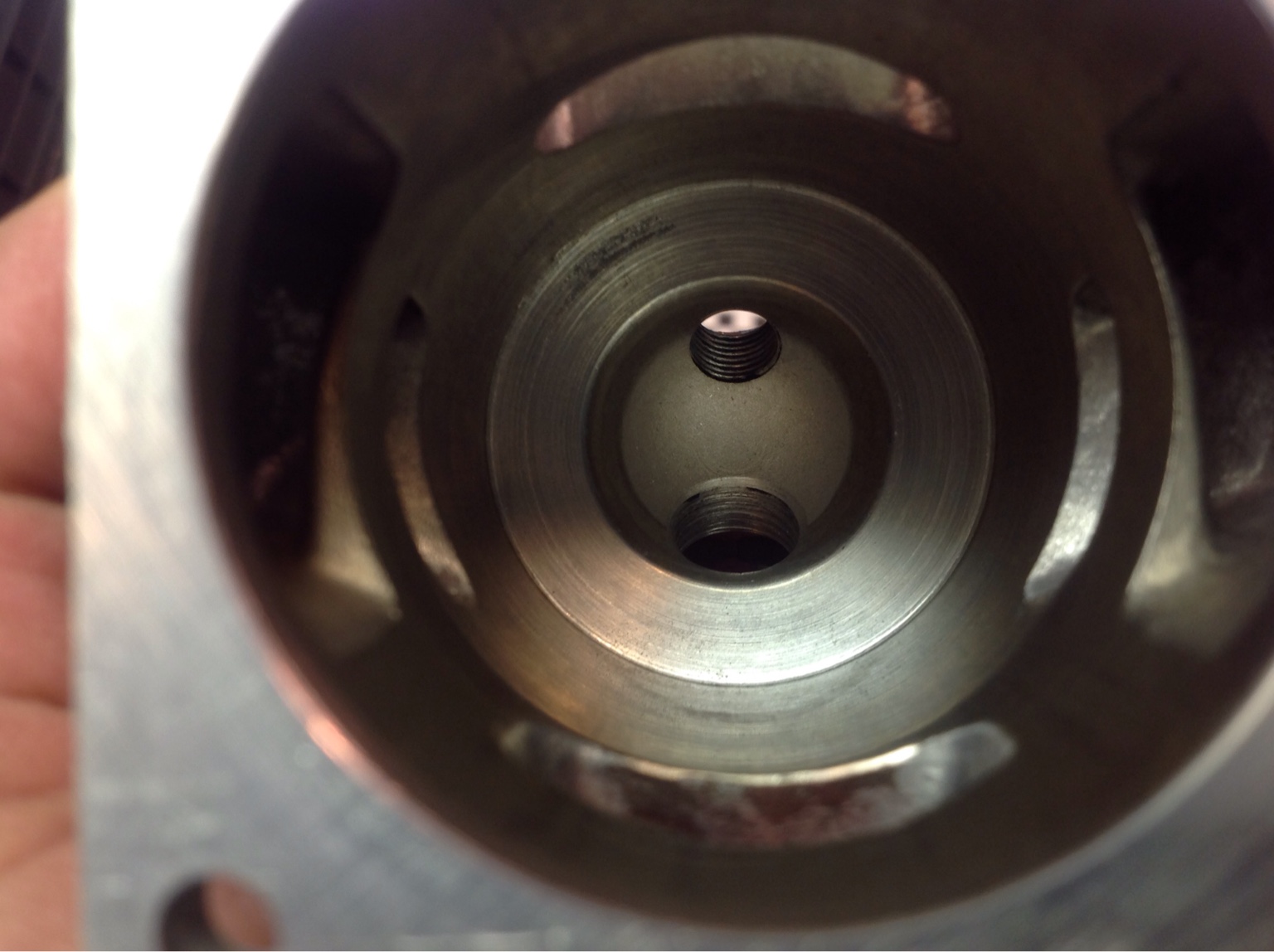

I'm porting it now. I'll get the Venturi numbers for you in a bit. Metal dust phase, everything in bags.



[drf256]

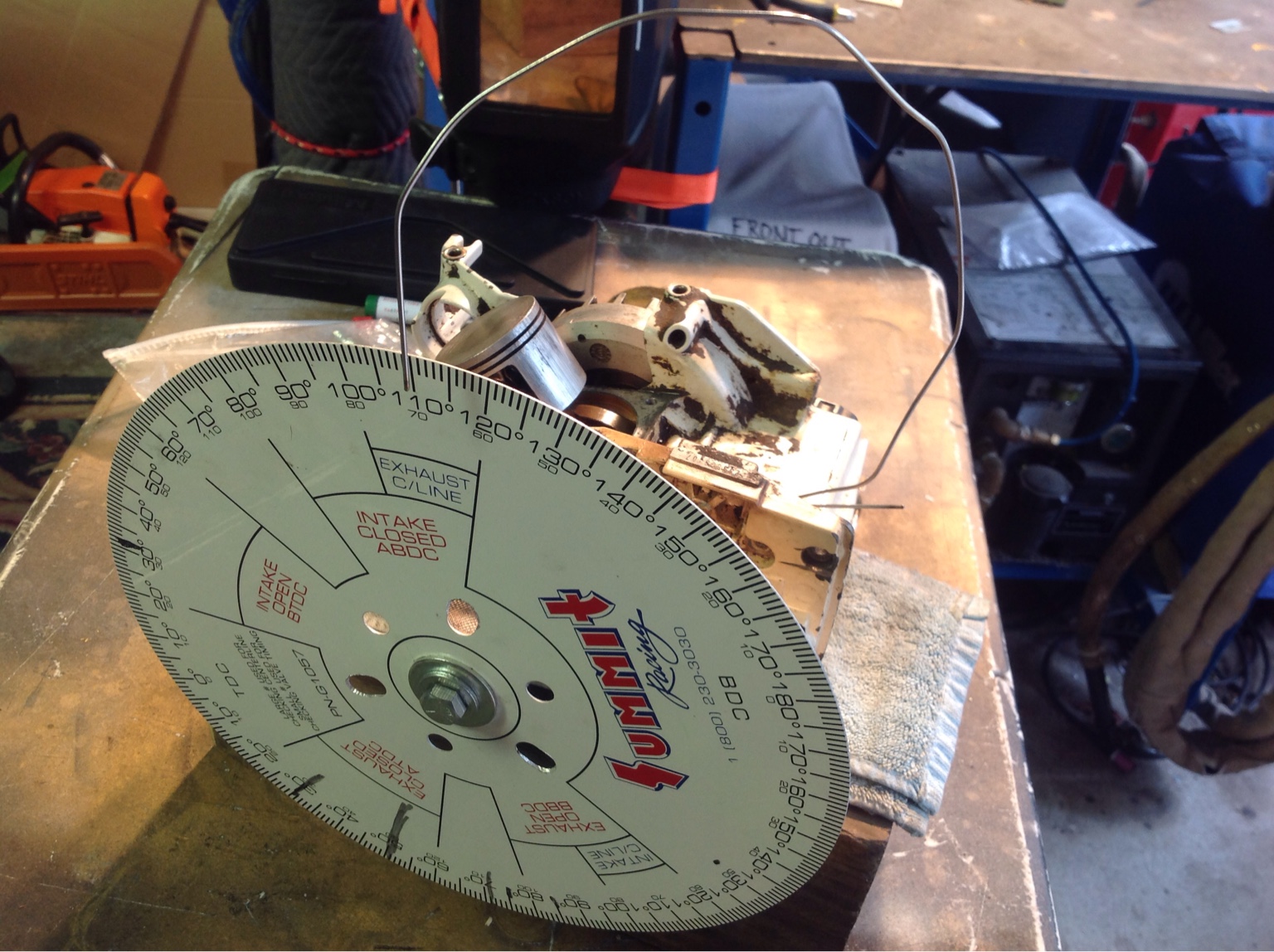

.034 from base, .040 from band. Sitting at 107.5/130/84 right now.

Sent from my iPad using Tapatalk



[drf256]

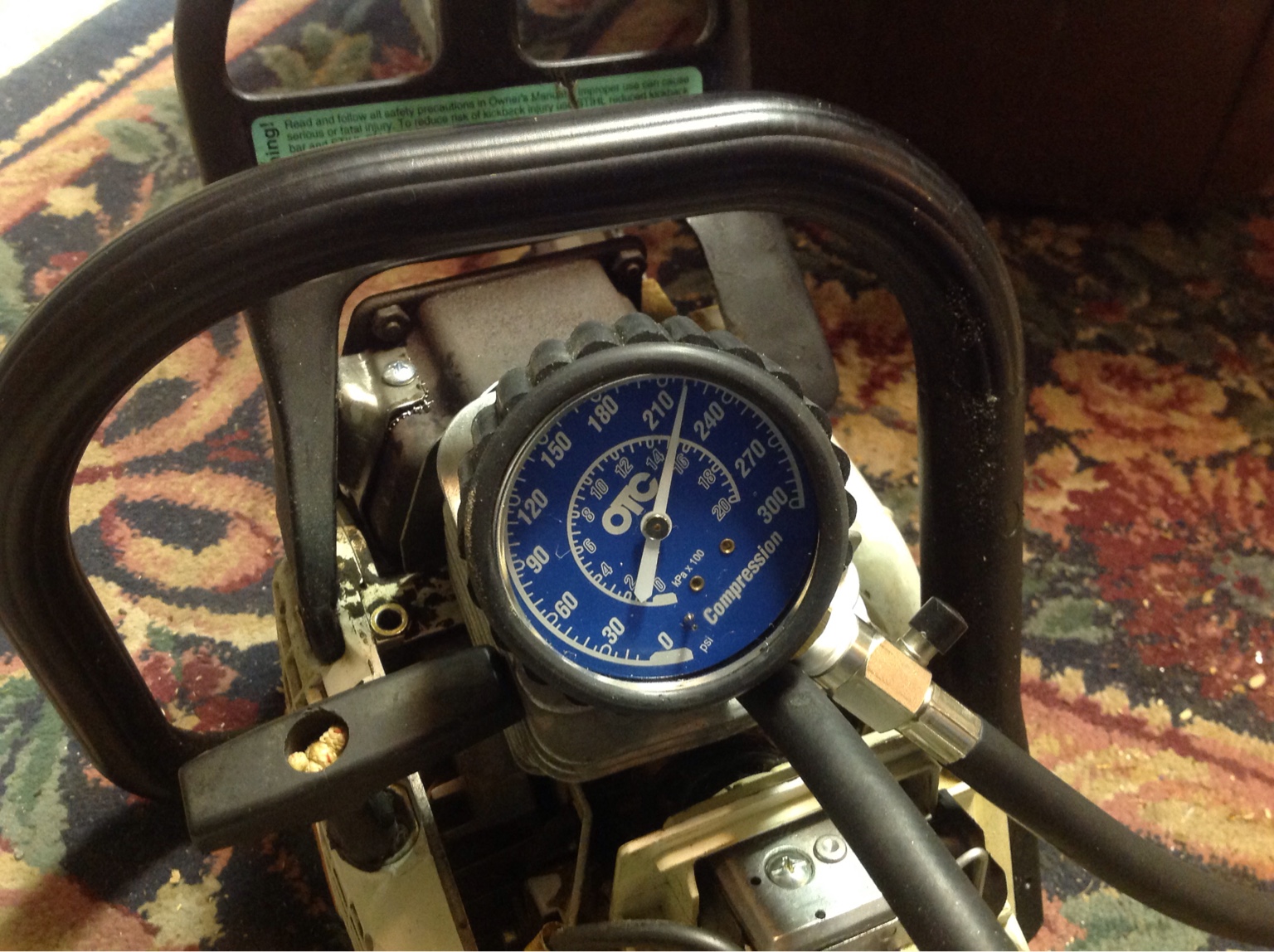

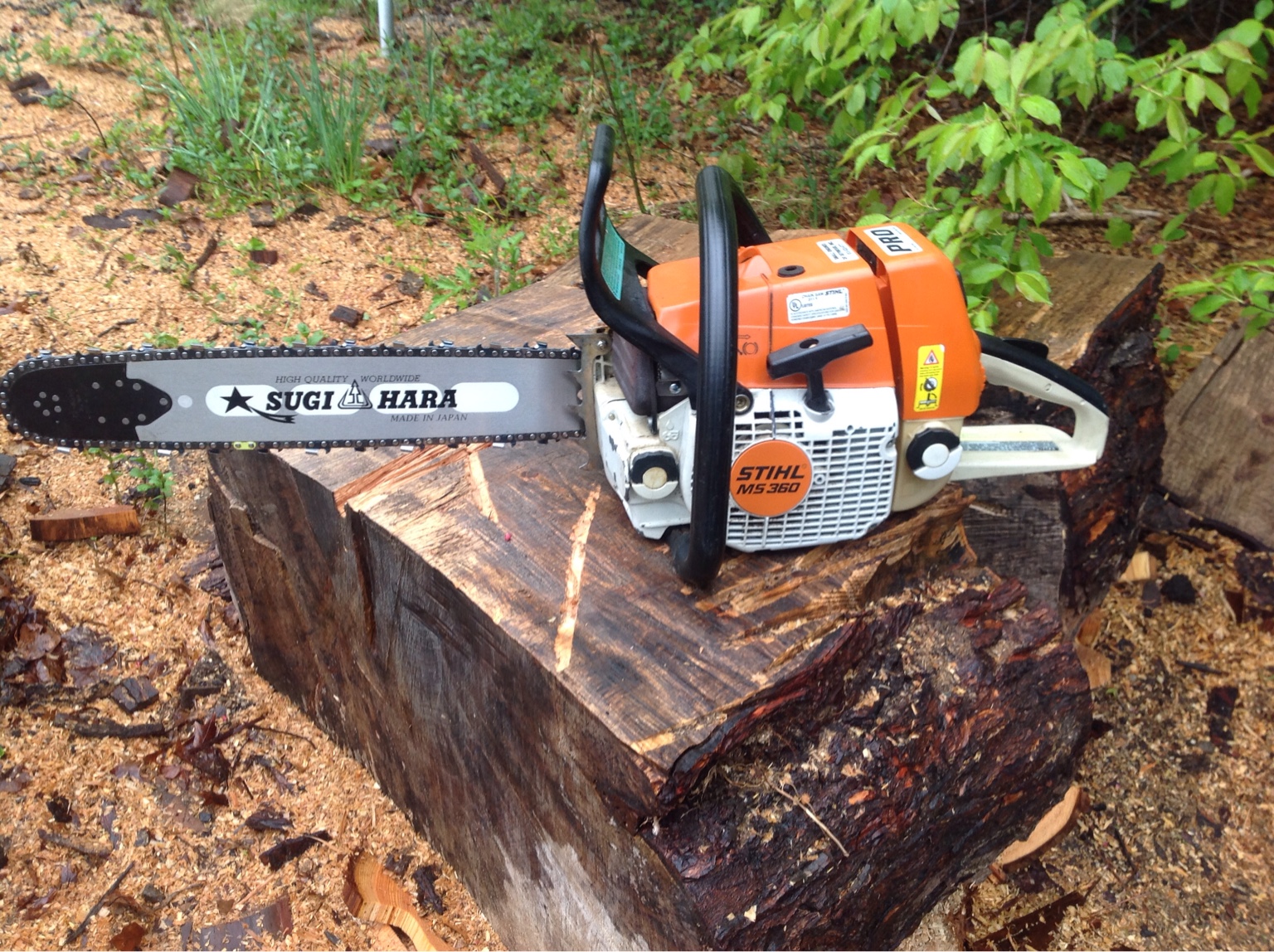

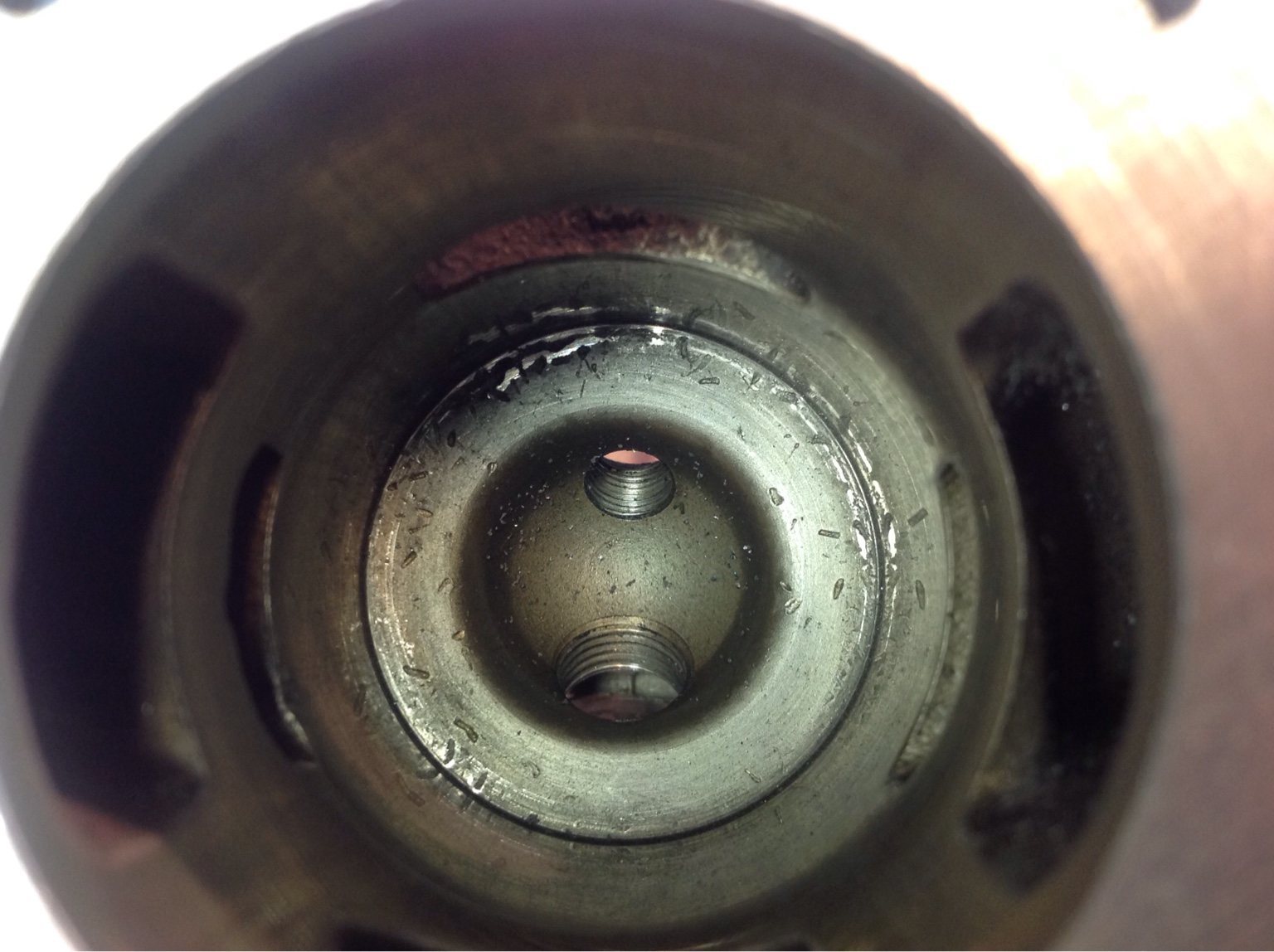

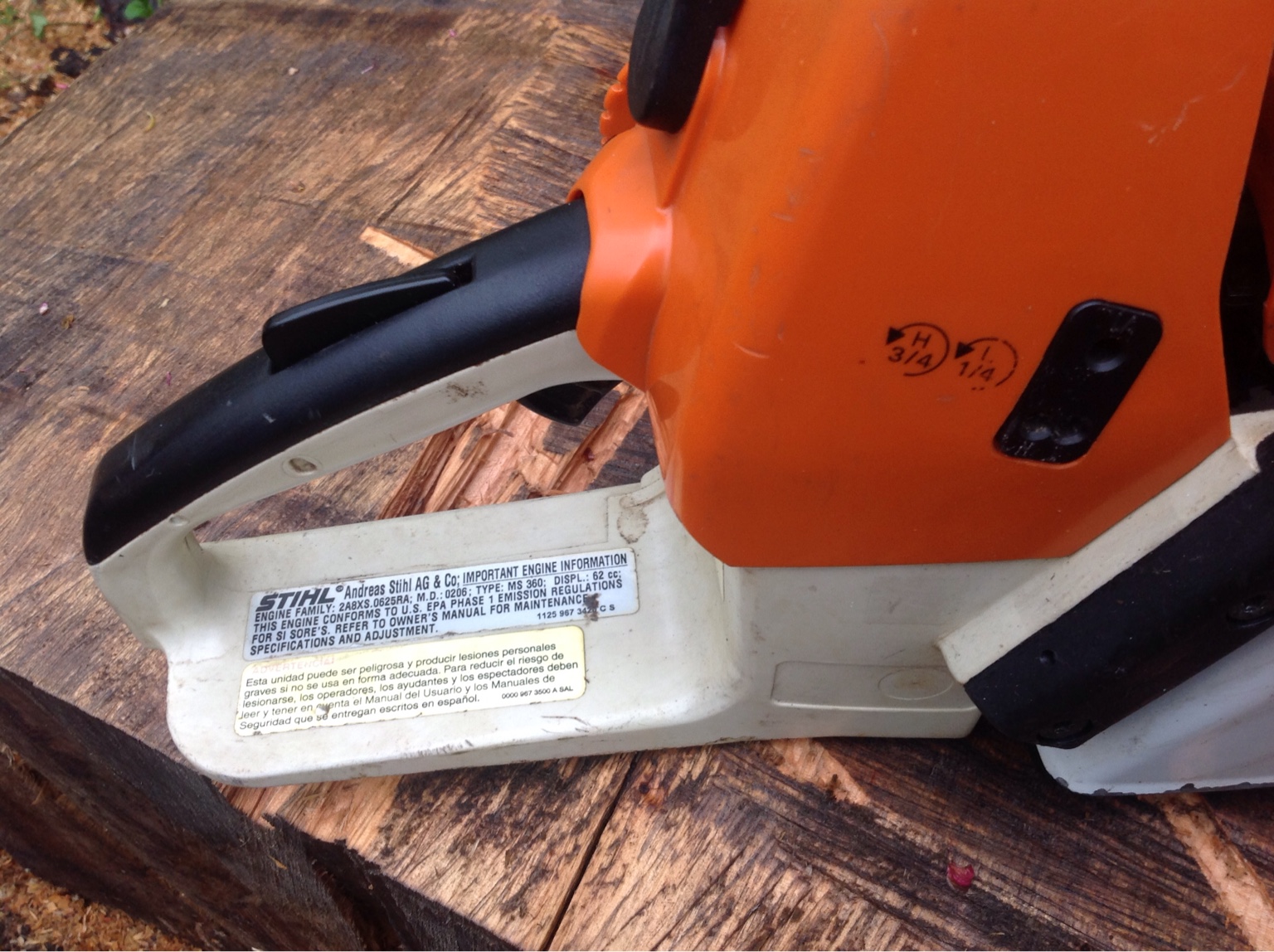

My builder case

Sent from my iPad using Tapatalk



[huskihl]

I looked. I don't have any other carbs for an 036. 361 is quite different



[Backtroller]

Looks nice. Can't wait to see how this one turns out!



[drf256]

Throttle plate 19mm.

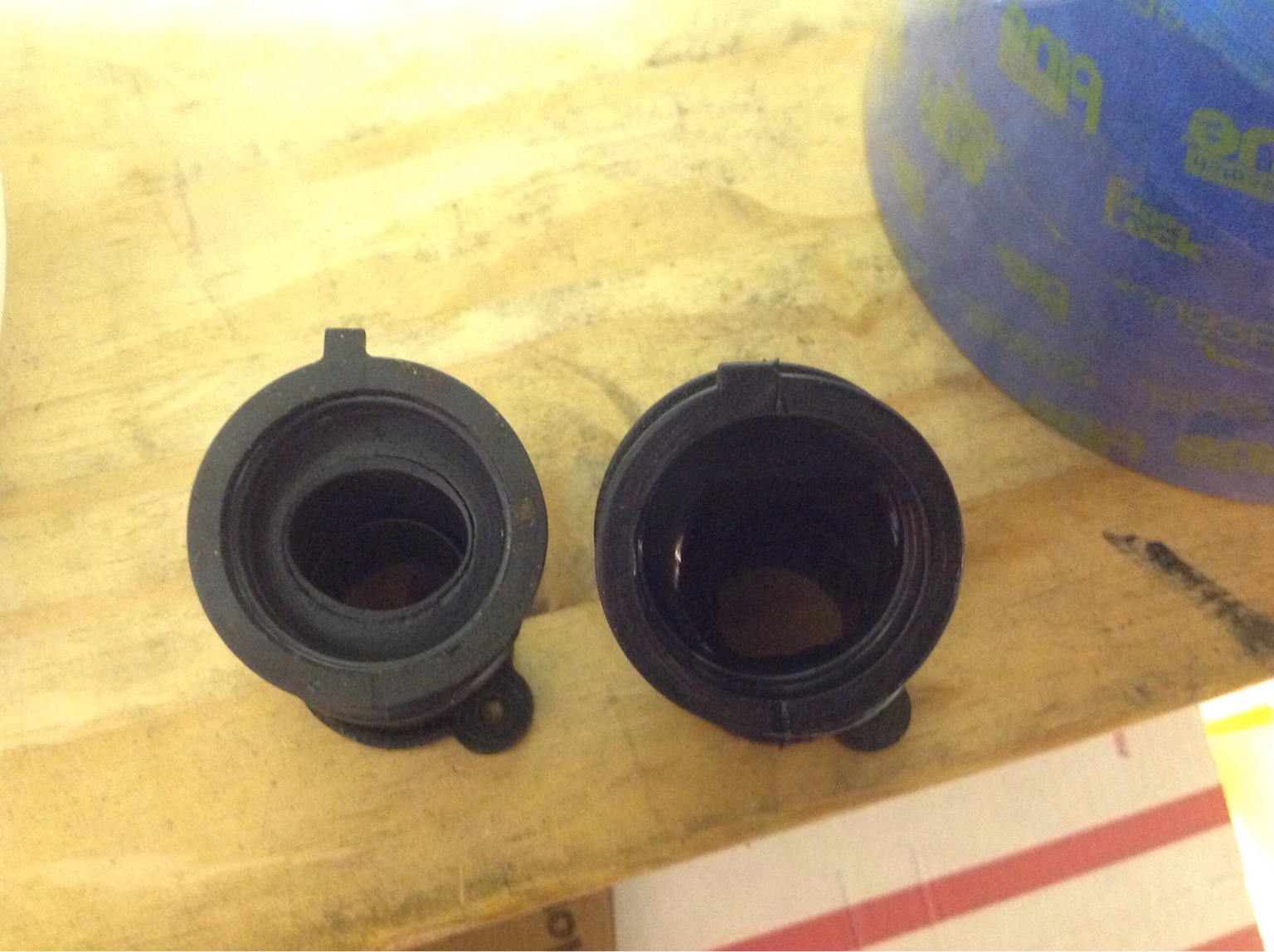

Opening in intake boot 14mm X 18.5mm. Going with the 038 boot on the right.

Sent from my iPad using Tapatalk



[paragonbuilder]

Wow! That is a big difference in size of those intake boots...
Your grinding looks great as usual!


Sent from my iPhone using Tapatalk



[drf256]

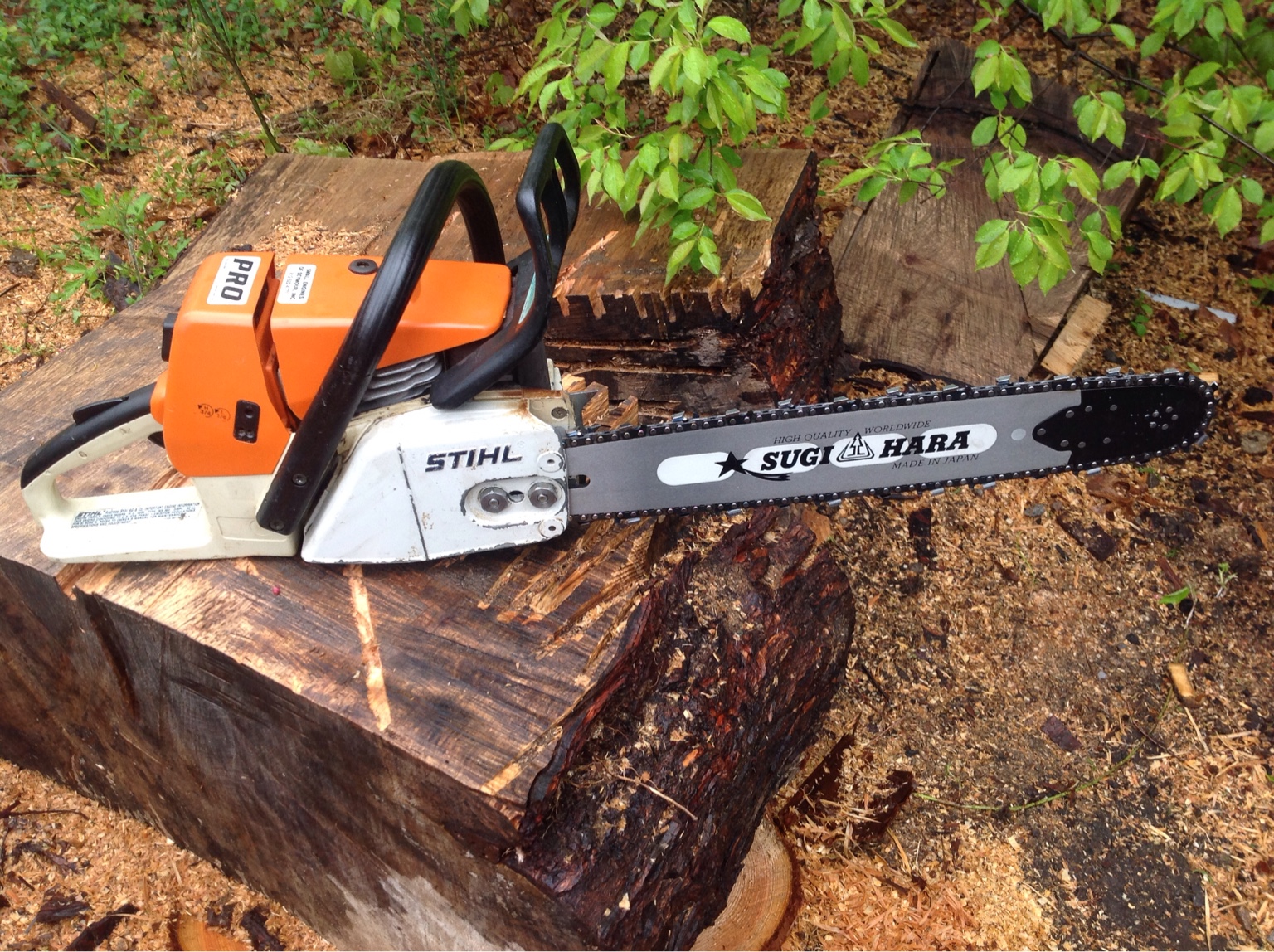

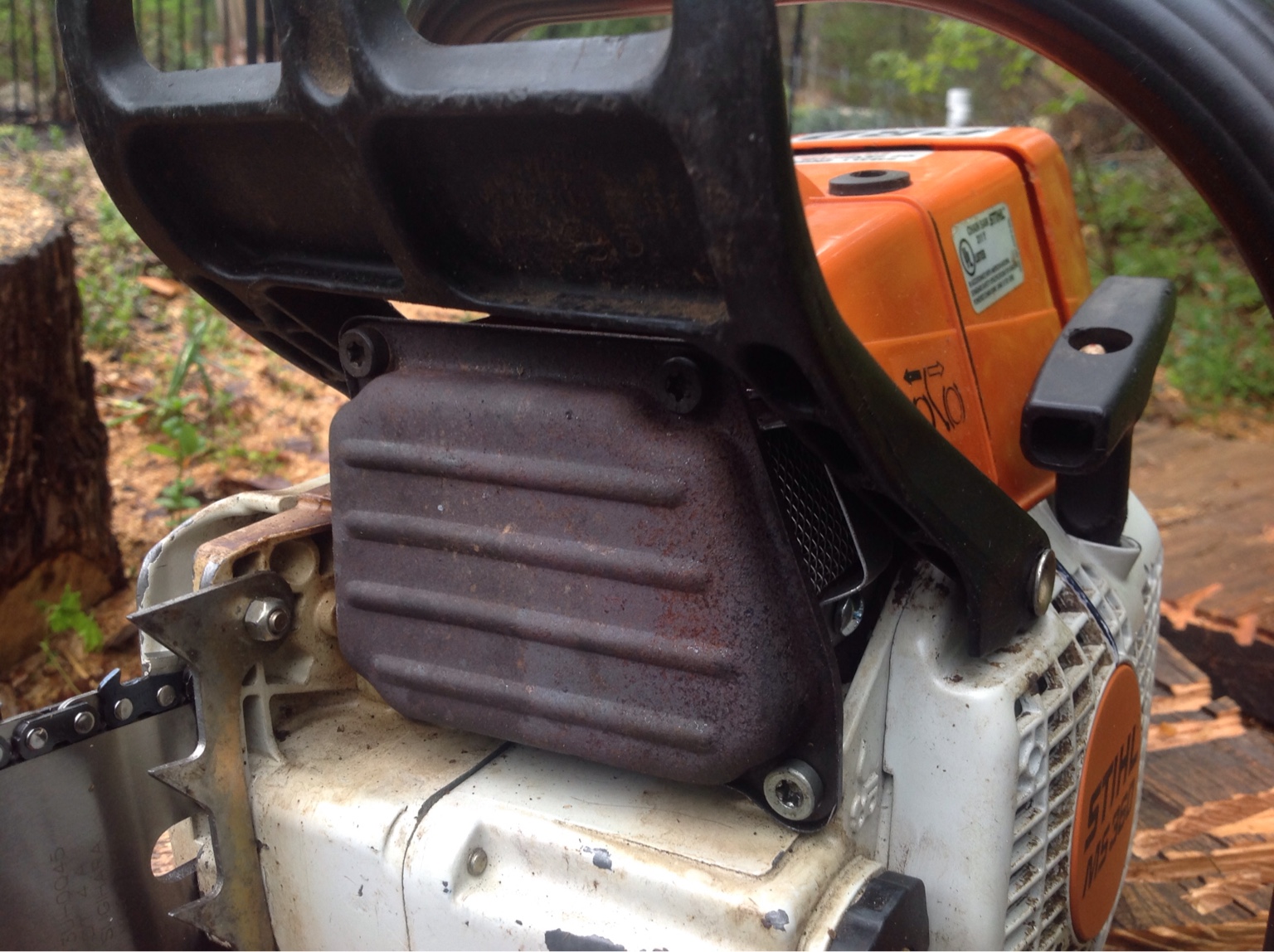

It's done. So snotty here that I haven't painted the muffler yet.

Here's a video of some very unsafe cutting. Was the only wood I had and I had a 10 minute dinner deadline. That's when bad things happen.

I will likely sell this saw. This has progressively opening transfers. I redid what the factory was like.

Sent from my iPad using Tapatalk



[drf256]

Used the 038 boot

Sent from my iPad using Tapatalk



[huskihl]

Used the 038 boot

Sent from my iPad using Tapatalk

038 boot and stock 036 carb? Zama?



[drf256]

And here's the unsafe video. It's really fat at 14,000 here for its maiden voyage. It was 4 stroking happily at 15,600, but I wasn't sure if it would lean out from all the compression and advance in the cut. I was in a rush and didn't feel like toasting the piston

Sent from my iPad using Tapatalk



[drf256]

038 boot and stock 036 carb? Zama?

Yes



[huskihl]

Looks like good gains can be had just in the boot after porting. Thanks for sharing. She runs good



[angelo c]

Can I be the first Jackwagon to offer you $275 fer it ?

nice work....as always...



[drf256]

Looks like good gains can be had just in the boot after porting. Thanks for sharing. She runs good

Yes. It's clear that the stock boot is very restrictive.



[David Young]

Looks good

What you use for numbers.



[drf256]

102/118-122/84

No bridges. Didn't clip the lower tranny edges

I copied the factory angle.
