It's common problem for the primmer knob to wear a hole in that type of shroud so it pops thru .
An easy fix I always do is a piece of sheet metal , drill hole large enough so top of knob fits and pop rivet metal on underside of shroud .
Strip of metal just wide enough and 2 rivets to hold it .


jake wells

no longer here
Local time
9:01 AM
User ID
294
Joined
Dec 28, 2015
Messages
8,302
Reaction score
19,498
Location
ky
My 1980 Lawn Boy/OMC built Ryan 20'' pusher it has a 3 hp vertical shaft briggs with the oddball vertical starter.
20160411_161858.jpg 20160411_162106.jpg
20160411_162135.jpg 20160411_162213.jpg


Fishnuts2

Here For The Long Haul!
GoldMember
Local time
9:01 AM
User ID
284
Joined
Dec 28, 2015
Messages
1,050
Reaction score
6,166
Location
SE MN
Country flag
My 1980 Lawn Boy/OMC built Ryan 20'' pusher it has a 3 hp vertical shaft briggs with the oddball vertical starter.
View attachment 18679 View attachment 18680
View attachment 18681 View attachment 18682
View attachment 18683
You can't say that OMC didn't know better when they offered these for sale!

I imagine that they thought they should have models to compete with MTD and others sold in the big box stores. LawnBoy was always a Premium, top shelf product.


jake wells

no longer here
Local time
9:01 AM
User ID
294
Joined
Dec 28, 2015
Messages
8,302
Reaction score
19,498
Location
ky
You can't say that OMC didn't know better when they offered these for sale!

I imagine that they thought they should have models to compete with MTD and others sold in the big box stores. LawnBoy was always a Premium, top shelf product.
lawn boy was top shelf till toro got involved.


Locust Cutter

Air Force Redneck
Local time
9:01 AM
User ID
387
Joined
Jan 3, 2016
Messages
2,288
Reaction score
7,661
Location
KS
View attachment 18590
Cleaned her up today. Youngest son painted up some car parts over the winter. Used it as a spray bench. Whole top was black.
I may be buying one very similar to yours soon. I may need to locate a side discharge plate for it though as the current owner has the rear (Snapper-style) bagger setup and mulching plate for it, but can't recall if he has the discharge plate or not. I could always modify the mulching plate but would rather have all 3 capabilities as this mower will actually get used. A lot.


Locust Cutter

Air Force Redneck
Local time
9:01 AM
User ID
387
Joined
Jan 3, 2016
Messages
2,288
Reaction score
7,661
Location
KS
Growing up I ran the wheels of of two old lawn boys and a napper mowing yards for cash. I had a green to[ and a green and white top, both via my Grandfather. They were loud and they vibrated but the cut like no-one's business.


Fishnuts2

Here For The Long Haul!
GoldMember
Local time
9:01 AM
User ID
284
Joined
Dec 28, 2015
Messages
1,050
Reaction score
6,166
Location
SE MN
Country flag
Growing up I ran the wheels of of two old lawn boys and a napper mowing yards for cash. I had a green to[ and a green and white top, both via my Grandfather. They were loud and they vibrated but the cut like no-one's business.
They indeed will vibrate if their blades are not balanced when sharpened. I learned the hard way... it also has a bad effect on the lower crank seal.


Locust Cutter

Air Force Redneck
Local time
9:01 AM
User ID
387
Joined
Jan 3, 2016
Messages
2,288
Reaction score
7,661
Location
KS
I would imagine. I checked them on a nail as best I could, but didn't have the best balancer...


Nitehawk55

Pinnacle OPE Member
Local time
10:01 AM
User ID
40
Joined
Dec 20, 2015
Messages
800
Reaction score
2,129
Location
Ontario
I always balance with a screwdriver , if it sets level it's good , if one side dips take a bit more off till it's level . That's all you need to do , you don't need no special tool .

Lawn Boy also need the blade timed for the engine stroke as well . Example to visualize ....standing at the handle looking at a Brick Top model with the cyl pointing to the right at 3 o'clock . With the piston at TDC , the blade should be at 12 and 6 o'clock .


Locust Cutter

Air Force Redneck
Local time
9:01 AM
User ID
387
Joined
Jan 3, 2016
Messages
2,288
Reaction score
7,661
Location
KS
I'll have to see what the timing marks are for a 6.5hp Silver series. It runs VERY well, with only a hint of surging. I will clean the exhaust and carb screws soon and see where that gets me. Starts on the 1st or second pull though after 2 primes.


Nitehawk55

Pinnacle OPE Member
Local time
10:01 AM
User ID
40
Joined
Dec 20, 2015
Messages
800
Reaction score
2,129
Location
Ontario
If the surging becomes an issue I found a real good fix for that where you change the jet and do a minor mod to the hole in the throttle plate .
Now if I could find that article again !!


Fishnuts2

Here For The Long Haul!
GoldMember
Local time
9:01 AM
User ID
284
Joined
Dec 28, 2015
Messages
1,050
Reaction score
6,166
Location
SE MN
Country flag

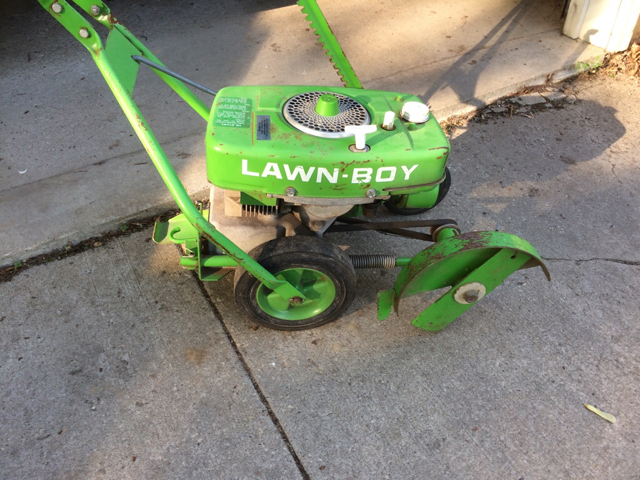

I found this at a flea market. I believe the motor will drop right into one of my green decks. Low hours and in great shape. Even the wife thought it was a good deal![emoji106][emoji1]



Sent from my iPhone using Tapatalk


sawfun

Pinnacle OPE Member
Local time
7:01 AM
User ID
1076
Joined
Mar 24, 2016
Messages
1,181
Reaction score
3,770
Location
Portland Oregon
Country flag
Man, I'd keep it that way and use it. That has to be rare these days. But you probably can use a mower a lot more than edger.


Fishnuts2

Here For The Long Haul!
GoldMember
Local time
9:01 AM
User ID
284
Joined
Dec 28, 2015
Messages
1,050
Reaction score
6,166
Location
SE MN
Country flag
Thanks for the advice. My mower runs great and I don't need another one so I'll keep this as an edger. Now if I only had more than 10 ft. Of sidewalk.........[emoji39][emoji39]


Sent from my iPhone using Tapatalk


jake wells

no longer here
Local time
9:01 AM
User ID
294
Joined
Dec 28, 2015
Messages
8,302
Reaction score
19,498
Location
ky
I found this at a flea market. I believe the motor will drop right into one of my green decks. Low hours and in great shape. Even the wife thought it was a good deal![emoji106][emoji1]



Sent from my iPhone using Tapatalk
worth big coin on ebay.


Nitehawk55

Pinnacle OPE Member
Local time
10:01 AM
User ID
40
Joined
Dec 20, 2015
Messages
800
Reaction score
2,129
Location
Ontario
I found this at a flea market. I believe the motor will drop right into one of my green decks. Low hours and in great shape. Even the wife thought it was a good deal![emoji106][emoji1]



Sent from my iPhone using Tapatalk

You have to marvel at the simplicity of these machines .
Fishnuts , can you get a measurement of the length of the crankshaft ? A pic of the crank where it comes out the bottom of the case would help .Also , is the fuel tank metal or plastic ?

I put that one new bricktop D 501 engine on a deck a month ago and it's on it's 4th tank of fuel , damn it runs nice ! Been thinking about installing the 2nd new one on a deck but seems a shame to take it out of the box where it has resided since the early 70's .


Fishnuts2

Here For The Long Haul!
GoldMember
Local time
9:01 AM
User ID
284
Joined
Dec 28, 2015
Messages
1,050
Reaction score
6,166
Location
SE MN
Country flag
The fuel tank is metal. I'll go out and try to get you a pic of the bottom of the case.


Sent from my iPhone using Tapatalk
