High Quality Chainsaw Bars Husqvarna Toys Hockfire Saws

What's on your bench?

Bigmac

Mastermind Approved!
Local time
10:51 AM
User ID
5937
Joined
Apr 19, 2018
Messages
5,607
Reaction score
39,006
Location
Oregon
Country flag
It does look like the intake valve maybe kissed the piston. Small mark on the intake edge. May have to pop them out quick too and make sure ther not bent.
It was the exhaust rocker arm that broke.


Sent from my SM-G950W using Tapatalk
Looks like the exhaust may have hit too, I put solvent in the port to check for leaks at the valve seat, I would check both they need to hold solvent and you should be able to blow compressed air at the valves and not see bubbles in the port, I wound bet the intake is bent and probably the exhaust too

just as an FYI I test brand new heads and machine shop fresh head too, it amazing how many of them leak!!


Bigmac

Mastermind Approved!
Local time
10:51 AM
User ID
5937
Joined
Apr 19, 2018
Messages
5,607
Reaction score
39,006
Location
Oregon
Country flag
Yes, thanks.

Would you care to post timing numbers?
Finish it up and double checked the numbers 187° exhaust and 126° transfers, and .043 squish, it’s a mid-range port, should have good bottom end and decent over-rev, I like up to 190° and 130° max for and all around powerband. He is heavier and rides tight trails, I think this will smoke most cr500’s and be lighter, it going int an 02 cr chassis

got the piston mods done, I drill holes to lube the bridge and edge of the exhaust port between the sub exhausts, the piston comes with marks to drill, but the port is too wide to work with there index makes so I put them were needed, I also modify the boost window to make it more directional. Also put oil holes inline with the ring stops, I notice wear there on these big bores so I add them8FF74D3F-F5A9-4055-BEE0-772CB1C3BEB4.jpeg2C3F4C87-FD62-4BEB-95AE-BEE12D2114AD.jpeghere is a stock piston next to the big bore5615D632-E1C8-4178-90CD-8FF653943321.jpeg

Stock and big bore jugs97A98D8E-00E0-4B40-84E1-49B1DF4E7EE6.jpeg 42B18C07-612F-44BA-BC6F-FEB34EB717EC.jpeg
The big bore cylinder is o-ringed and has replaceable domes in the head


merc_man

merc_man
Local time
1:51 PM
User ID
933
Joined
Feb 24, 2016
Messages
4,982
Reaction score
21,725
Location
southern ontario
Country flag
Looks like the exhaust may have hit too, I put solvent in the port to check for leaks at the valve seat, I would check both they need to hold solvent and you should be able to blow compressed air at the valves and not see bubbles in the port, I wound bet the intake is bent and probably the exhaust too

just as an FYI I test brand new heads and machine shop fresh head too, it amazing how many of them leak!!
I will check the valves tomorow with solvent and a little air For leaks. I may need some more help from you if you dont mind giving some more advice.

Sent from my SM-G950W using Tapatalk


tickbitintn

Pinnacle OPE Member
Local time
12:51 PM
User ID
464
Joined
Jan 9, 2016
Messages
1,897
Reaction score
8,016
Location
middle tn
Country flag
Finish it up and double checked the numbers 187° exhaust and 126° transfers, and .043 squish, it’s a mid-range port, should have good bottom end and decent over-rev, I like up to 190° and 130° max for and all around powerband. He is heavier and rides tight trails, I think this will smoke most cr500’s and be lighter, it going int an 02 cr chassis

got the piston mods done, I drill holes to lube the bridge and edge of the exhaust port between the sub exhausts, the piston comes with marks to drill, but the port is too wide to work with there index makes so I put them were needed, I also modify the boost window to make it more directional. Also put oil holes inline with the ring stops, I notice wear there on these big bores so I add themView attachment 210561View attachment 210562here is a stock piston next to the big boreView attachment 210563

Stock and big bore jugsView attachment 210564 View attachment 210565
The big bore cylinder is o-ringed and has replaceable domes in the head
2 stroke porn!!!!!

Nice stuff. [emoji106]

Sent from my XT1635-01 using Tapatalk


Dub11

Saw R skeery
GoldMember
Local time
12:51 PM
User ID
2014
Joined
Oct 21, 2016
Messages
34,438
Reaction score
146,061
Location
Kansas
Country flag

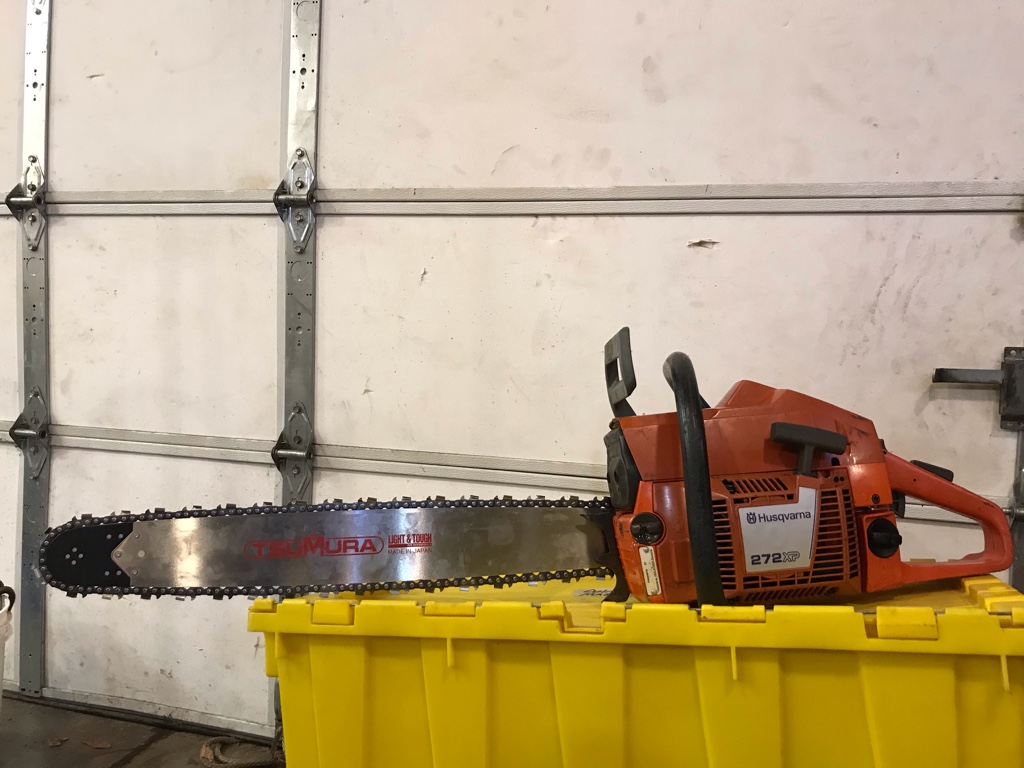

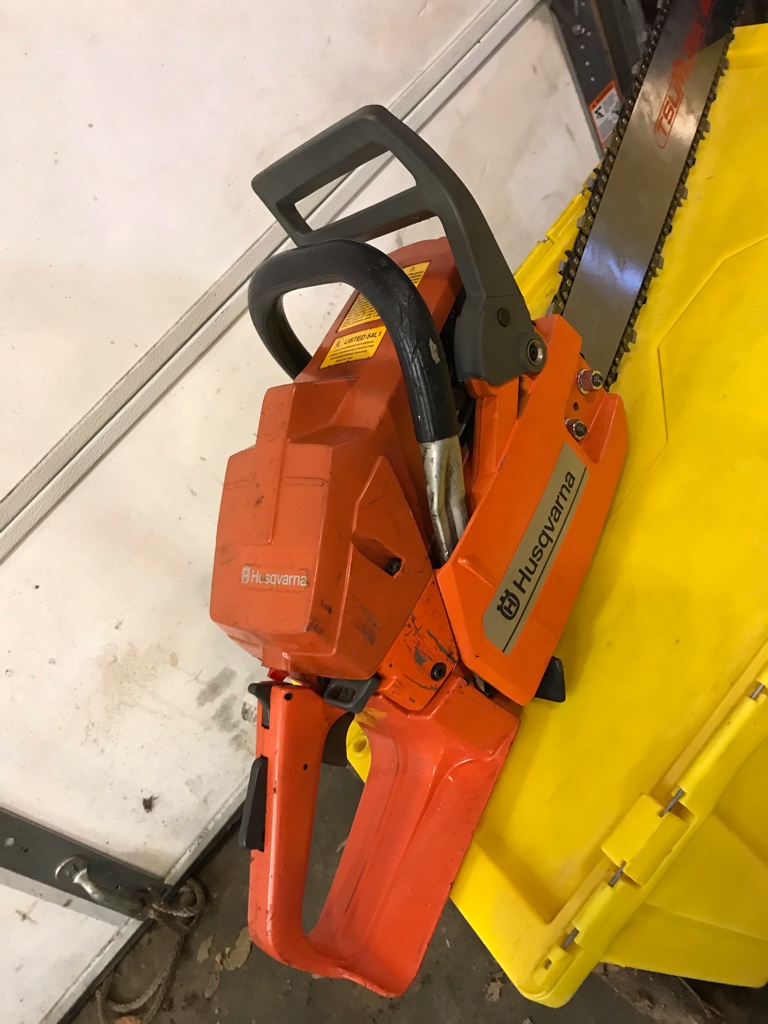

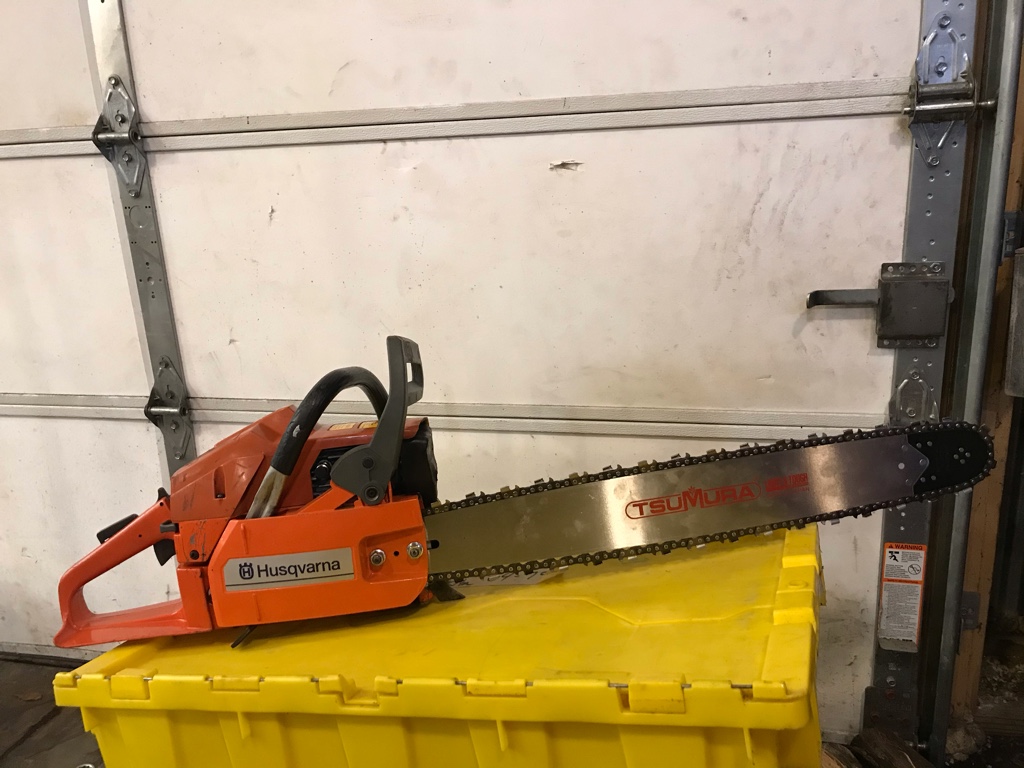

WillG

Here For The Long Haul!
Local time
1:51 PM
User ID
10686
Joined
Oct 10, 2019
Messages
1,730
Reaction score
9,042
Location
Norwich CT
Country flag

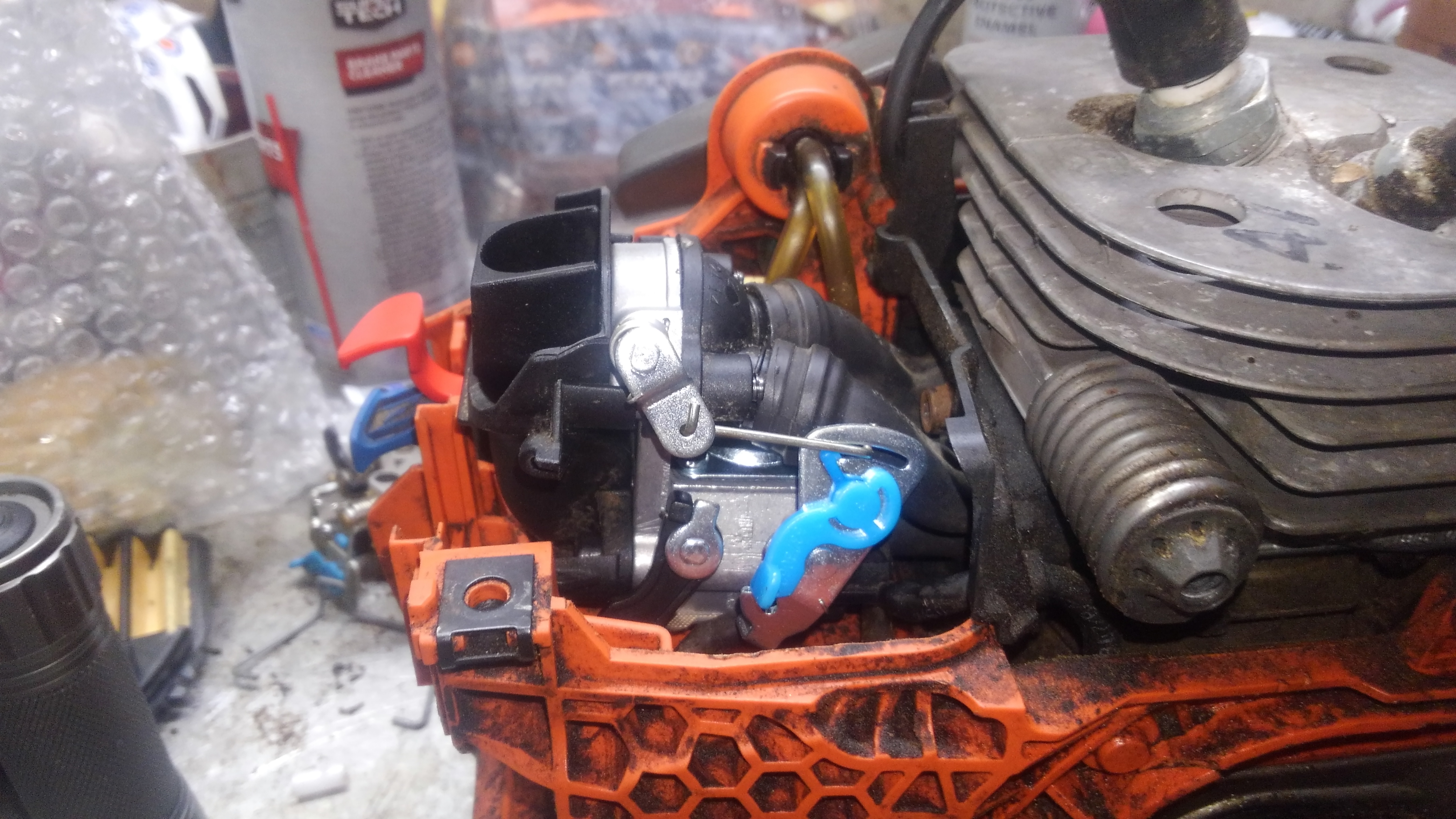

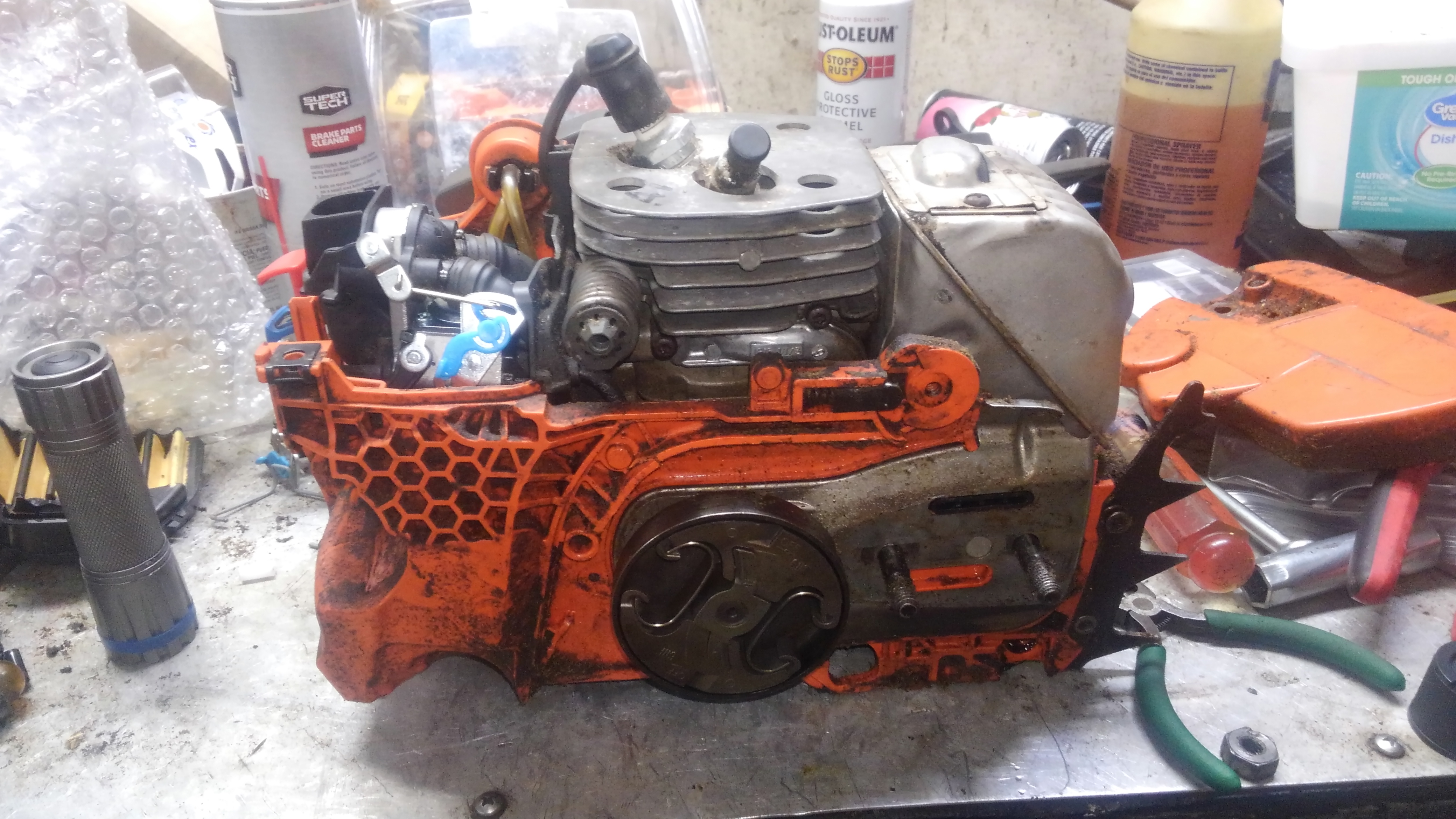

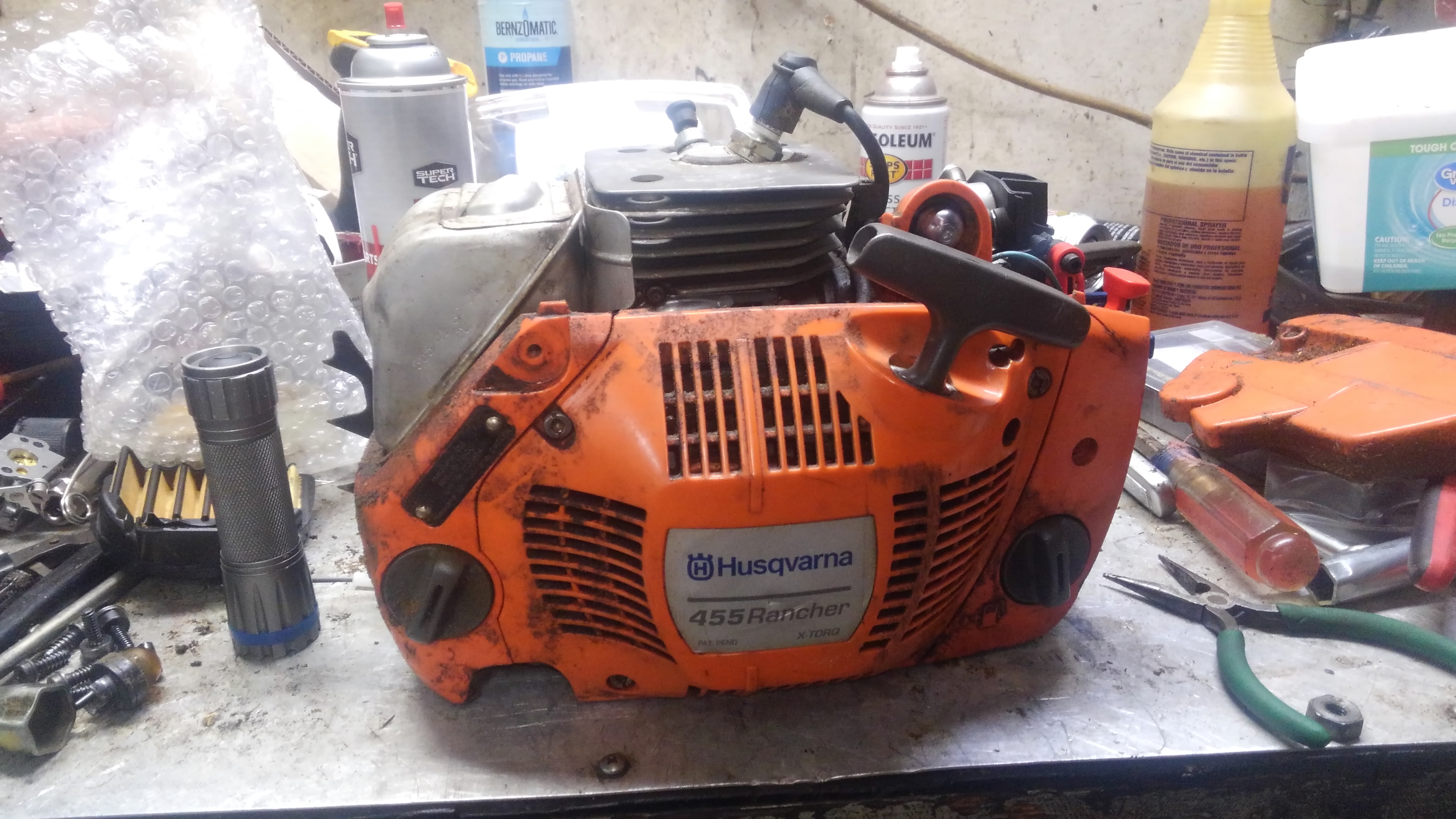

455 rancher x torq getting some love. New carb, fuel filter, purge bulb, spark plug, and a deep cleaning. New carb, bulb and filter are done. Need to clean, reassemble and test in the next day or two.


Sent from my E6810 using Tapatalk


RI Chevy

Mastermind Approved!
Local time
1:51 PM
User ID
1254
Joined
May 7, 2016
Messages
27,002
Reaction score
67,773
Location
earth
Country flag
Where should I start out with the carb needles? It's an aftermarket carb.

Sent from my E6810 using Tapatalk
If it is an AM Chinese carb, I have experienced a bit different. They do not usually have the H-1 L-1 presets. They are usually more. Based on a Stihl 036 AM Carb.


WillG

Here For The Long Haul!
Local time
1:51 PM
User ID
10686
Joined
Oct 10, 2019
Messages
1,730
Reaction score
9,042
Location
Norwich CT
Country flag
If it is an AM Chinese carb, I have experienced a bit different. They do not usually have the H-1 L-1 presets. They are usually more. Based on a Stihl 036 AM Carb.
It is. Will see where it's set at out of the box and go from there.

Sent from my E6810 using Tapatalk


RI Chevy

Mastermind Approved!
Local time
1:51 PM
User ID
1254
Joined
May 7, 2016
Messages
27,002
Reaction score
67,773
Location
earth
Country flag
I think my L was 1.5 turns out and H was almost 2.5 turns out on the AM Definitive Dave carb.

Top
