Machining base without a lathe*

cease232

Pinnacle OPE Member
Local time
6:04 PM
User ID
1443
Joined
Jun 20, 2016
Messages
524
Reaction score
1,730
Location
Montana
Country flag
I've been thinking how to use a flush cut router bit on jugs with cylinder extensions and also how to do a jug without them.
This is fantastic!


Sent from my iPhone using Tapatalk

For cylinders without extensions the same method can be used, just use a mandrel that's tight in the bore and with a perfect flat top. I can't wait to do more. I've already got ideas for improvement.


Sent from my iPhone using Tapatalk


cease232

Pinnacle OPE Member
Local time
6:04 PM
User ID
1443
Joined
Jun 20, 2016
Messages
524
Reaction score
1,730
Location
Montana
Country flag
Router sled and a xy vise.

I thought about it, even a "table" with a hole the size of the cylinder would work, only problem there is mounting the cylinder base perfectly parallel beneath the table. I originally considered putting it on a mandrel on the wood lathe, fixing a router to the lathe and spinning the cylinder by hand. Cylinder fins project enough to need a really long bit though. Still trying to work that one out.


Sent from my iPhone using Tapatalk


cease232

Pinnacle OPE Member
Local time
6:04 PM
User ID
1443
Joined
Jun 20, 2016
Messages
524
Reaction score
1,730
Location
Montana
Country flag
I have a 48" commercial belt sander that I still cut a bunch of stihl bases on simply because I can cut 040 off in less time than I can find the stuff to Chuck it up.
In less than a minute I can cut 040 off and be completely square and flat.
I use a lathe for flanged cylinders and occasionally a stihl.

Only problem is I gave 500$ more for the sander than my lathe.

I have a similar sander. It's definitely the fastest way to take bases down. I paid 75$ for mine. Some guy had it on his back porch for years. Big ol' industrial sander.


Sent from my iPhone using Tapatalk


paragonbuilder

Mastermind Approved!
Local time
6:04 PM
User ID
384
Joined
Jan 2, 2016
Messages
9,229
Reaction score
33,865
Location
Norwich, CT
Country flag
I have a 48" commercial belt sander that I still cut a bunch of stihl bases on simply because I can cut 040 off in less time than I can find the stuff to Chuck it up.
In less than a minute I can cut 040 off and be completely square and flat.
I use a lathe for flanged cylinders and occasionally a stihl.

Only problem is I gave 500$ more for the sander than my lathe.

Jason what grit paper do you use?


Sent from my iPhone using Tapatalk


jmssaws

Banneded
Local time
5:04 PM
User ID
291
Joined
Dec 28, 2015
Messages
10,024
Reaction score
37,291
Location
Missouri
Jason what grit paper do you use?


Sent from my iPhone using Tapatalk
I buy custom belts from a company in LA I believe.
I have them from 100 to 600 but use 220 most

The belt runs on flat steel and is 8" wide with a square plate at the bottom,set the cylinder on the plate and against the belt and it's almost impossible to get crooked.
I cut 040 off a base earlier,might have took a minute.
Take me longer to find a sharp cutter for the lathe than to cut one and be done.

I gave 500 for the lathe and 1200 for the sander but doing mostly stihls the lathe rarely gets used


Termitebuffet

Home of the corn can muffler .....
Local time
6:04 PM
User ID
383
Joined
Jan 2, 2016
Messages
2,627
Reaction score
11,959
Location
Midgetville Norf Kacolacky
Country flag
I buy custom belts from a company in LA I believe.
I have them from 100 to 600 but use 220 most

The belt runs on flat steel and is 8" wide with a square plate at the bottom,set the cylinder on the plate and against the belt and it's almost impossible to get crooked.
I cut 040 off a base earlier,might have took a minute.
Take me longer to find a sharp cutter for the lathe than to cut one and be done.

I gave 500 for the lathe and 1200 for the sander but doing mostly stihls the lathe rarely gets used
Could I see a pic ? Of the sander ?

Zoo City Sawz


cease232

Pinnacle OPE Member
Local time
6:04 PM
User ID
1443
Joined
Jun 20, 2016
Messages
524
Reaction score
1,730
Location
Montana
Country flag

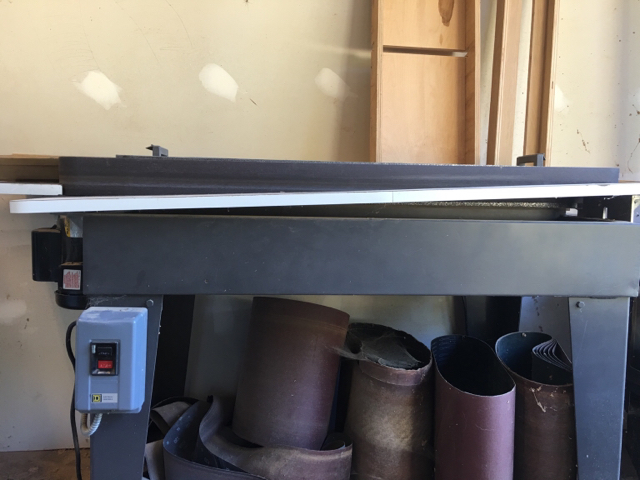

Here's my sander. It's 60" with a 4" belt. Graphite with steel backing behind the belt. Table is set as close to perpendicular with the belt as possible.



Sent from my iPhone using Tapatalk


jb-chainsaws

Pinnacle OPE Member
Local time
11:04 PM
User ID
1846
Joined
Sep 12, 2016
Messages
730
Reaction score
1,906
Location
UK
How do you ensure that the base is being taken down evenly on a sander? I'd be concerned that you've take off say 5 thou more on one side than the other just based on your hand pressure, which would surely cause a bigger deflection at the top of the cylinder, effectively making one side of the piston rub the cylinder.

Just my speculation, I'd like to hear some real life examples of this just because I'm curious and I like being proved wrong. It's how I learn


cease232

Pinnacle OPE Member
Local time
6:04 PM
User ID
1443
Joined
Jun 20, 2016
Messages
524
Reaction score
1,730
Location
Montana
Country flag
How do you ensure that the base is being taken down evenly on a sander? I'd be concerned that you've take off say 5 thou more on one side than the other just based on your hand pressure, which would surely cause a bigger deflection at the top of the cylinder, effectively making one side of the piston rub the cylinder.

Just my speculation, I'd like to hear some real life examples of this just because I'm curious and I like being proved wrong. It's how I learn

I'd like to hear what Jim does as well. I scribe a reference line around the base and use that for reference. Would 0.005 affect performance? I'm probably not smart enough to answer that but I've found in life that if I wait for everything to be "perfect" I never get anything accomplished.


Sent from my iPhone using Tapatalk


jb-chainsaws

Pinnacle OPE Member
Local time
11:04 PM
User ID
1846
Joined
Sep 12, 2016
Messages
730
Reaction score
1,906
Location
UK
It's just that 5 thou difference across the bottom would mean probably more than 10 thou difference at TDC, seems it'd put lateral pressure on the sliding piston surface and affect longevity. Especially if it was in a sideways direction as opposed to forward or back


paragonbuilder

Mastermind Approved!
Local time
6:04 PM
User ID
384
Joined
Jan 2, 2016
Messages
9,229
Reaction score
33,865
Location
Norwich, CT
Country flag
It's just that 5 thou difference across the bottom would mean probably more than 10 thou difference at TDC, seems it'd put lateral pressure on the sliding piston surface and affect longevity. Especially if it was in a sideways direction as opposed to forward or back

I think it would be important to measure at each bolt location before sanding and if different, log the numbers and maintain the difference. Otherwise if they are the same check and adjust as necessary as you go.


Sent from my iPhone using Tapatalk


czar800

Mastermind Approved!
Local time
6:04 PM
User ID
533
Joined
Jan 14, 2016
Messages
7,162
Reaction score
37,448
Location
Ellwood City
Country flag
I think it would be important to measure at each bolt location before sanding and if different, log the numbers and maintain the difference. Otherwise if they are the same check and adjust as necessary as you go.


Sent from my iPhone using Tapatalk


Thats what I do.


jb-chainsaws

Pinnacle OPE Member
Local time
11:04 PM
User ID
1846
Joined
Sep 12, 2016
Messages
730
Reaction score
1,906
Location
UK
How do you adjust this whilst:

1. Keeping the base flat
2. Not taking too much off

I don't doubt you do a good job, I'm just commenting on the things I'd balls up on


czar800

Mastermind Approved!
Local time
6:04 PM
User ID
533
Joined
Jan 14, 2016
Messages
7,162
Reaction score
37,448
Location
Ellwood City
Country flag
How do you adjust this whilst:

1. Keeping the base flat
2. Not taking too much off

I don't doubt you do a good job, I'm just commenting on the things I'd balls up on


Rotating the cylinder helps you with keeping it even. When I get close to the amount I wanted to remove I go to a finer sandpaper.


cease232

Pinnacle OPE Member
Local time
6:04 PM
User ID
1443
Joined
Jun 20, 2016
Messages
524
Reaction score
1,730
Location
Montana
Country flag

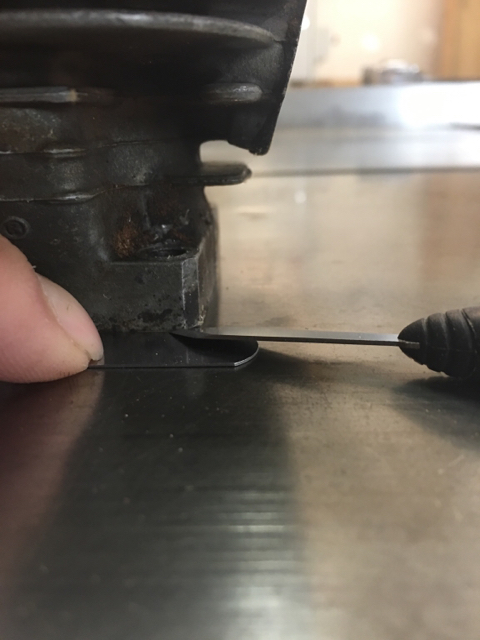

This is what I do. Set the cylinder on a known flat surface. Scribe the base with a feeler gauge the size of the amount to be removed. This way your taking the same amount at each corner, no measuring needed.

You can sharpie the base to give more contrast if necessary.

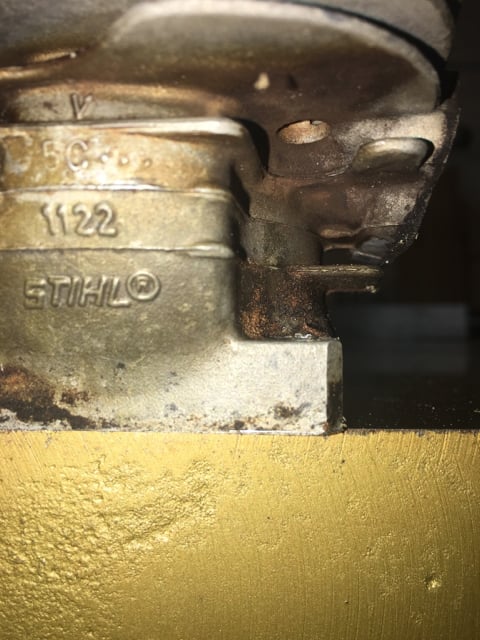

Here you can see the scribed line pretty easily.
If the sander is set up correctly getting the base flat is no problem.
I read that the human eye can see 0.004". Lots of people sand the bases and I've never heard of any failures related.


Sent from my iPhone using Tapatalk


dieselfitter

Pinnacle OPE Member
Local time
5:04 PM
User ID
266
Joined
Dec 26, 2015
Messages
474
Reaction score
2,660
Location
MN
Country flag
I have a belt sander I made cheaply. I re-purposed an old industrial treadmill. I cut down the length so I can order "off the shelf" belts from MSC, Enco... It works great. i used it for many years resurfacing transmission parts. It takes up too much room in the shop so I've been trying to sell it on CL.
http://minneapolis.craigslist.org/wsh/tls/5710321288.html


jb-chainsaws

Pinnacle OPE Member
Local time
11:04 PM
User ID
1846
Joined
Sep 12, 2016
Messages
730
Reaction score
1,906
Location
UK
Would a honing machine work? Might be slow going but it'd let me build confidence
