Old Dirty Feta and the MS500i--the Hi-Tech Wood Lobotomizer

[qurotro]

Grinding the exhaust port corners? Seems ot can be widen a bit without messing the timing.



[AlfA01]

Let's strip this thing and see what's underneath it's skin....



A look down the inlet toward the cylinder. You can just make out the injector outlet just before the cylinder...


Two fuel tubes...fly side is input from the tank and the other is for the primer bulb.



[AlfA01]

Here it is all disassembled. Well, to the short block at least.


This plastic flange hides the fourth screw that attaches the intake to the cylinder. Necessary to remove it first to remove the intake.
Also it provides the only clamping pressure for the intake boot.


Intake boot.



[AlfA01]

A little shot of the injector and the intake of the cylinder.,


Pics of the piston and cases.


Slab sided piston....



[blsnelling]

Do you plan to port the cylinder?



[AlfA01]

Cylinder pics... squish is at .026 with the base gasket.



[AlfA01]

Do you plan to port the cylinder?

Yes, but not yet. I wanted to see how it performed with just simple mods first.



[StephK87]

interesting, same "break in" marks on the exhaust side like mine



[AlfA01]

interesting, same "break in" marks on the exhaust side like mine

View attachment 180446

Glad to see that, Steph. Are you porting it already?



[StephK87]

Still waiting for my machinist to work on my cyl (squish cut), he had a bad tonsilitis last week... I'm sitting on pins and needles



[AlfA01]

It seemed to gain a bit with the muffler mod. I went very conservative just to see how it would respond.

Outlet was enlarged about 30%.



[Deets066]

It seemed to gain a bit with the muffler mod. I went very conservative just to see how it would respond.

Outlet was enlarged about 30%.

View attachment 180450 View attachment 180451

Don’t be skeered Dan



[AlfA01]

Same 25" B/C combo.

Before...

After...



[dall]

Same 25" B/C combo.

Before...

After...

you have porters legs



[StephK87]

Same 25" B/C combo.

Before...

After...

i checked the cut times by fps

1. cut MS500i 8,56 sec
2. cut 79er 6,53 sec

second vid 500i muffler modded

1. cut MS500i 6,86 sec
2. cut MS500i 6,63 sec

about ~ 22% gain

how much break in time you had between the cuts?



[AlfA01]

i checked the cut times by fps

1. cut MS500i 8,56 sec
2. cut 79er 6,53 sec

second vid 500i muffler modded

1. cut MS500i 6,86 sec
2. cut MS500i 6,63 sec

about ~ 22% gain

how much break in time you had between the cuts?

Awesome Steph. I appreciate you taking the time to check. There's only about 1/2 tank burned since the previous video. Decent gains for a minor mod.



[AlfA01]

Cool...the cylinder build date and time stamp.


Time to look at some numbers...




Impossible to get the degree wheel set without pulling the flywheel. The generator in this thing has magnets about every 20* so the flywheel will only stay put in 20* increments.

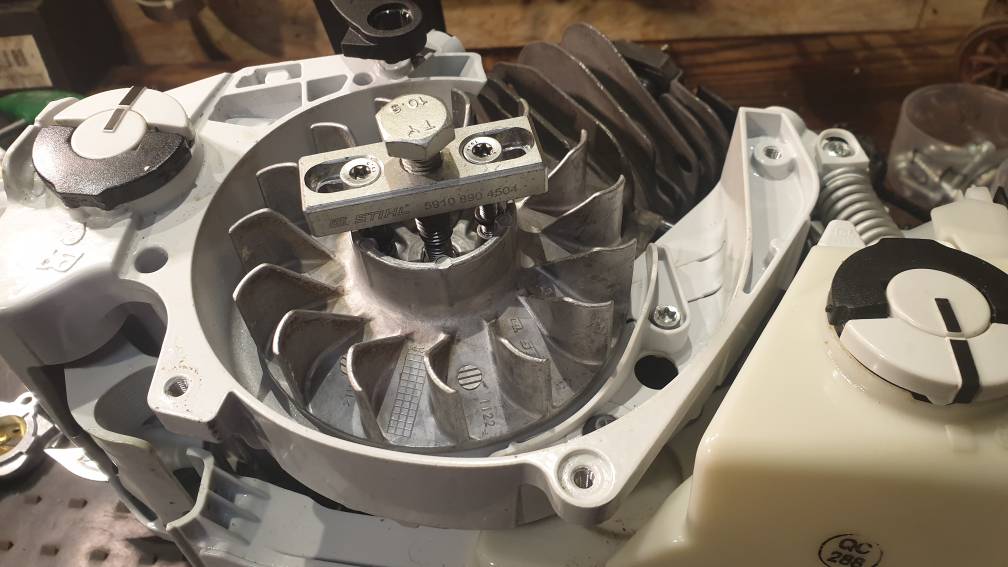

Improvised a little flywheel puller.



[AlfA01]

Flywheel and generator.



[StephK87]

Cool...the cylinder build date and time stamp.
View attachment 180462

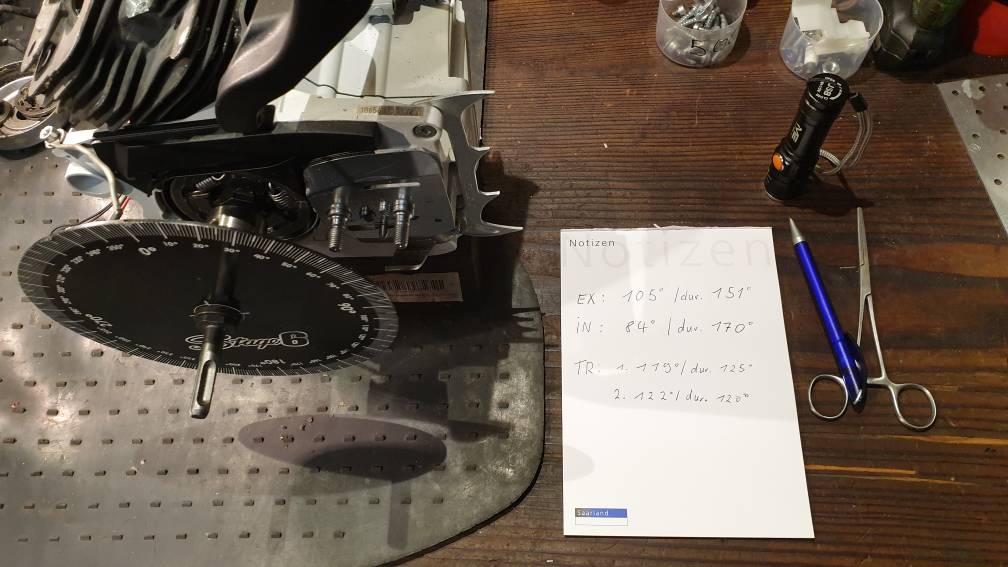

Time to look at some numbers...
View attachment 180463

View attachment 180464

Impossible to get the degree wheel set without pulling the flywheel. The generator in this thing has magnets about every 20* so the flywheel will only stay put in 20* increments.

View attachment 180465

Improvised a little flywheel puller.
View attachment 180466

Yes! I had the same experience [emoji28]

Gesendet von meinem SM-G965F mit Tapatalk



[StephK87]

261/362 puller works perfect

Gesendet von meinem SM-G965F mit Tapatalk
