gonna try my first shot at porting. Whats a good start. I dont plan on changing timing would like to keep it simple. (For now)
I know it would be a little advance for me but wanna put a degree wheel on to get a better understanding of your numbers you guys talk about and what they mean.



Sent from my SGH-I747M using Tapatalk


merc_man

merc_man
Local time
7:04 PM
User ID
933
Joined
Feb 24, 2016
Messages
4,961
Reaction score
21,641
Location
southern ontario
Country flag
Oh ya forgot to mention i decided to try on the husky 353

Sent from my SGH-I747M using Tapatalk


lwhaples

Pinnacle OPE Member
Local time
7:04 PM
User ID
898
Joined
Feb 16, 2016
Messages
660
Reaction score
1,225
Location
Vt
Maybe start with gasket delete and a muffler mod?


merc_man

merc_man
Local time
7:04 PM
User ID
933
Joined
Feb 24, 2016
Messages
4,961
Reaction score
21,641
Location
southern ontario
Country flag

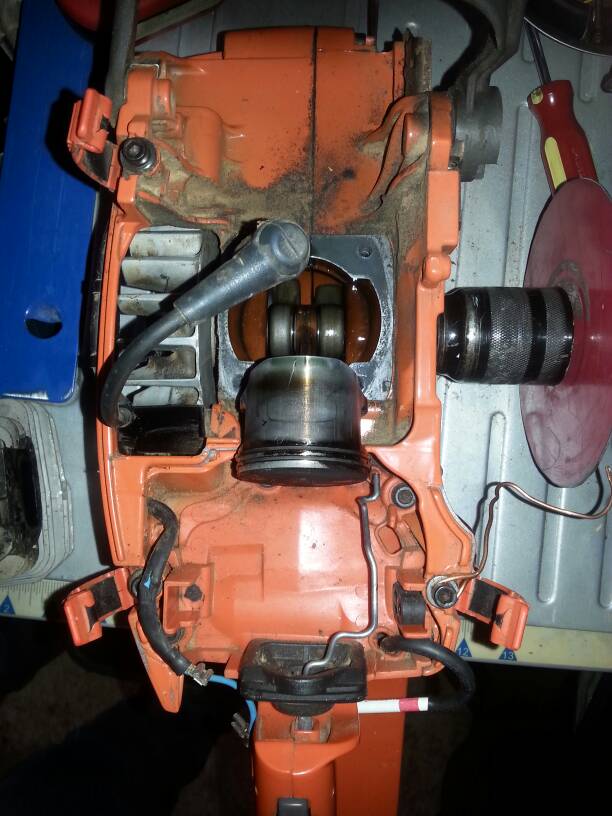

Heres a pic of the port shapes


First is exhaust second is intake.

Sent from my SGH-I747M using Tapatalk


merc_man

merc_man
Local time
7:04 PM
User ID
933
Joined
Feb 24, 2016
Messages
4,961
Reaction score
21,641
Location
southern ontario
Country flag


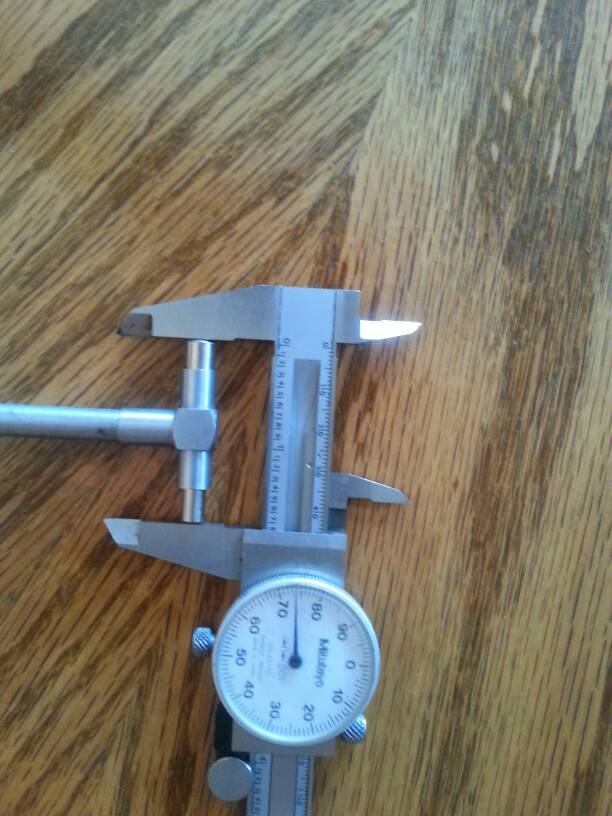

Trying to figure my max width i could go on exhaust port. If bore is 1.774 i multiply it by 0.70 and get 1.2418.

So 1.2418 should be my max 70 percent. This dont mean i gotta try and go this wide.

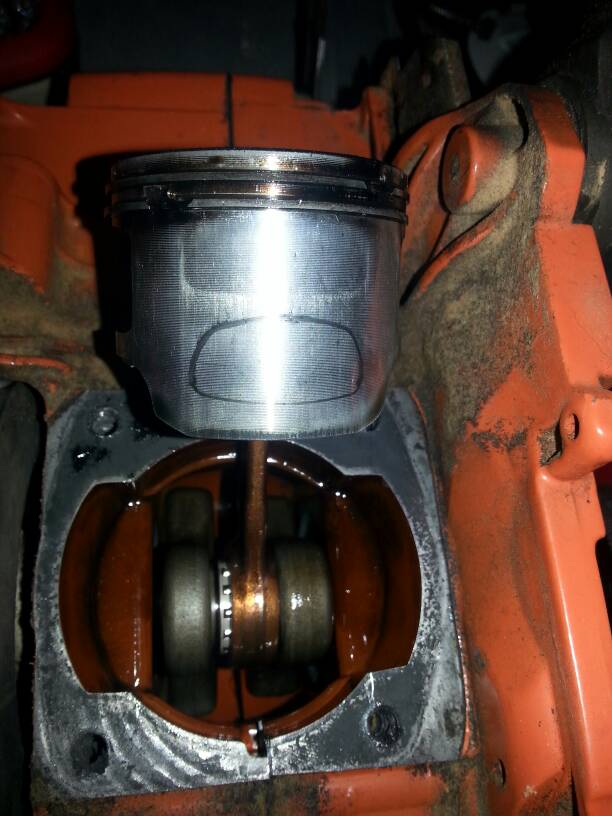

The pic shows the stock port opening with a line on either side to show my max i could open it to.

Sent from my SGH-I747M using Tapatalk


merc_man

merc_man
Local time
7:04 PM
User ID
933
Joined
Feb 24, 2016
Messages
4,961
Reaction score
21,641
Location
southern ontario
Country flag
I shoot for 65% on work saws, 70% on race saws, if I can give it good shape and the skirt is wide enough
How do you determine if skirt is wide enough. if skirt not wide enough do you go by a percentage of the skirt

Sent from my SGH-I747M using Tapatalk


merc_man

merc_man
Local time
7:04 PM
User ID
933
Joined
Feb 24, 2016
Messages
4,961
Reaction score
21,641
Location
southern ontario
Country flag


Sorry for the dumb question and hope reusing your pic was ok.

So you measure 50 though from the straight part of piston(virticle edge) for work saw.

And also good to know a scribe will not hurt i used a pencil.

Sent from my SGH-I747M using Tapatalk


tree monkey

Mastermind Approved!
Local time
6:04 PM
User ID
339
Joined
Dec 14, 2015
Messages
4,820
Reaction score
39,963
Location
wi
Country flag

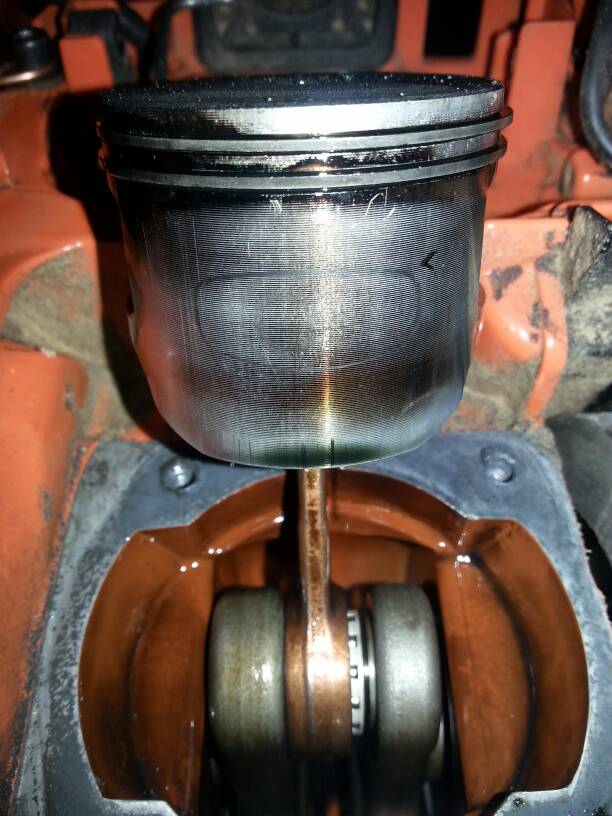

I also mark the port on my sanding mandrel, here you can see how much I changed the exhaust port


tree monkey

Mastermind Approved!
Local time
6:04 PM
User ID
339
Joined
Dec 14, 2015
Messages
4,820
Reaction score
39,963
Location
wi
Country flag


Sorry for the dumb question and hope reusing your pic was ok.

So you measure 50 though from the straight part of piston(virticle edge) for work saw.

And also good to know a scribe will not hurt i used a pencil.

Sent from my SGH-I747M using Tapatalk

from the scribe line to the edge of the piston skirt, or 65% on a full circle piston


merc_man

merc_man
Local time
7:04 PM
User ID
933
Joined
Feb 24, 2016
Messages
4,961
Reaction score
21,641
Location
southern ontario
Country flag

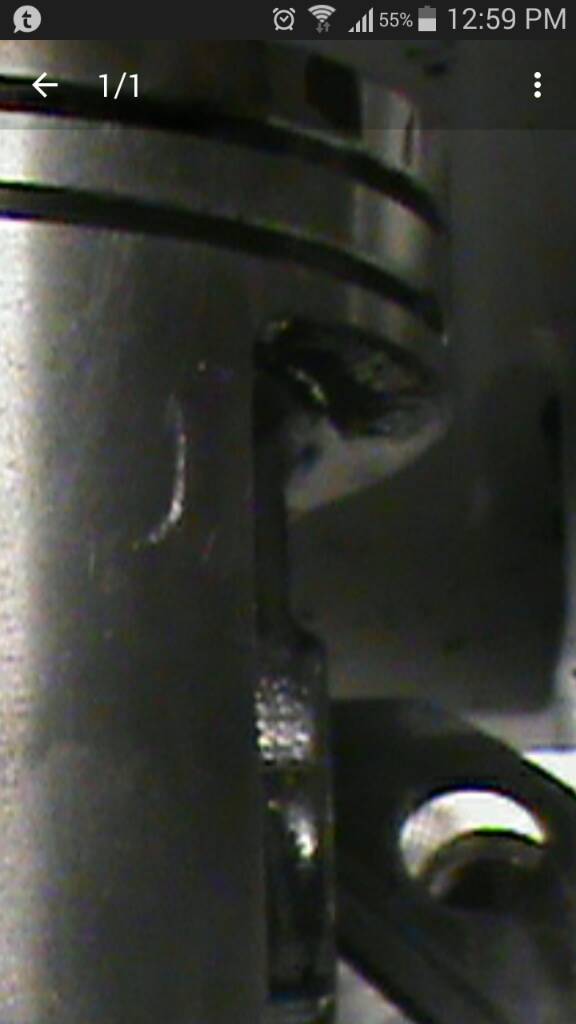

that top ring on your piston, would the ring end be a problem. just curious if it would be too close to the edge of port opening and be a snag issue.


merc_man

merc_man
Local time
7:04 PM
User ID
933
Joined
Feb 24, 2016
Messages
4,961
Reaction score
21,641
Location
southern ontario
Country flag

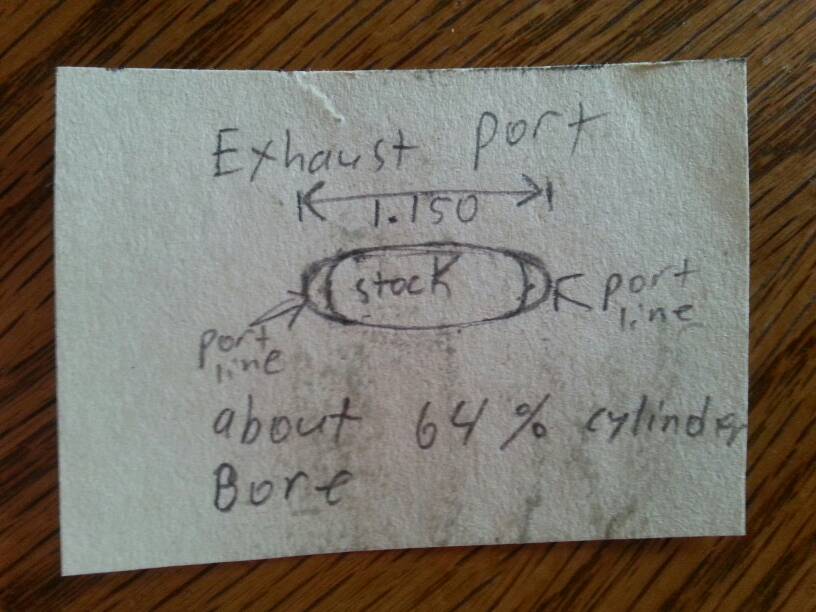

Thought i would try to draw on paper what i plan to try and see what you all think.


I traced the port on paper and drew out about 64ish percent cylinder bore. Let me know what ya think of the shape. Would this work?

Sent from my SGH-I747M using Tapatalk
