jwax
New OPE Member
I notice the XT1 wiring diagram is missing some components like the motor controllers, 20 Amp fuse, and the 4-pin CANBUS connector on the battery. Are there other schematics from your source? Thanks again!
odonnse
Active OPE Member

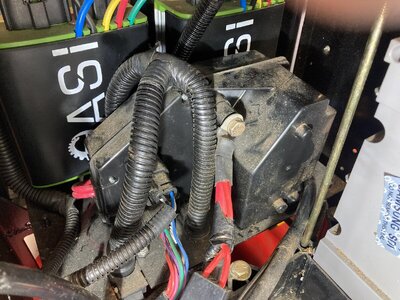

The wiring diagram is just for the main harness. The motor controller power comes from the PDM. And the CAN bus connector you see in the drawing is what connects to the CAN bus harness for the motor controllers. But the main harness connects directly to your BMS with a deutsch style connector.
