The forestry and logging pictures thread

[NWWrench]

3 3408 cat



[NWWrench]



[NWWrench]



[ManiacalMark]

3View attachment 265335 3408 cat

Ooooffff, more pics please!



[rocketnorton]

3View attachment 265335 3408 cat

that be good power w/5axles.
ive run 08s w/7 & 8 axles.
what yr kw?



[timg]

3View attachment 265335 3408 cat

I knew it had to be a special power plant with that long nose.
Engine pic's are a must and I wanna see polished air to air charge piping!! LOL!!



[timg]

BTW, That's one crankshaft design I thought would never work in my younger days. Boy, Did I get that wrong. Caterpillar has showed strong since the early eighties on that engine.



[ManiacalMark]

BTW, That's one crankshaft design I thought would never work in my younger days. Boy, Did I get that wrong. Caterpillar has showed strong since the early eighties on that engine.

I always heard that back in the day when they first put them in trucks if you turned them up past 550-600hp the crank would break. Even more rare to see a truck with an 1676 cat.



[NWWrench]

that be good power w/5axles.
ive run 08s w/7 & 8 axles.
what yr kw?

I am not sure, a friend of mine sent that to me. I have a couple buddys running long hood Petes with 3408's, they sound so cool. I hate working on them , all my friends have Brakesavers on there 3408's, B's and E's . Its like working on a 019 top handle.
Ryan



[NWWrench]

BTW, That's one crankshaft design I thought would never work in my younger days. Boy, Did I get that wrong. Caterpillar has showed strong since the early eighties on that engine.

They can build a Crank and tough bottom end for sure, I used to love loading them down to 1200 rpms's on the dyno full load and they keep pulling. I wish I would have got some pictures of the truck drivers faces, they looked so nervous.
Ryan.



[timg]

I always heard that back in the day when they first put them in trucks if you turned them up past 550-600hp the crank would break. Even more rare to see a truck with an 1676 cat.

I'm not sure of the 1676?? But back in the day if you got your doors blowed off by a double bunk KW cabover with a distinctive cackle sound it had a Cat 1673 or 1693 engine. 6-cyl, dual overhead cam, pre-combustion style. Heavy, dirty, and poor fuel mileage but excellent torque and horsepower. I'm not being the Cat police here but used to bleed Cat yellow LOL!! Now I bleed the other yellow that starts with a K and I'm not talking Kobelco!!



[timg]

Yes, I hear ya Ryan. That is the only engine with the offset rod journals on the same throw. The 3412's were a straight journal for paired rods. I guess it was the degree of the vee block used in the 3408's as to why they did what they did to the crank.



[ManiacalMark]

I'm not sure of the 1676?? But back in the day if you got your doors blowed off by a double bunk KW cabover with a distinctive cackle sound it had a Cat 1673 or 1693 engine. 6-cyl, dual overhead cam, pre-combustion style. Heavy, dirty, and poor fuel mileage but excellent torque and horsepower. I'm not being the Cat police here but used to bleed Cat yellow LOL!! Now I bleed the other yellow that starts with a K and I'm not talking Kobelco!!

Komatsu makes nice stuff. 1693T was a powerhouse and way underrated in it's day. Would pass mostly anything going up a hill, the 1676 was basically the V8 version, also known as the V8 D336. I'd love to have a '72 359 with a 1693 in it, like a bag of rocks idling.



[timg]

Very good sir. Didn't know that for sure!!



[NWWrench]

For all you 3408 and 1693 lovers.



[NWWrench]

The cabover has an 08



[NWWrench]

The Pete 389 above has a 1693 installed is what I was told, WHY WHY WHY. Lots of money involved right there, I am a engine / truck guys so I do think it is pretty cool.
Ryan.



[fossil]

Ed Olsen:

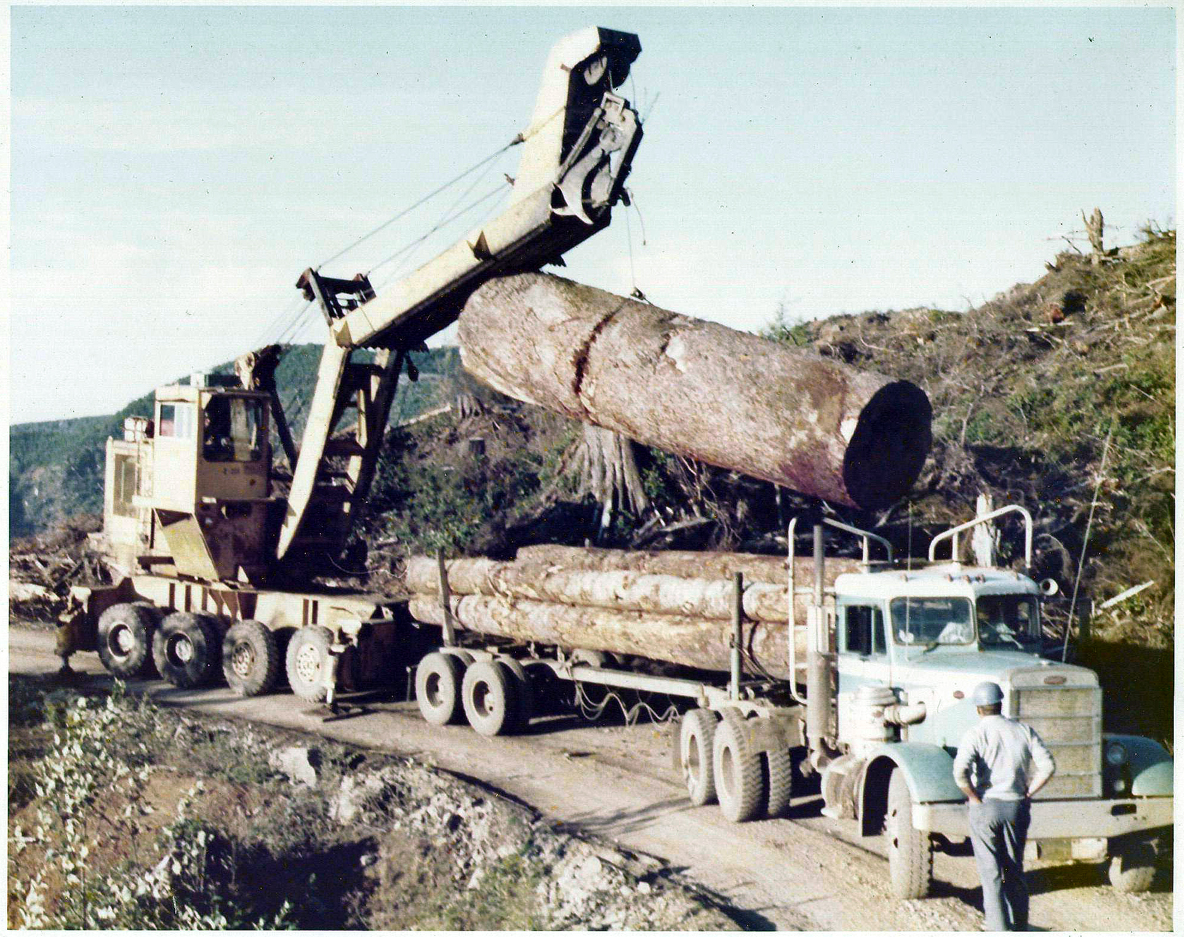

Very interesting crane. It looks like it was modelled after a railroad crane.

Looking at the truck maybe early 50's?



[ManiacalMark]

For all you 3408 and 1693 lovers.View attachment 265544 View attachment 265545

That 359

352's make the best sleepers. I've heard of people stuffing KTA 600's in them as well



[ManiacalMark]

Very interesting crane. It looks like it was modelled after a railroad crane.

Looking at the truck maybe early 50's?

351 pete, made until 1976
