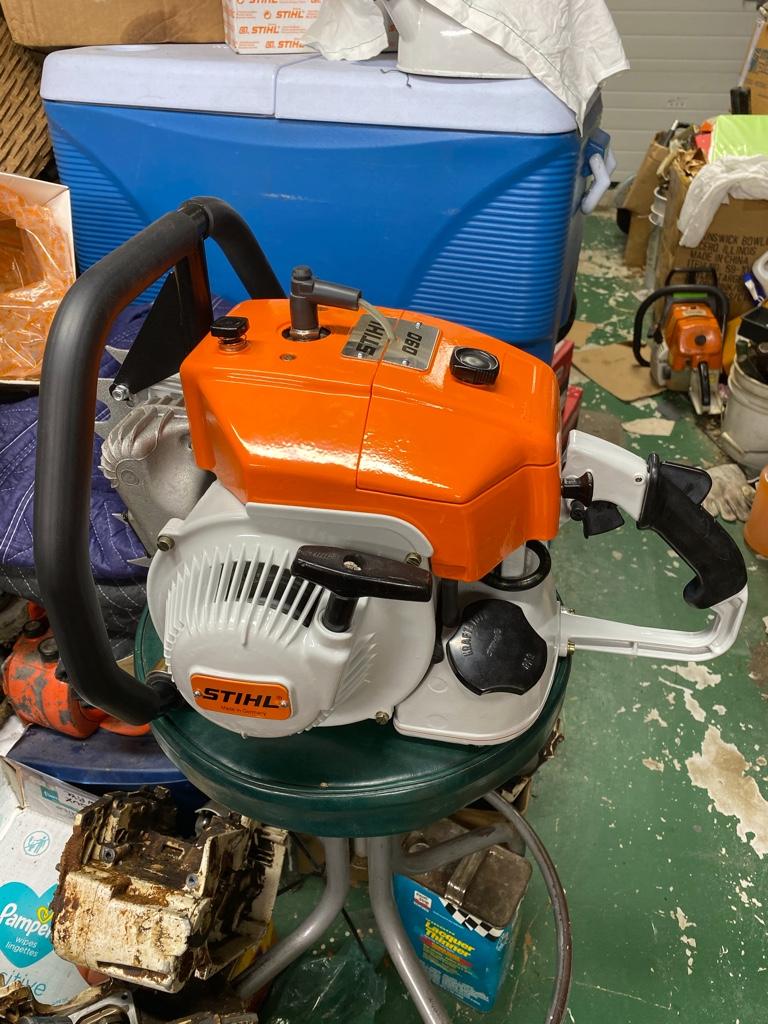

Beauty within the Beast- An 090AV rebirth

[sledneck22]

Can’t wait for an update or another post? Nice work. Is the project complete or still in progress?



[qurotro]

Wow. That's some good work right there.



[rocketnorton]

lookin good

+nice to see ya back



[IEL Fan]

The project is complete, just posting pics of the rebuild I thought people might find interesting. Just a different way to restore an old saw. I understand that this has been done more than a few times but if there was interest....I would keep posting. Same treatment was given to my early production 070. 2 piece crank and 10mm pin. That was my first big Stihl and now I have basically the beginning and end of that saw line before it ended production in North America (Not including the elusive Contra I always miss)



[IEL Fan]

Hi ya Rocket.....
going to have some fun and see where it goes



[IEL Fan]

That ultrasonic sure did a number on the carbon. Let it soak in there for close to 30min. Never had piston ring grooves that clean. speaking of clean....these all went thru the cleaner. Get a load of what it did to the ground strap.




Not a lot of hardware when you think about it, for the sheer size of the saw. I always drop my bearing in a jar of rich mix. Let em' sit in there for a week or too or until they are ready to install. I throw the bearing and races in the freezer overnight. The next day I throw the case half back in the over. 250F is low enough to not change the molecular structure of the powder. The bearing and races just drop into place.









Prepping all the surfaces, getting all the holes cleaned and a tap ran thru. I lot of corners on the back side of the bar studs. That makes for some tricky and time consuming paint removal. Plus a lot of attention on the application of the powder. Make sure no spots were missed of shot too light.



[IEL Fan]

Last round tonight, I got chores to do.
Got the rear handle assembled and laying out the gasket supply. Very happy with the quality and color match of this powder.



[blacksmith]

That's gonna be a nice saw!



[Glock37]

Very nice work and saw is very nice too

090s are fun too restore

Heres one I restored for Dave S

Also a 090g


Sent from my iPad using Tapatalk



[qurotro]

Hm.. I thought 090 should havethe Made in West Germany tag?



[IEL Fan]

Glock, that is a nice saw. Really like the old style rear handle. Nice full wrap too



[IEL Fan]

Sorry, we had rain in the forecast, had jobs needing finished before it arrived.

Time to make 2 into 1.







Converted the Stihl metric torque spec over to inch lbs., as I have this handy little 1/4" torque wrench



[IEL Fan]

Get it all pulled together....Start bolting on the hardware.





I really like the copper oil line. I just think it is soo cool on these old saws, just adding in all the easy access bits before we get to the cylinder. Seals are in and it spins over smooooth.



[IEL Fan]

Better get this sealed up....



[IEL Fan]

Better not forget the governor.....





Moving on to the ignition....



[IEL Fan]



[Glock37]

Hm.. I thought 090 should havethe Made in West Germany tag?

Thats what we found


Sent from my iPhone using Tapatalk



[Glock37]

Glock, that is a nice saw. Really like the old style rear handle. Nice full wrap too

Dave got me the parts
I blasted powdered and put it back together
Putting handle hose on is a pita


Sent from my iPhone using Tapatalk



[Maintenance Chief]

Not to be nosy ,but it looks like you have plans for a Remington SL7A? Maybe.
Fantastic restoration of the 090.



[drf256]

Excellent work. Thank you for the thread.
