084 Carb Diaphragm Help

[Vintage Engine Repairs]

Hi guys,

Old carb has forked lever where the old metering diaphragm would clip onto, new carb kit (didn't include lever, just a GnD kit) diaphragm doesn't have the clip, just a normal button.

From memory the forked lever and non clipped metering diagram still work, but wanted to put it past people here.

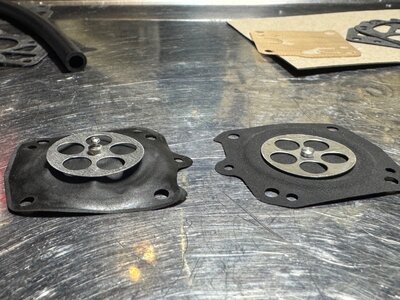

Old diaphragm left with nipple that slides on the forked metering lever. New diaphragm on right no clip.

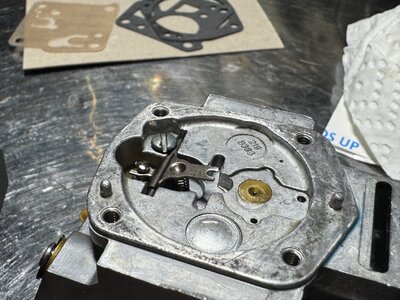

Forked metering lever:



[hacskaroly]

That sucks when they change things up like that. Did you have to do any adjustments to the metering lever to get the button style to work or did it remain at the same height?



[jacob j.]

For one thing - your metering lever looks way too high.
