Understandable. That is some complete bs
What's on your bench?
- Thread starter Adirondackstihl
- Start date
Understandable. That is some complete bs
Chainsaw Jim
Con Artist LLC
- Local time
- 2:05 PM
- User ID
- 836
- Joined
- Feb 8, 2016
- Messages
- 4,014
- Reaction score
- 95
- Location
- Springfield Oregon
- Local time
- 5:05 PM
- User ID
- 21
- Joined
- Dec 4, 2015
- Messages
- 5,336
- Reaction score
- 28,484
- Location
- In a meeting
Jimmy in NC
Pinnacle OPE Member
- Local time
- 5:05 PM
- User ID
- 57
- Joined
- Dec 23, 2015
- Messages
- 2,013
- Reaction score
- 8,052
- Location
- North Carolina

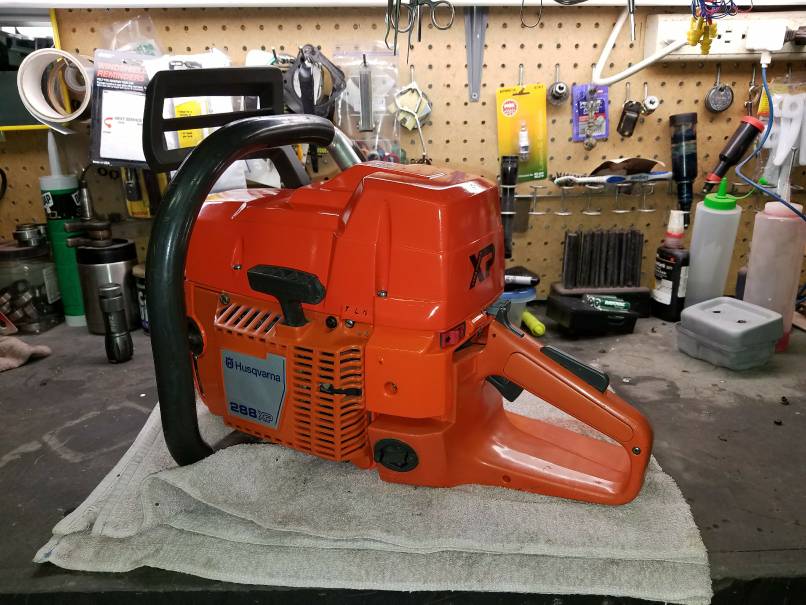

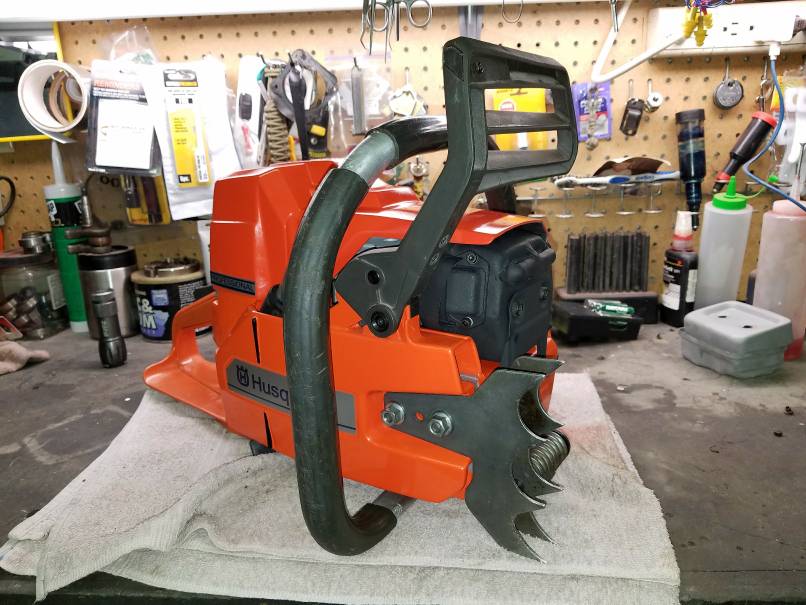

Dibs on the bucket of bearings.Finally got muh 288 buttoned up last night.
But snowmageddon has started overnight......so don't look like I'll be running it much today.
Sent from my SM-G920V using Tapatalk
Sty57
Mastermind Approved!
- Local time
- 4:05 PM
- User ID
- 427
- Joined
- Jan 6, 2016
- Messages
- 6,883
- Reaction score
- 45,746
- Location
- Land of Cheese & Beer
PM sented.........
usmcbuckwild
Buck
- Local time
- 5:05 PM
- User ID
- 4866
- Joined
- Dec 24, 2017
- Messages
- 3,773
- Reaction score
- 23,970
- Location
- NW CT
Working on the 133. Heated the ignition plate with a heat gun and ripped all the potting out so I could remove the ignition board and replace the kill switch wire. Soldered in new wire, made a couple reliefs in the case where the ignition board sits for the wires to come out and not be so close to the flywheel. Sealed it all back up with liquied electrical tape. And of course I forgot to take pictures while I was doing it.
- Local time
- 2:05 PM
- User ID
- 2003
- Joined
- Oct 18, 2016
- Messages
- 29,504
- Reaction score
- 131,998
- Location
- GFY
Looking forward to seeing the results of the tlc...
usmcbuckwild
Buck
- Local time
- 5:05 PM
- User ID
- 4866
- Joined
- Dec 24, 2017
- Messages
- 3,773
- Reaction score
- 23,970
- Location
- NW CT
A little ugly but it should be fine. Debating on drilling a couple holes in that aluminum case to allow some airflow to keep it cool since they are known to have heat soak issues.
- Local time
- 5:05 PM
- User ID
- 319
- Joined
- Dec 29, 2015
- Messages
- 9,599
- Reaction score
- 63,205
- Location
- Strong Island NY
Made a mistake taking on another builders shoddy work. The builder shall remain nameless, but this is the last of their saws my hands will touch.
A bit of piston slap, I wonder why it’s rubbed. A stock pin don’t fit, as the piston mods messed up the pin bore. Well, let’s just sand a pin down to fit!
Piston in bore had more than .008 of room to move. Compared with a new meteor.
A bit of piston slap, I wonder why it’s rubbed. A stock pin don’t fit, as the piston mods messed up the pin bore. Well, let’s just sand a pin down to fit!
Piston in bore had more than .008 of room to move. Compared with a new meteor.
- Local time
- 5:05 PM
- User ID
- 344
- Joined
- Dec 30, 2015
- Messages
- 4,561
- Reaction score
- 25,450
- Location
- Georgia
- Local time
- 5:05 PM
- User ID
- 319
- Joined
- Dec 29, 2015
- Messages
- 9,599
- Reaction score
- 63,205
- Location
- Strong Island NY
Owner sent a nice jug there. It got swapped for this
- Local time
- 5:05 PM
- User ID
- 319
- Joined
- Dec 29, 2015
- Messages
- 9,599
- Reaction score
- 63,205
- Location
- Strong Island NY
The nameless builder was off a bit on his machining. This is what 4 off the base and 8 out of the band looked like. It took 7 to true base fully and I was forced to take 10 from the band. He had actually got 18 squish in one area, which I zeroed off of. The squish now sits at 22. The nband coulda used another 2 out, but it’s only out near chamber and I smoothed it with scotchbrite.
- Local time
- 5:05 PM
- User ID
- 319
- Joined
- Dec 29, 2015
- Messages
- 9,599
- Reaction score
- 63,205
- Location
- Strong Island NY
Here’s the finished product after the machine work, chamfering port’s, and diamond balling the chip over the ex roof.
- Local time
- 5:05 PM
- User ID
- 319
- Joined
- Dec 29, 2015
- Messages
- 9,599
- Reaction score
- 63,205
- Location
- Strong Island NY
Now I just have to work on this amazing timing advance and the awesome muff mod. Case has been split already.
If anyone else has a saw from this builder, ask anyone but me to help. I’m officially done. There’s enough evidence out there to blame yourself now. The owner of this is a good fellow who got taken before the knowing occurred.
If anyone else has a saw from this builder, ask anyone but me to help. I’m officially done. There’s enough evidence out there to blame yourself now. The owner of this is a good fellow who got taken before the knowing occurred.
paragonbuilder
Mastermind Approved!
- Local time
- 5:05 PM
- User ID
- 384
- Joined
- Jan 2, 2016
- Messages
- 9,229
- Reaction score
- 33,868
- Location
- Norwich, CT
Simply mind blowing...
tickbitintn
Pinnacle OPE Member
- Local time
- 4:05 PM
- User ID
- 464
- Joined
- Jan 9, 2016
- Messages
- 1,897
- Reaction score
- 8,016
- Location
- middle tn
Belt sander baby....
Mini belt sander for the port work???
Maybe even the timing mod...
Jack hammer for the muffler....
Looks maxxed out...
I'm making my surprised face now...
Sent from my XT1635-01 using Tapatalk
Mini belt sander for the port work???
Maybe even the timing mod...
Jack hammer for the muffler....
Looks maxxed out...
I'm making my surprised face now...
Sent from my XT1635-01 using Tapatalk
