WANTED Stihl 031 Throttle Lock Parts

[hacskaroly]

I am working on a Stihl 031 for a friend's brother-in-law. Handed to me non-running, no spark, leaking fuel tank (gasket) and just a dirty mess. Hasn't run in years, but the guy grew up cutting wood with it, it was his father's and was handed down to him. It has been a project to get it back up and running (finally!!). I am down to needing to get the last parts to finish this project and get it back to its owner.

I am looking for:
* Stihl Throttle Trigger Lock - 1113 182 9305
* Stihl Helical spring - 0000 997 0603
* Stihl Washer - 0000 958 0403

I know the washer can be any ole washer, but I figure if you have the rest I can get all three parts and not have to look any further for a match. Also, this unit has the different rear handle attachment than what the IPL shows, this one has the AV mounts where the red box is, I am also looking for that long screw that goes in there, the one I have has stripped threads. I know other Stihl's used the same parts on other saw, so if it's the same part from another saw version that works for me too.

Here is the diagram from the IPL:

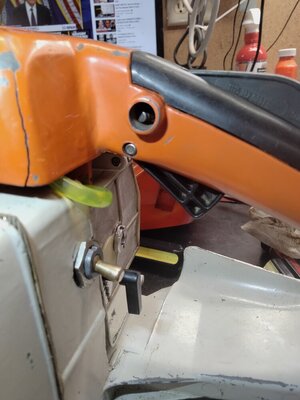

Here is a current pic of the throttle lock area, I do have the bolt in there, just not the trigger lock, spring and washer.

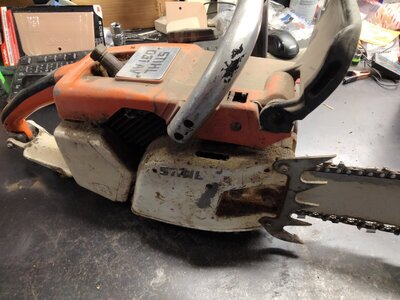

Here are pics of the saw while working on it:



All cleaned up and running (minus the carb cover - forgot to put it on for the pic):


Thanks in advance!!



[Junk Meister]

I have a few (Hundred) After Market buttons PM me
The original had a wood grain molded on them. Your pin and washer and spring appear to be in your handle.
