Husqvarna crankcase splitter

Mark71gtx

Pinnacle OPE Member
Local time
10:12 AM
User ID
539
Joined
Jan 14, 2016
Messages
1,207
Reaction score
2,090
Location
Fuquay Varina, NC
Country flag
Looking for usable dimensions to make a homemade crankcase splitter. I looked at one elsewhere and the measurements did not jive... Thanks!


Milkman31

Pinnacle OPE Member
Local time
9:12 AM
User ID
16
Joined
Dec 4, 2015
Messages
589
Reaction score
1,692
Location
Tn
I made mine from a cardboard cutout that was gave to me. Send me your address and I'll send one your way.


Tor R

Newbie
GoldMember
Local time
4:12 PM
User ID
439
Joined
Jan 8, 2016
Messages
5,155
Reaction score
33,170
Location
Mandal, Norway
Country flag
I took picture of oem splitter, If you wait until tomorrow i can post a picture, picture scale is A4 format


beaglebriar

The Peanut Gallery
GoldMember
Local time
10:12 AM
User ID
377
Joined
Jan 1, 2016
Messages
18,583
Reaction score
103,959
Location
Warren Center, PA
Country flag
I found a PDF over on AS. I think the user name was deprime?? Print it out a little big like 6 3/8" outside. This will give you the proper inside dimension when you cut out the final pieces which is the important part. Cut out the paper trace it on some thin steel with a sharpie. Carefully cut it out with a plasma torch. Then clean it up with a die grinder. Use this as a template to cut your actual jaws. They will come out nicer this way. Using 6" flat stock will make it easier to keep everything square. I used 3/16" and it's plenty strong.

Last edited:

Glock37

Pinnacle OPE Member
Local time
10:12 AM
User ID
356
Joined
Dec 31, 2015
Messages
1,657
Reaction score
6,758
Location
Monroeville Pa
Country flag

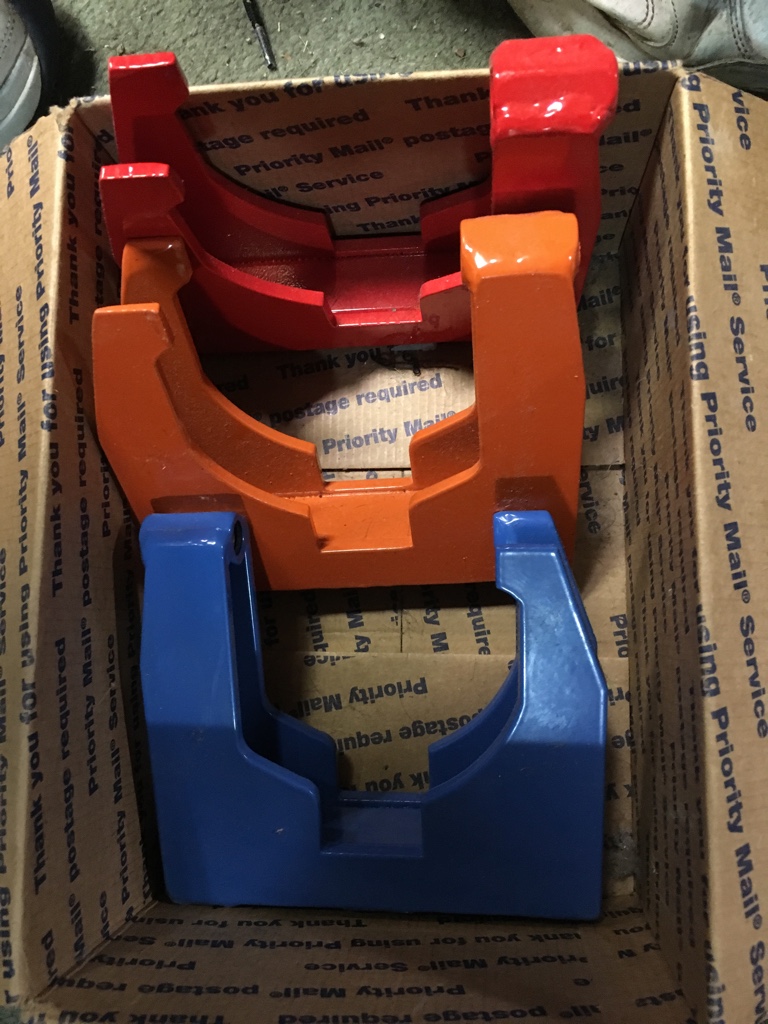

I made these. Powdered

Pm if interested.


Sent from my iPhone using Tapatalk


Glock37

Pinnacle OPE Member
Local time
10:12 AM
User ID
356
Joined
Dec 31, 2015
Messages
1,657
Reaction score
6,758
Location
Monroeville Pa
Country flag
Remember heat is your friend separating cases


Sent from my iPhone using Tapatalk


panteliss

Pinnacle OPE Member
Local time
4:12 PM
User ID
727
Joined
Jan 29, 2016
Messages
633
Reaction score
1,361
Location
Europe
Husqvarna-Stihl-Crankcase-splitter-tool-fits-372xp-55-395-272-288-044-066-more-181956691093-2.jpg


the distance between the jaws must be 28mm for the big saws splitters example 372, 395
the distance between the jaws must be 24mm for the small saws splitters example 242, 346 ...
for the other dimensions no matter so much if you are out a little


David Young

Safety First !!!!!!
Staff member
Local time
10:12 AM
User ID
434
Joined
Jan 7, 2016
Messages
2,262
Reaction score
9,633
Location
vt
Country flag
Also from sty57


Attachments

  • image.jpeg
    97.2 KB · Views: 66
