Note the three beveled sections. This holds the chain holding section in place as it is allowed to pivot towards the chain tooth.

USG main frame.jpg

A photo as I'm putting it back together.

USG Square parts.jpg

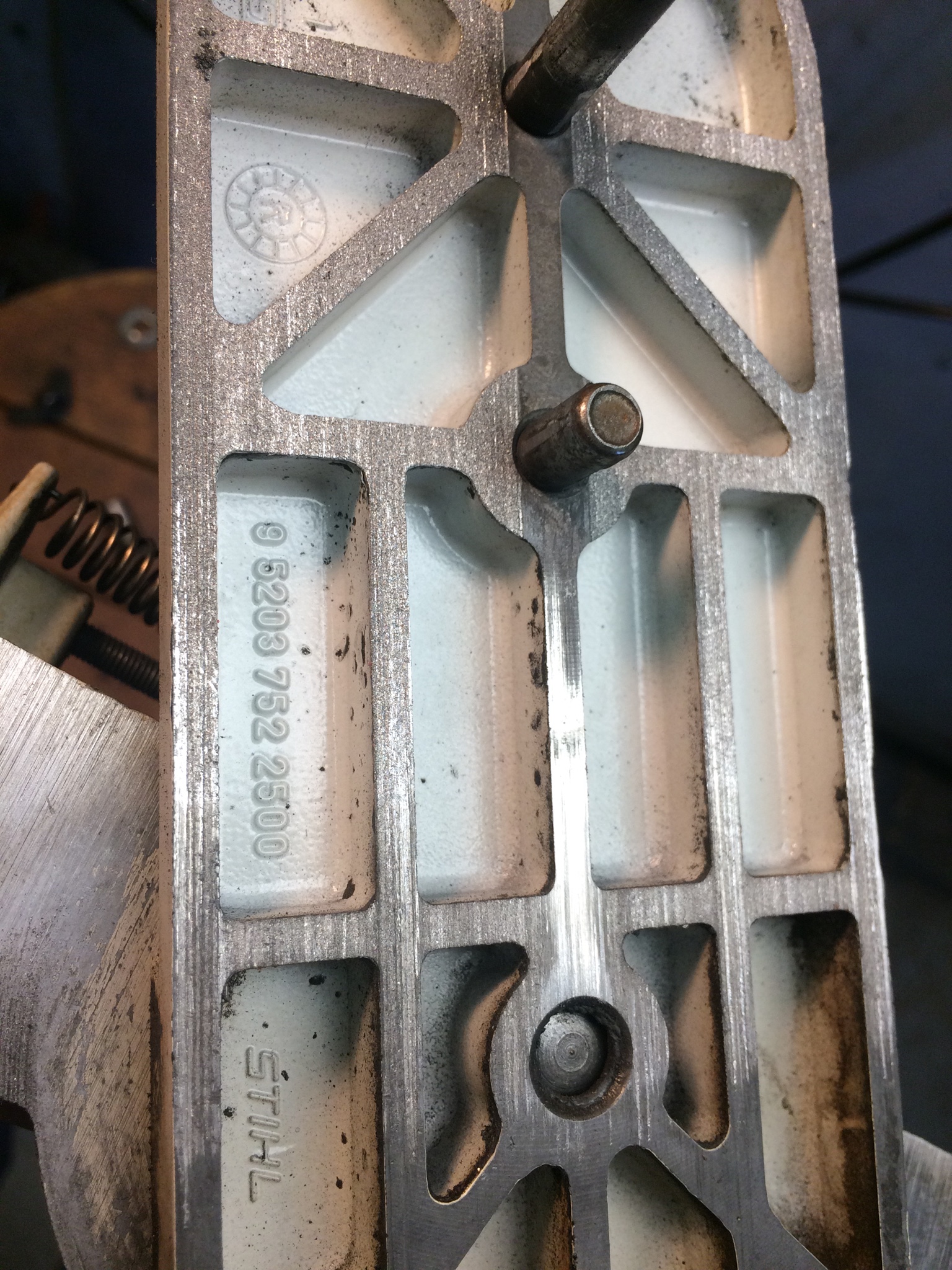

A photo of the two chain bases side by side. The look the same on top except for the drilled and tapped chain movement handle and the fact that the dowel is pressed in from the bottom on the original and is the end of a bolt on the square grind attachment.

USG parts comparison.jpg

Last edited:

X 66 stang347 X

Pinnacle OPE Member
Local time
1:32 PM
User ID
1884
Joined
Sep 23, 2016
Messages
804
Reaction score
2,318
Location
Georgia

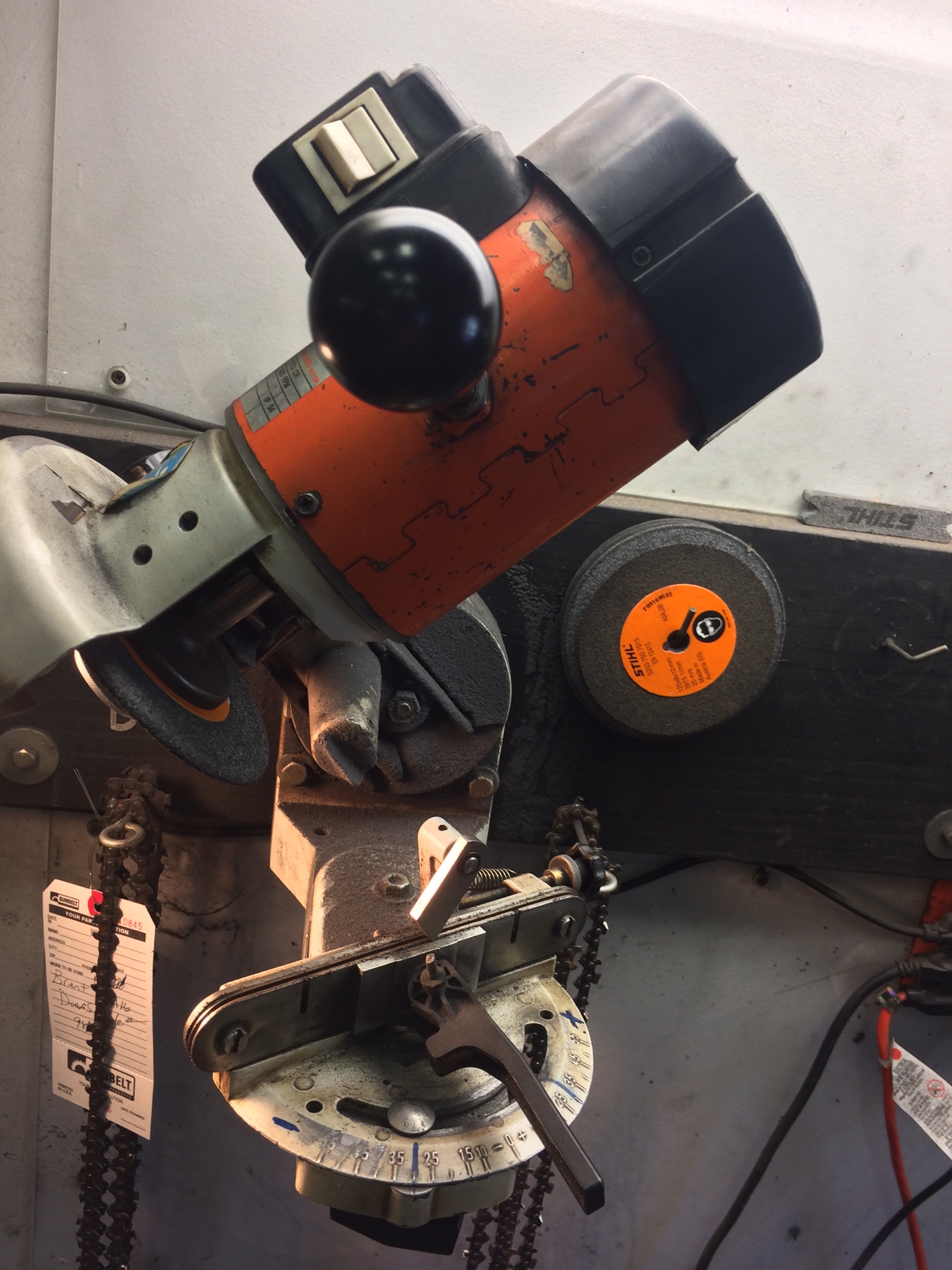

Im thinking I needing that base? Here's mine


Stihl036

3% Neanderthal
Local time
1:32 PM
User ID
1637
Joined
Aug 1, 2016
Messages
72
Reaction score
223
Location
Georgia
Country flag
I'm thinking a skilled machinist could mod the original. I'll be glad to bring my grinder to one of Randy's GTG so folks can see it and take measurements so they could mod theirs if so desired. For the skilled I believe it would be quite easy. I would be willing to work with such a machinist if they were within a few hours drive. It's the least I could do for the gift of all of the great info I've gotten off of the forums over the years.


big t double

You can call me Teddy Eastwood.....
Local time
12:32 PM
User ID
372
Joined
Jan 1, 2016
Messages
1,359
Reaction score
6,985
Location
.
for what its worth...the actual kit number for the attachment is 5203 007 1002. of course they are nla but bulletin 43.1983 has the parts breakdown of it. most individual parts I checked were nla as well.


Marshy

WFO Cutting
Local time
1:32 PM
User ID
417
Joined
Jan 5, 2016
Messages
3,800
Reaction score
13,100
Location
Mexico NY
Question for you guys. Using the tree sided file, which side of the file cuts the top plate, is it the wide edge?

Also, I have a double bit file too but damn it all, ya just can't get the gullet without using another file to clean it up.

The triangle file feels more comfortable but I'm going to make a mess either way I reckon.


Marshy

WFO Cutting
Local time
1:32 PM
User ID
417
Joined
Jan 5, 2016
Messages
3,800
Reaction score
13,100
Location
Mexico NY
I think I'll be getting a single bit file to try next. Finished it with the double bit. Took a while lol. I'm naturally better with my left hand than my right, that's for sure. I always knew that round filing but it became much more obvious after trying square.


Icepick69

Fart knocker extraordinaire.
Local time
1:32 PM
User ID
2172
Joined
Nov 23, 2016
Messages
1,816
Reaction score
4,701
Location
North Carolina
Country flag
We now have Pferd square files in stock.
Please call 828-676-2393 if you need any.
Pferd files are known all over the world for there excellent quality.


Attachments

  • IMG_2161.JPG
    108.5 KB · Views: 46
  • IMG_2162.JPG
    95 KB · Views: 48

Marshy

WFO Cutting
Local time
1:32 PM
User ID
417
Joined
Jan 5, 2016
Messages
3,800
Reaction score
13,100
Location
Mexico NY
We now have Pferd square files in stock.
Please call 828-676-2393 if you need any.
Pferd files are known all over the world for there excellent quality.
What shape is that file? Doesn't look like any I've ever seen. Hard to tell from your photo.

Price for one?


Marshy

WFO Cutting
Local time
1:32 PM
User ID
417
Joined
Jan 5, 2016
Messages
3,800
Reaction score
13,100
Location
Mexico NY
This was an unsharpened square ground Stihl chain prior to this. I didn't dull it too bad so I had a descent but dull edge to start with. I found it works best to use a light hand on these files. The gullet was a little bit of a pain to get cleaned. Stihl leaves a lot of material in there that needs taking out with the round file.


Icepick69

Fart knocker extraordinaire.
Local time
1:32 PM
User ID
2172
Joined
Nov 23, 2016
Messages
1,816
Reaction score
4,701
Location
North Carolina
Country flag
This was an unsharpened square ground Stihl chain prior to this. I didn't dull it too bad so I had a descent but dull edge to start with. I found it works best to use a light hand on these files. The gullet was a little bit of a pain to get cleaned. Stihl leaves a lot of material in there that needs taking out with the round file.
Have any pictures of the other side
