Echo Cs 730 hybrid build.

[Red97]

Well since the other thread isn't coming to fruition any time soon I'll post these here instead...

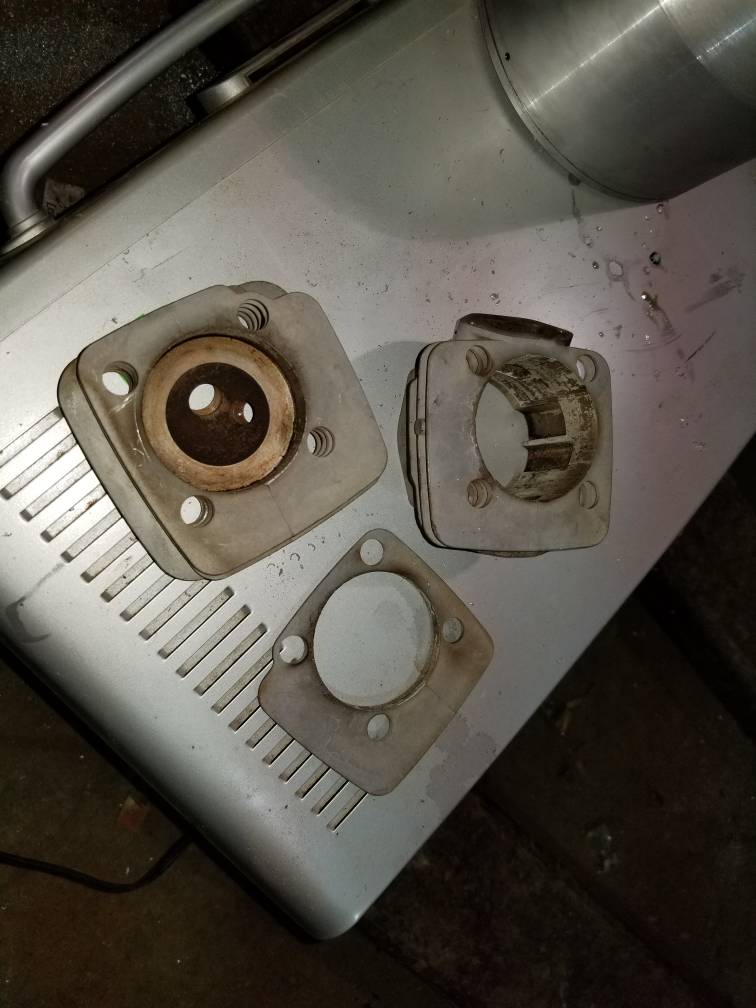

Left over from the 52mm 590 jug attempt

4.5" cube to start

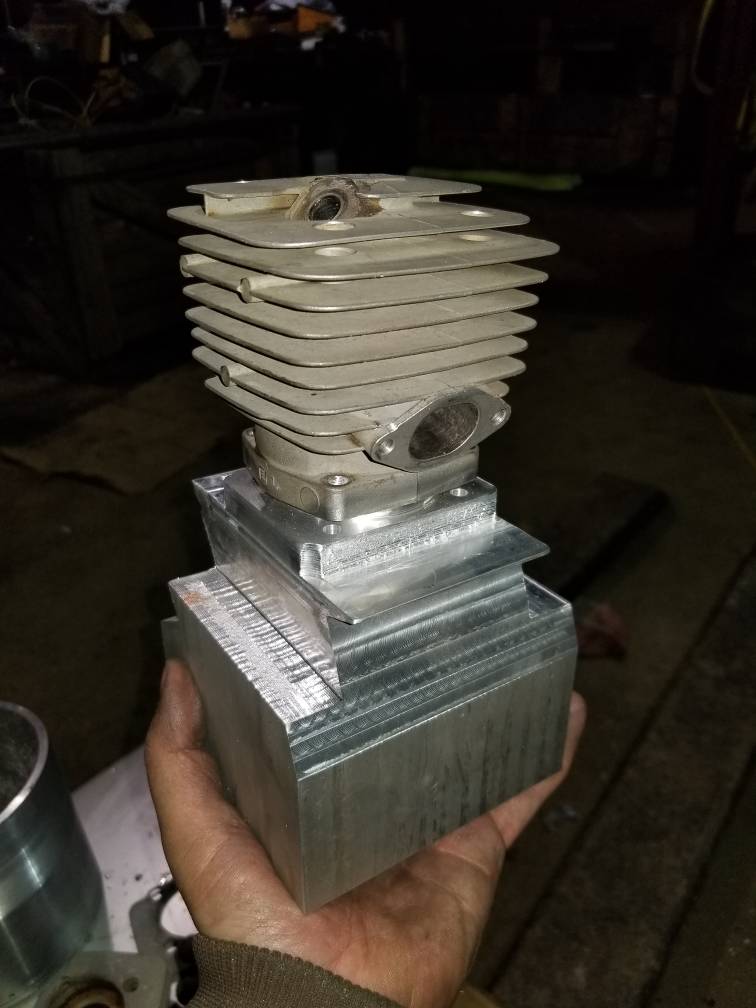

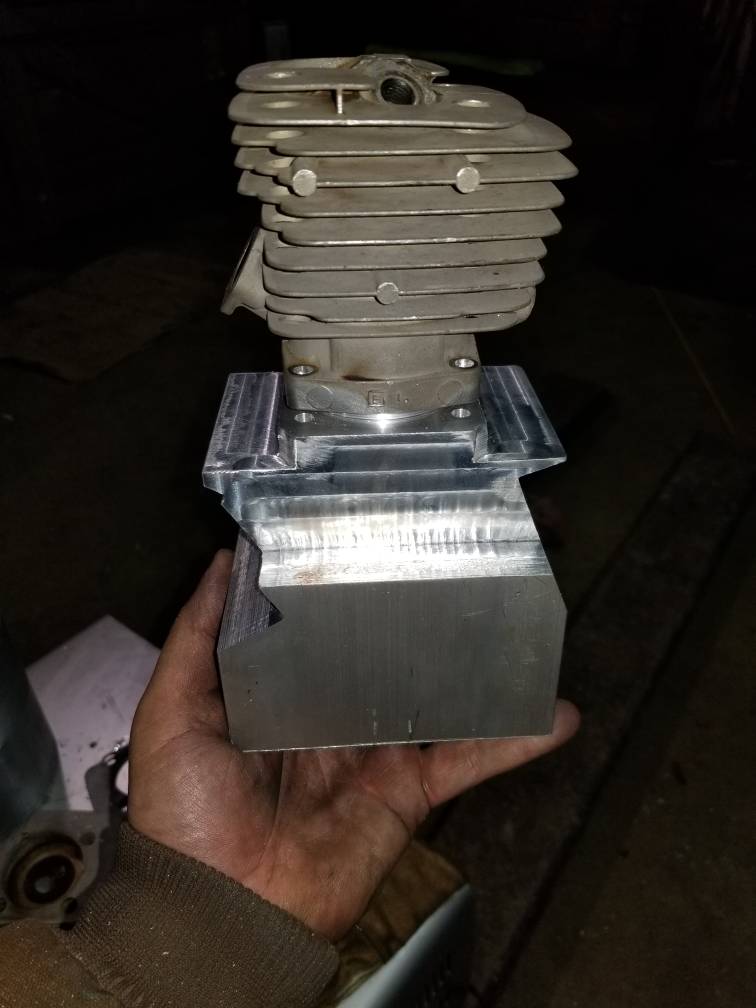

Roughed in the intake/Ex port angle

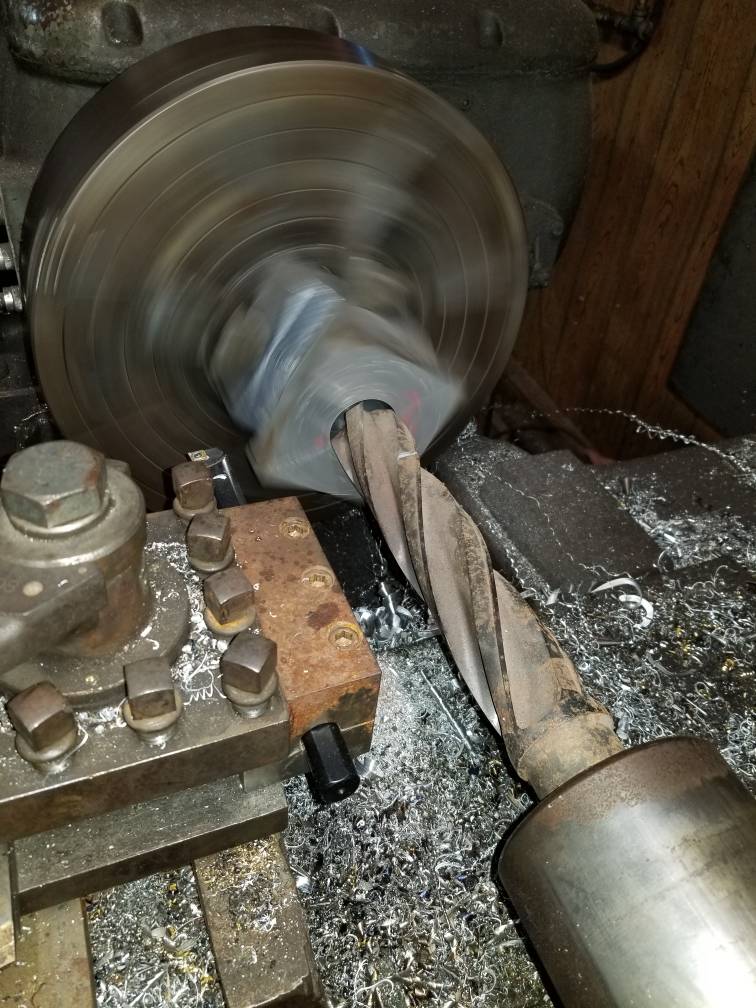

Then drill the hole that will become the bore. 3 step

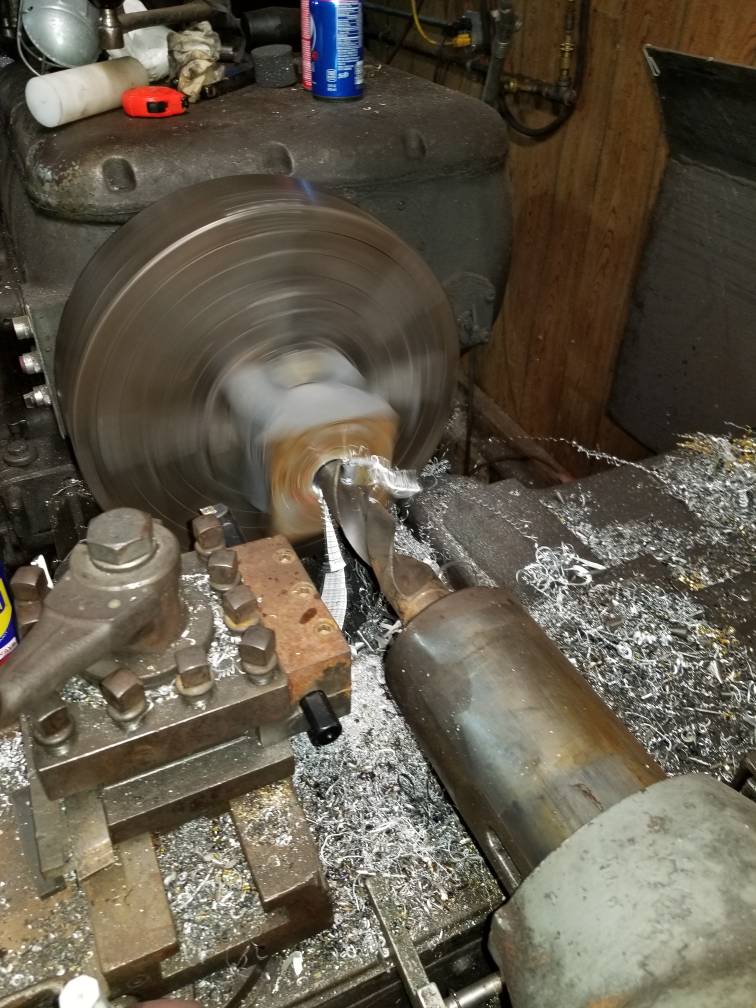

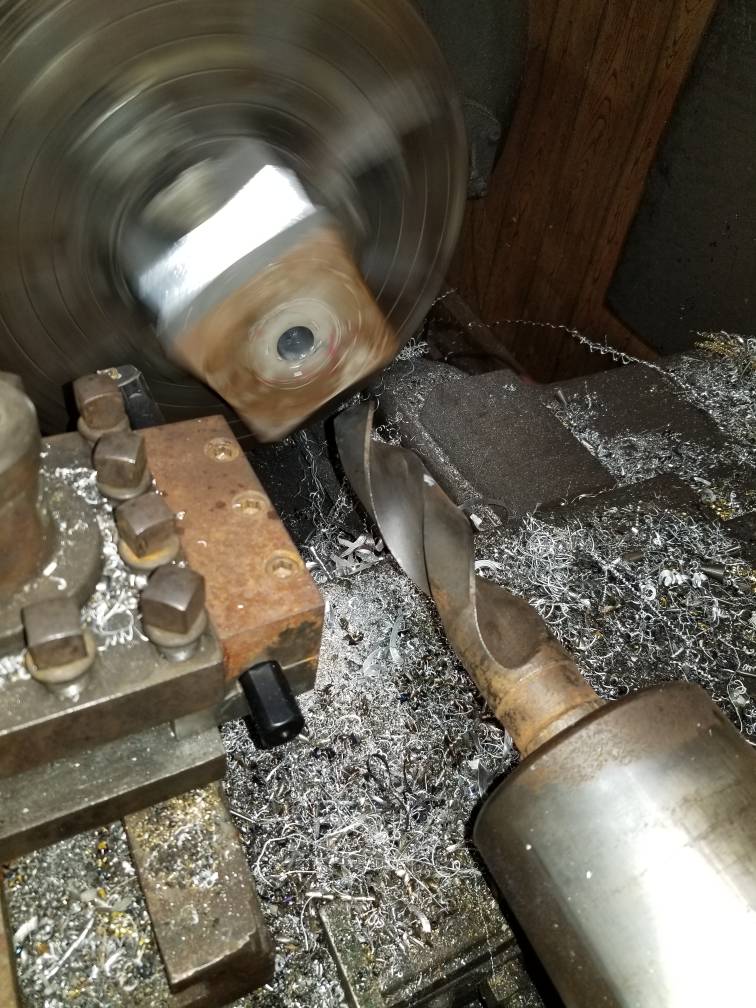

7/8,1 5/8, and a 2" 4 flute core drill. Put the lathe in low and let er eat

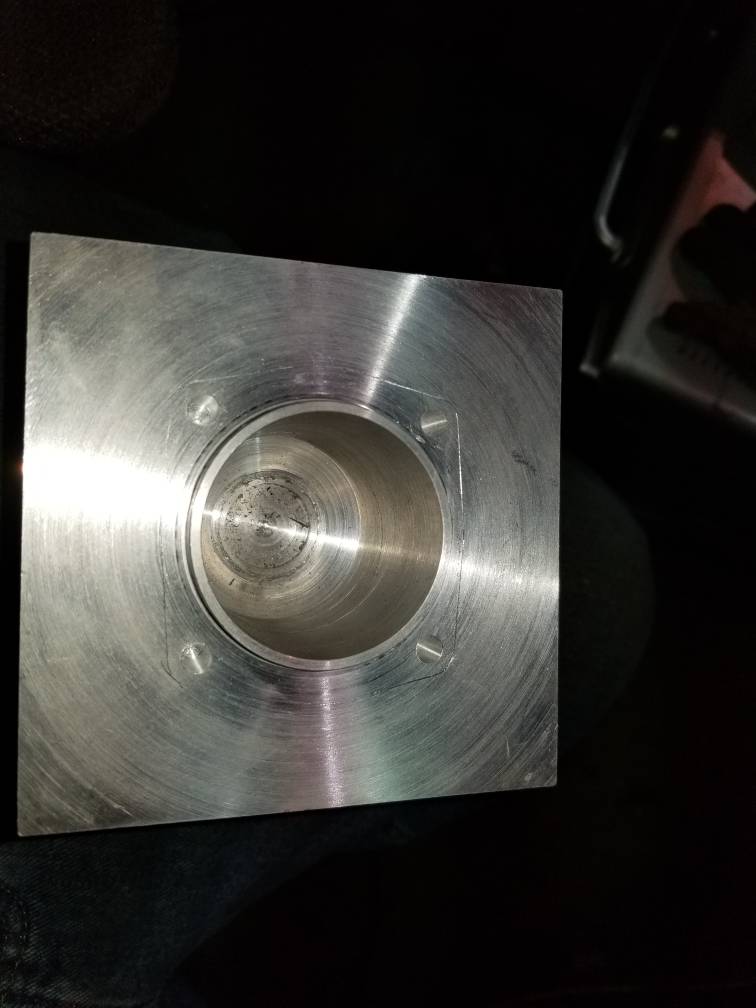

Used the junk base peace to transfer the bolt pattern, and scribed the outline.

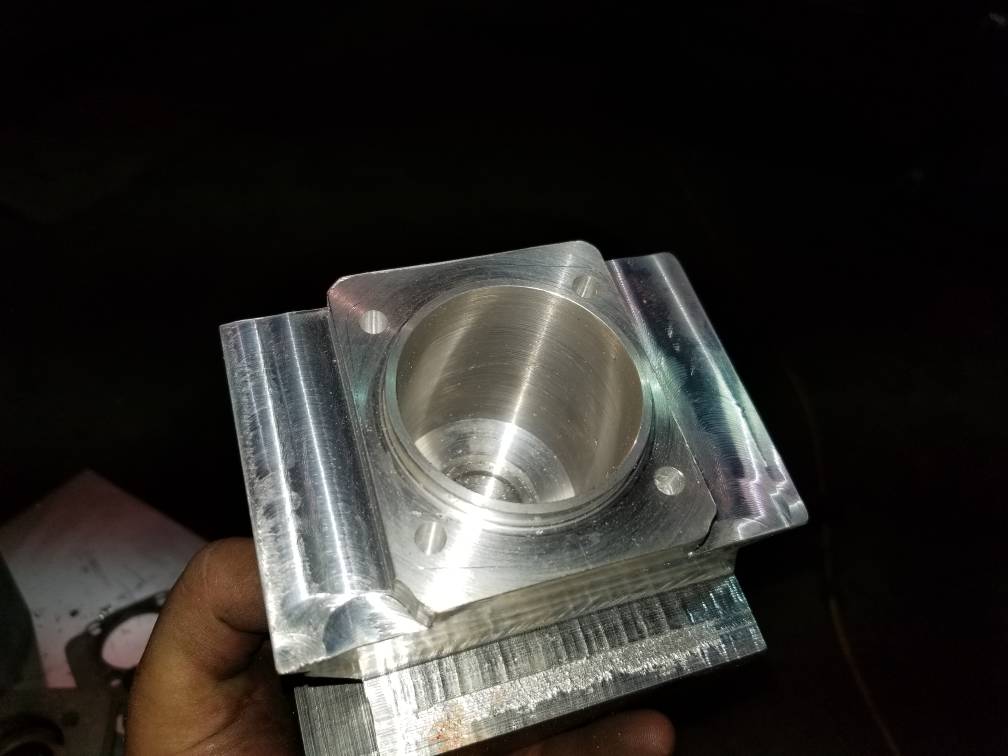

Started roughing to shape.

Rough out around the ports, and above the ex. I can turn all the fins on the lathe. Well the top 5 fins anyway.
