262xp rebuild for @hoskavarna raffle

[paragonbuilder]

Muffler mod.
Took these out

Pretty wide open now!

It was a little tricky getting in there without splitting the muffler but I got her done!!


Sent from my iPhone using Tapatalk



[paragonbuilder]

I was shooting for 105/122 didn't touch the intake height. I was a little conservative in my grinding.
I'm at 108/123.5/70.5
After talking with Al I'm going to try something. I'm going to raise the intake to 75 and see how she runs. I can always go back in.
Don't know if you don't try...


Sent from my iPhone using Tapatalk



[paragonbuilder]

Sent from my iPhone using Tapatalk



[paragonbuilder]

I landed at 76.

Sent from my iPhone using Tapatalk



[paragonbuilder]

Time to bevel the edges


Sent from my iPhone using Tapatalk



[jmssaws]

I landed at 76.

Sent from my iPhone using Tapatalk

Good clean grinding.
Nice work



[drf256]

I landed at 76.

Sent from my iPhone using Tapatalk

Grinding impeccable Dan. Great work.



[drf256]

48.5* of cranking compression. 15.5* BD

I bet those transfers are just about right. We can always raise a bit Dan.

Bet it pulls like a freight train with the 87 carb



[paragonbuilder]

Beveled and cleaned up

Sent from my iPhone using Tapatalk



[paragonbuilder]

Good clean grinding.
Nice work

Grinding impeccable Dan. Great work.

Thank you both, means a lot coming from you pros!



[paragonbuilder]

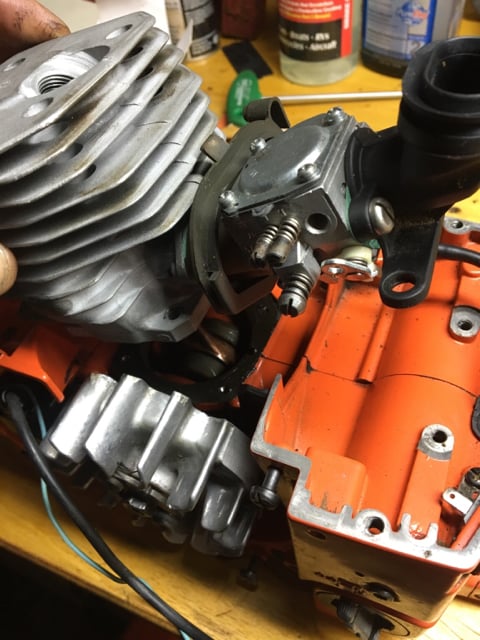

Intake tract bolted up

New meteor piston and ring

All oiled and ready for gasket maker


Sent from my iPhone using Tapatalk



[paragonbuilder]

And here we go.

Sent from my iPhone using Tapatalk



[drf256]

I'll be bringing a 101 exhaust 261/2. Will be interesting to see the difference.



[jmssaws]

Thank you both, means a lot coming from you pros!

I'm a hack at best! Al on the other hand is very professional.
Thanks for the compliment



[drf256]

I'm a hack at best! Al on the other hand is very professional.
Thanks for the compliment

Pretty don't matter, running matters.

Your saws run great. I think I have a man crush on you.



[Canadian farm boy]



[paragonbuilder]

Got her all together. Fueled her up. Popped on the 6th pull. 2 more and she was running! Sounds good, smells even better! I'll give her a run in some wood tomorrow...


Sent from my iPhone using Tapatalk



[drf256]

Just So I can remember on Friday, the 261 I'm bringing has .050 from the band and is sitting at 101/116/78.

No bridges or fingers. Same muffler mod.

I'm gonna install the 87 carb tonight.

It would be great to see the difference in how they run. I think Marcello's 108 exhaust saw is gonna beat mine up.

Awol's 110 exhaust 562 is apparently the fastest "small saw" Jason has ever run. If it impressed a guy that's used to running ported 90cc saws, I figure the low exhaust may have sone u discovered merit.

My Lil echo 490 has a 106 ex and will wow a few of you.



[mdavlee]

Just So I can remember on Friday, the 261 I'm bringing has .050 from the band and is sitting at 101/116/78.

No bridges or fingers. Same muffler mod.

I'm gonna install the 87 carb tonight.

It would be great to see the difference in how they run. I think Marcello's 108 exhaust saw is gonna beat mine up.

The 108 will be a torque machine. The higher exhaust will beat it in small stuff and a dyno I would say.



[drf256]

We'll see Mike.

My saw was supposed to be a 103 saw, but the roof came out too flat for my liking. I had to raise it 2* to get the arc I wanted. It's a peaky arc though. Is say less than 5% of my port area is open before 105.

My comp is at 240 after a tank. Another reason an exhaust raise was in order.
