Ok fellas help me out.

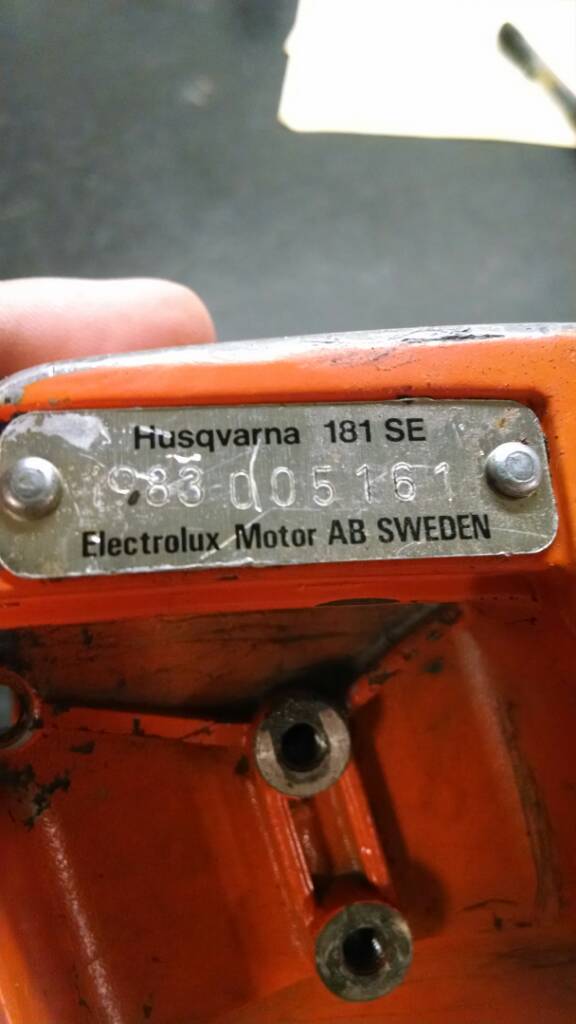

Here is the saw.

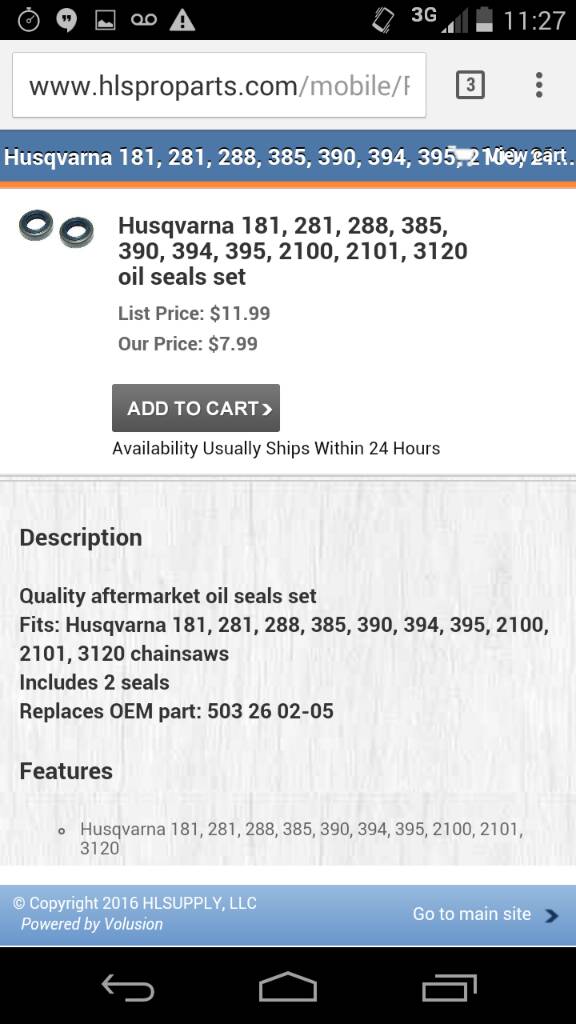

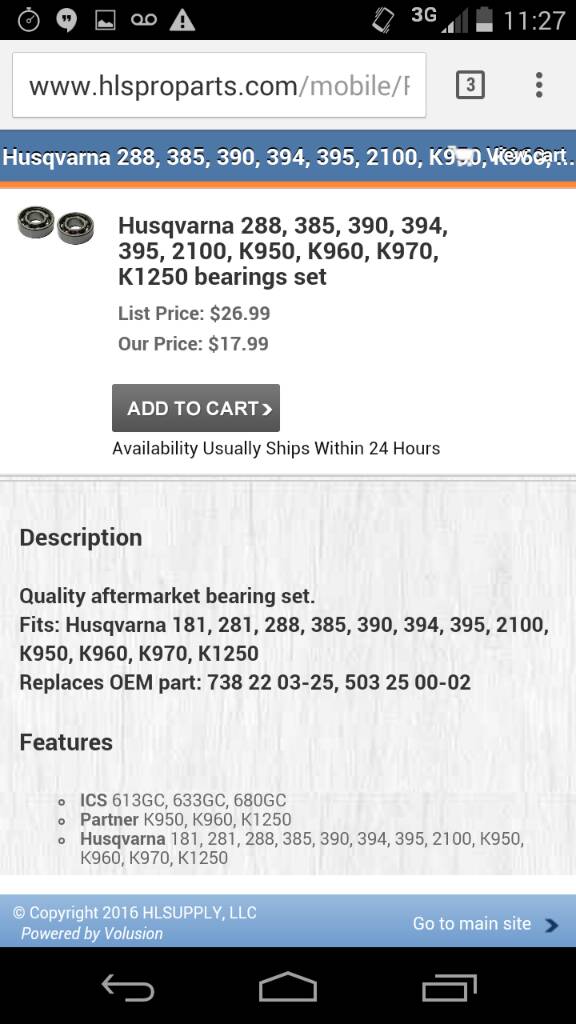

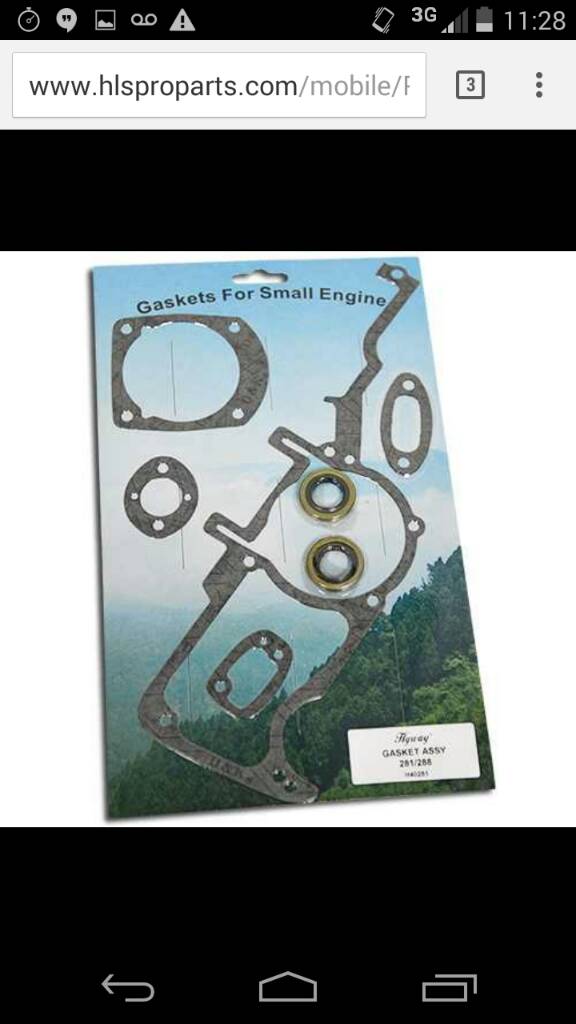

Here is the bearings and case set I ordered from HL supply.

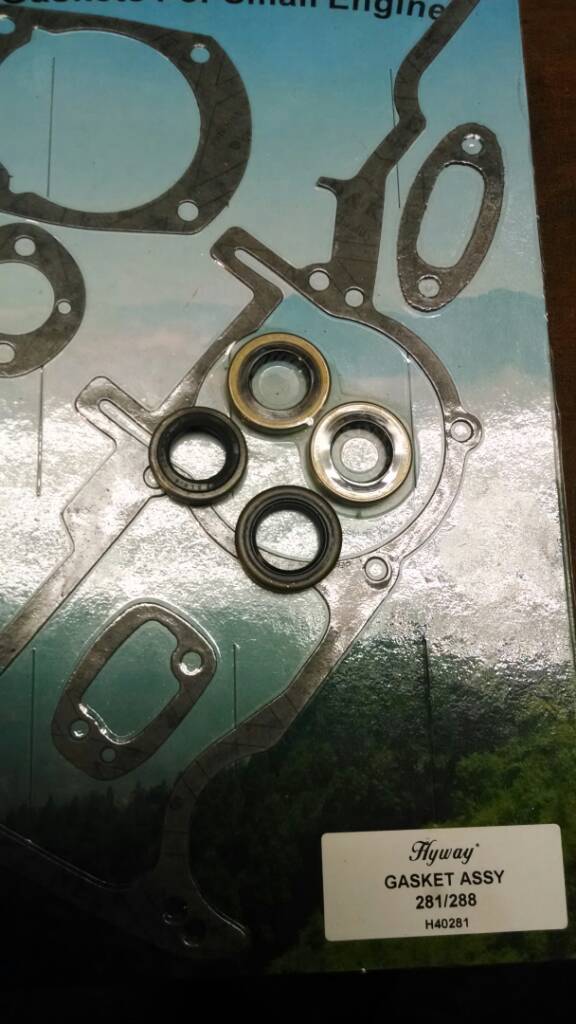

That being said, I received a pair of 6203 bearings, and a pair of identical seals. Here is the problem.

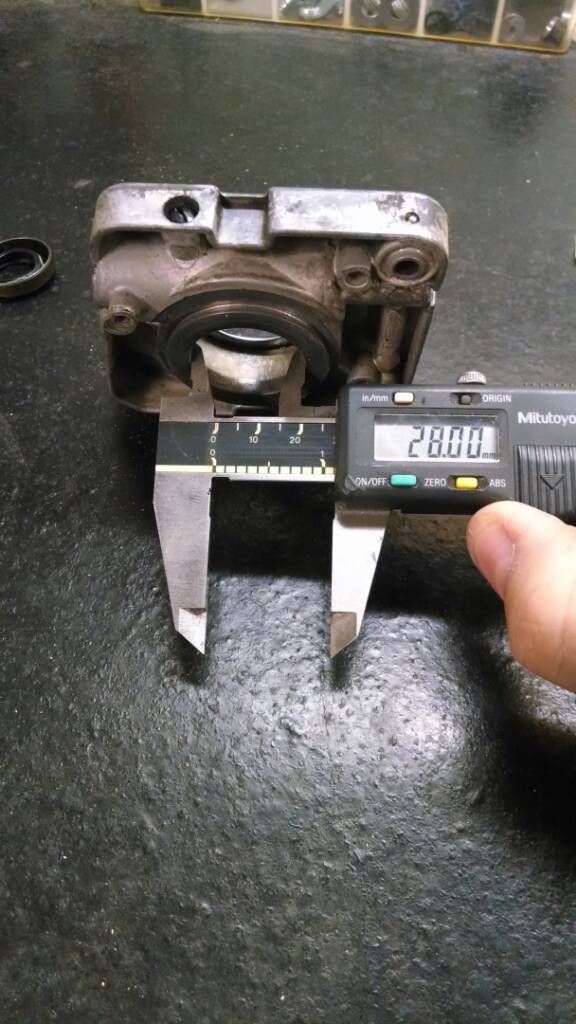

oil pump.
oil pump side seal.

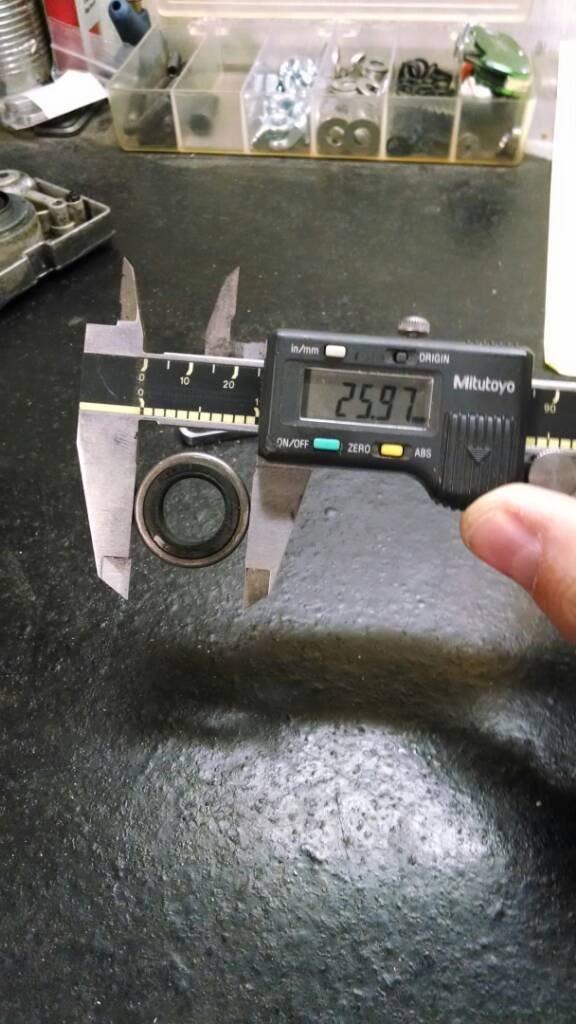

fw side seal.

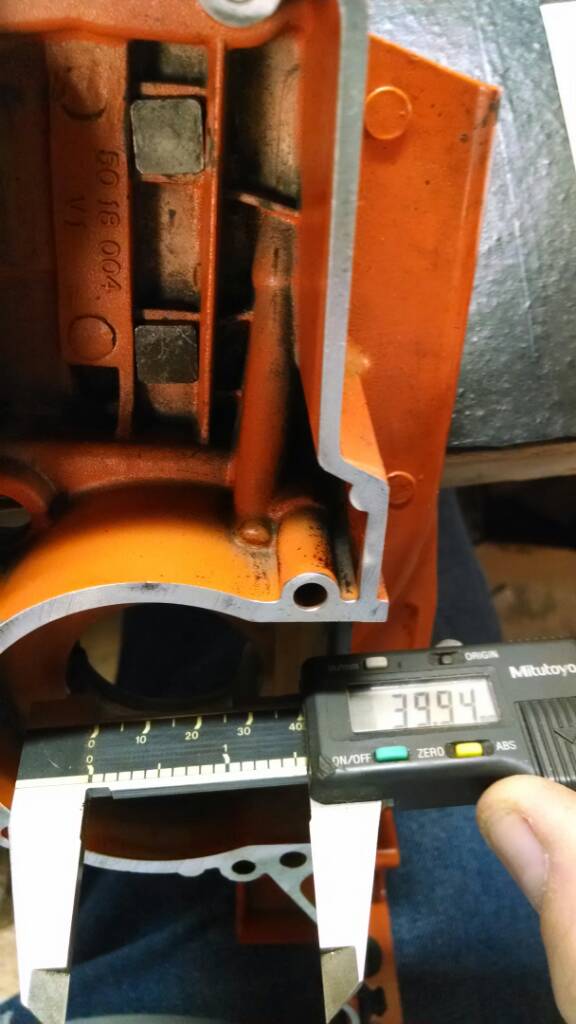

PTO bearing bore (6203)

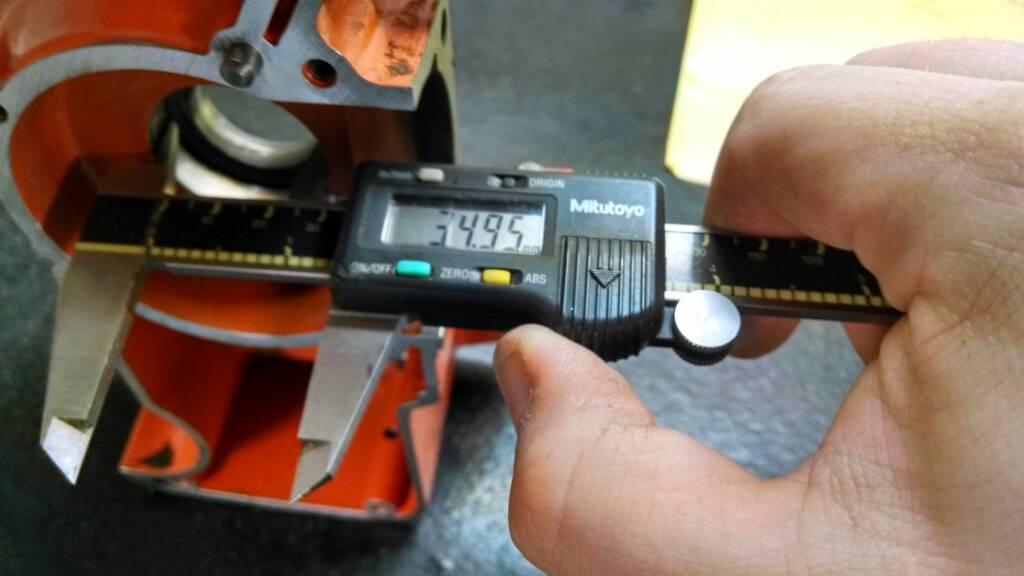

fw side bearing bore (6202)
case set as received.

Why won't this setup fit the 181 when it is listed that it will? Why is this saw different?


mdavlee

Hillbilly grinder
Local time
8:54 AM
User ID
279
Joined
Dec 28, 2015
Messages
14,194
Reaction score
64,604
Location
TN
Country flag
Ok fellas help me out.

Here is the saw.


Here is the bearings and case set I ordered from HL supply.



That being said, I received a pair of 6203 bearings, and a pair of identical seals. Here is the problem.
oil pump.
oil pump side seal.
fw side seal.
PTO bearing bore (6203)
fw side bearing bore (6202)
case set as received.

Why won't this setup fit the 181 when it is listed that it will? Why is this saw different?
The early 181 has a different crank. The later ones interchange.


Eccentric

Yes, we do have trees in Wyoming.
Local time
6:54 AM
User ID
143
Joined
Dec 24, 2015
Messages
279
Reaction score
832
Location
Northwestern Wyoming
Country flag
Yep. VERY early 181 used the 6202 bearing and a 61-272 series seal on the FW side. PTO side is the same as the later saws. Just use a 6202 and a 272xp seal on the FW side.

Only the first 181 IPL (1983 IIRC) shows the smaller bearing and seal. Yours is the first early 181 that I have seen pics of. My181SE has the larger bearing and seal on the FW side.

Can ya post a few pics of your early 181SE crankshaft?

Last edited:

Homelite410

Here For The Long Haul!
Local time
7:54 AM
User ID
399
Joined
Jan 3, 2016
Messages
1,794
Reaction score
9,330
Location
Belle Plaine
Country flag
I sure can. Tomorrow.

Can someone please move this to Chainsaws? When I posted, it only allowed builds or chainsaw gtg's under chainsaw.

Thanks.


Magic_Man

Oh Yea !
Local time
8:54 AM
User ID
9
Joined
Dec 4, 2015
Messages
1,151
Reaction score
3,560
Location
SE Ohio
This is interesting, I have a 181 coming tomorrow that might need seals and bearings too.


Eccentric

Yes, we do have trees in Wyoming.
Local time
6:54 AM
User ID
143
Joined
Dec 24, 2015
Messages
279
Reaction score
832
Location
Northwestern Wyoming
Country flag
This is interesting, I have a 181 coming tomorrow that might need seals and bearings too.

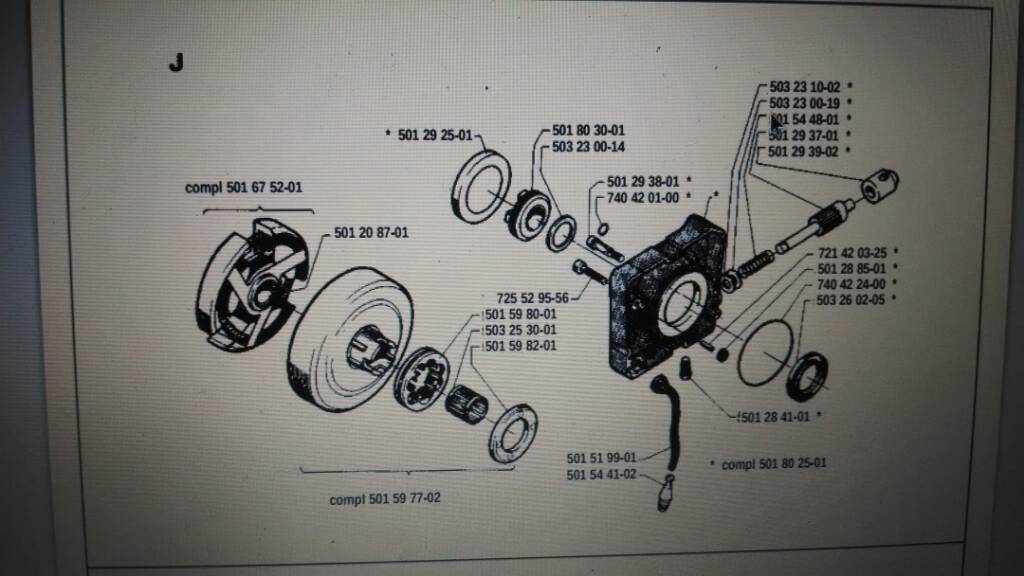

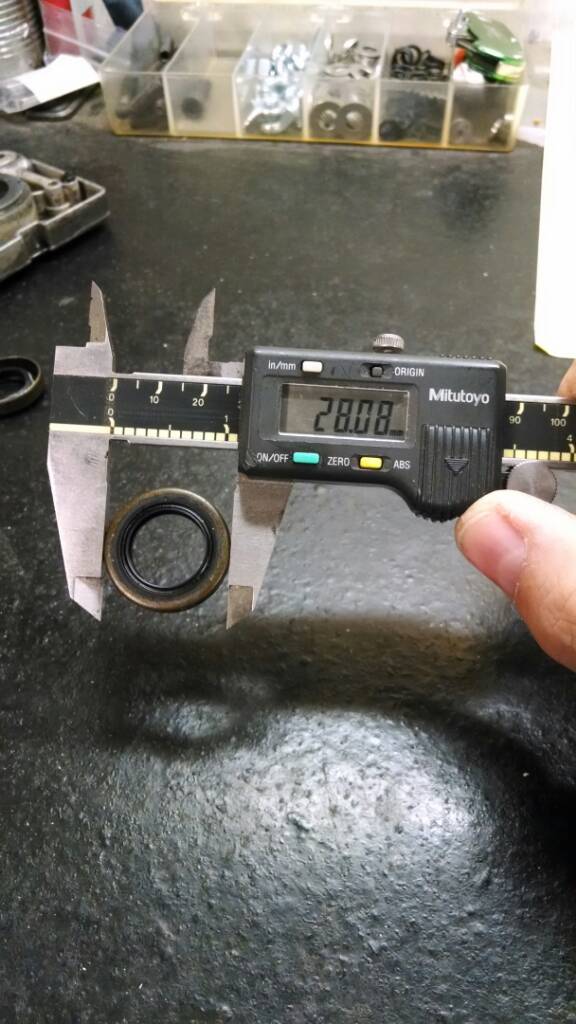

You'll know what you have once you pull the flywheel. Measure the diameter of the seal body and compare it to Mike's measurements above.

I suggest you change the seals, oil pump body o-ring, and oiler x-ring no mater what. I always replace them when I go through these saws. Cheap insuance.


jacob j.

Lord of Cargo Pants
GoldMember
Local time
5:54 AM
User ID
232
Joined
Dec 24, 2015
Messages
9,057
Reaction score
63,023
Location
Coastal Oregon
Country flag
That's about the earliest 181 I've ever seen. There was a two-page ad in the December 1982 issue of Chainsaw Age that announced the introduction of the 181. Yours is from that era.


jacob j.

Lord of Cargo Pants
GoldMember
Local time
5:54 AM
User ID
232
Joined
Dec 24, 2015
Messages
9,057
Reaction score
63,023
Location
Coastal Oregon
Country flag
Mike- I can send you the correct bearing and seal for the flywheel side on this- I have tons of 272 seals.


Homelite410

Here For The Long Haul!
Local time
7:54 AM
User ID
399
Joined
Jan 3, 2016
Messages
1,794
Reaction score
9,330
Location
Belle Plaine
Country flag
I got the parts now. I have a 359 seal that will work.

Aaron, which is the x-ring here?


Eccentric

Yes, we do have trees in Wyoming.
Local time
6:54 AM
User ID
143
Joined
Dec 24, 2015
Messages
279
Reaction score
832
Location
Northwestern Wyoming
Country flag
Little bugger just to the left of the big o-ring in the pic. Fits over a roll pin sticking out of the underside of the pump body. 501288501.
