Inside the MS500i - Snellerized Style

Discussion in 'Chainsaws' started by blsnelling, May 15, 2019.

  1. blsnelling

    blsnelling Friend of the Riff Raff

    Joined:
    Jan 8, 2016
    Messages:
    1,062
    Likes Received:
    5,890
    Trophy Points:
    407
    Location:
    Franklin, OH

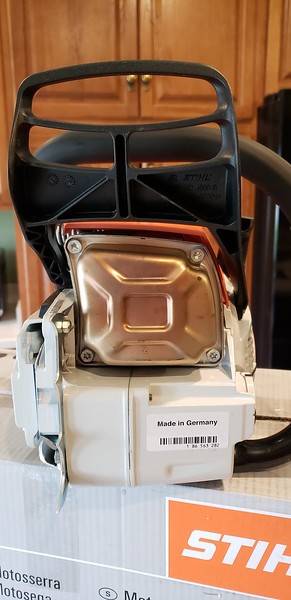

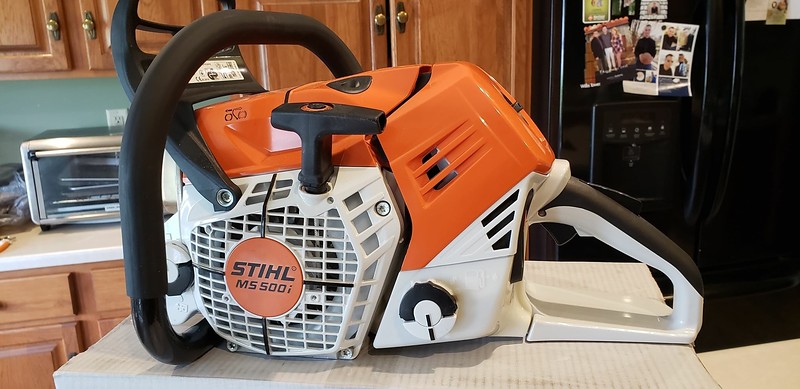

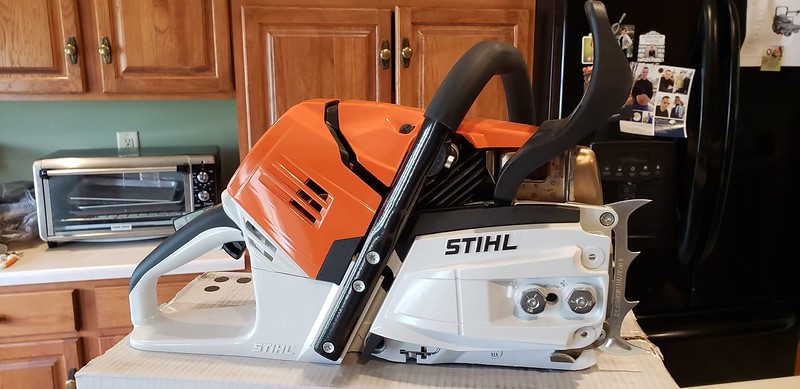

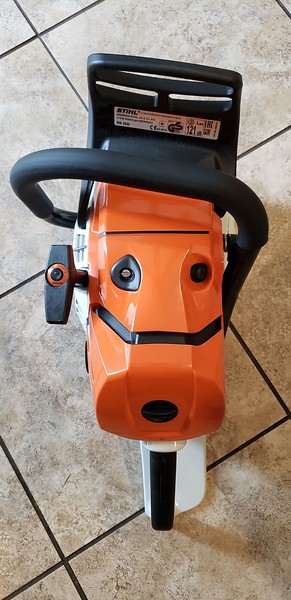

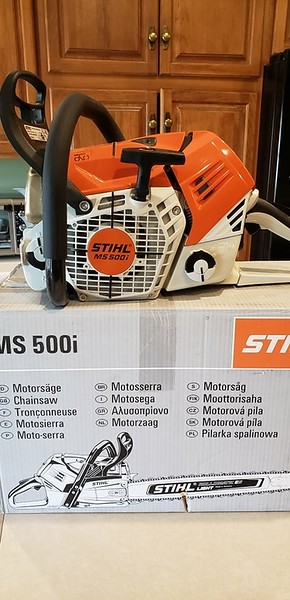

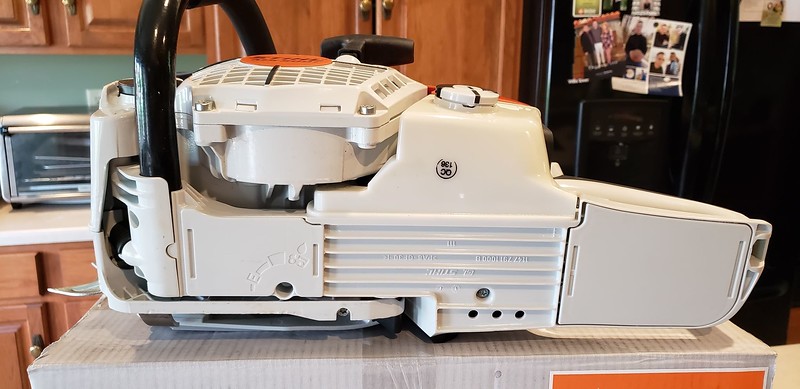

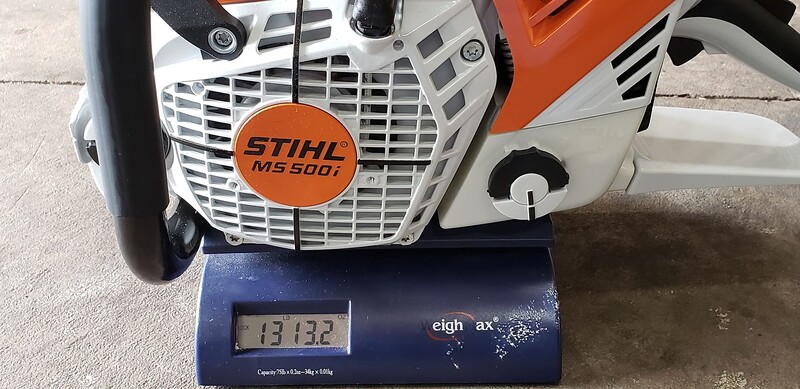

    I finally got my grubby hands on one of these bad boys. It showed up yesterday, straight off the boat from Greece. I wasn't feeling well last night, so tonight was the night.

    [​IMG]

    [​IMG]
    [​IMG]

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

    The first two things I noticed was that it started in only 4 pulls and had instant throttle response...brand new, straight out of the box, no fuel ever in it, and cold. It was then time to hit the wood pile. I have very little wood here, so only four cuts were made, basically to make sure it ran right. The cuts in this video are the very first cuts it made, shortly after the very first start. It ran very well with good power and not a single hiccup. It definitely has more power than a new MS462, as it should.



    It then went straight to the bench, just like most saws that I port.

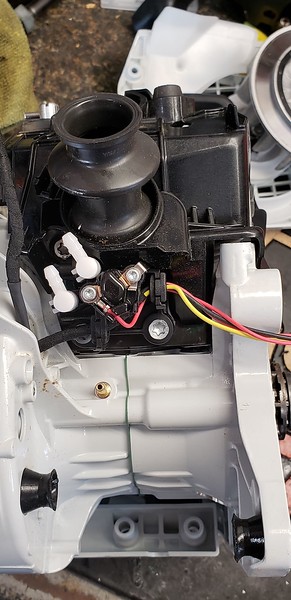

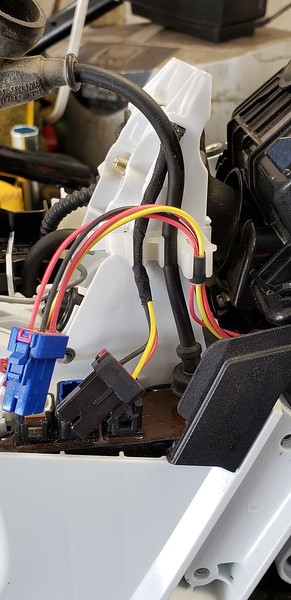

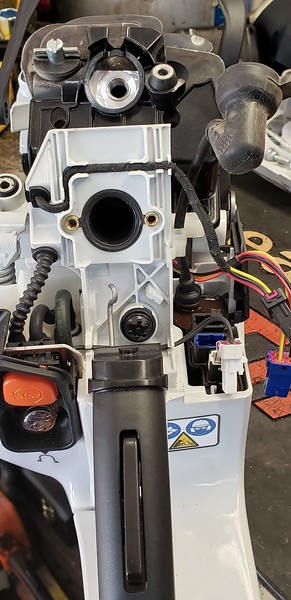

    These next couple of pics were simply for reference should I need them for reassembly.
    [​IMG]

    [​IMG]

    [​IMG]

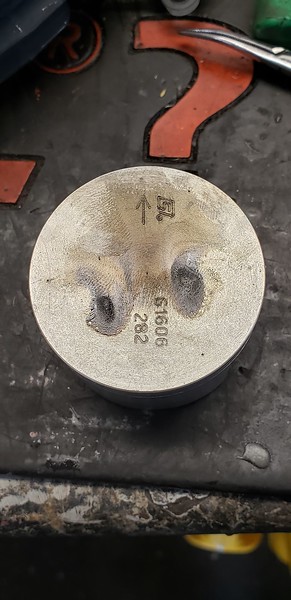

    Here's your burn pattern after the first 4 cuts.
    [​IMG]

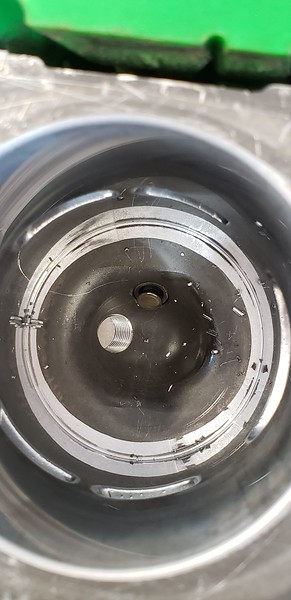

    I used a mandrel to cut the squishband. (Thanks Randy! It's the same one you made for me to cut 066/MS660s several years ago). I took the pic after the first cut so that the shape of the squishband would be more evident. I debated doing a popup on the piston, but chose to go with cutting the squishband since the combustion chamber is kind of odd shaped.
    [​IMG]

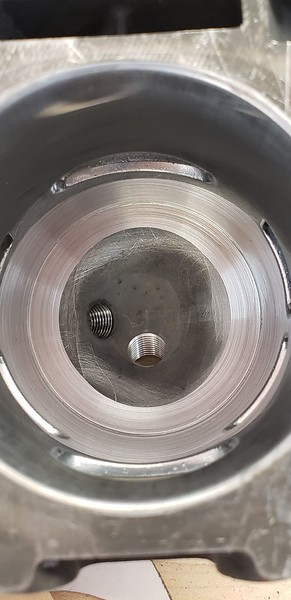

    After cutting, I use 120 grit and then 220 grit to smooth and even it up. The sanding will remove any inconsistencies introduced with the cutter. You simply sand until all of the cut surface has been sanded, indicating that there are now no low or high spots.
    [​IMG]

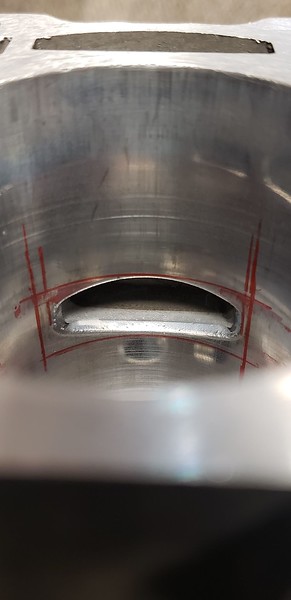

    Here's some of my port layout. I like to mark existing port edges, pin locations, and desired port edges.

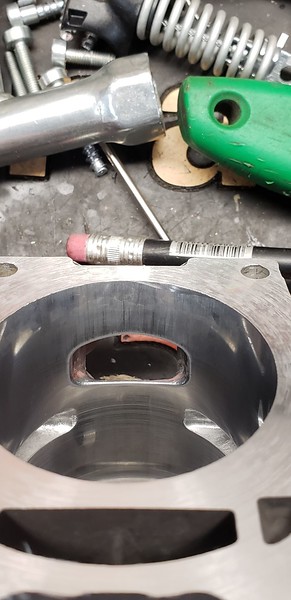

    The intake was smoothed and the roof slightly reshaped. It was not made larger in any dimension. There's very little room to widen the transfers due to the ring end location.
    [​IMG]

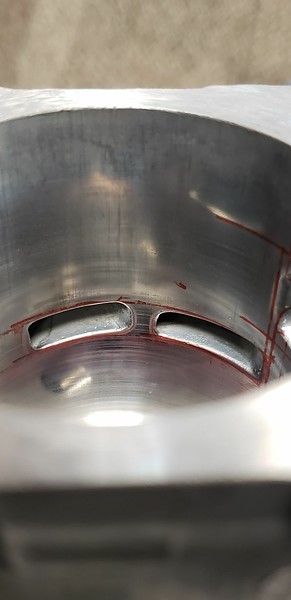

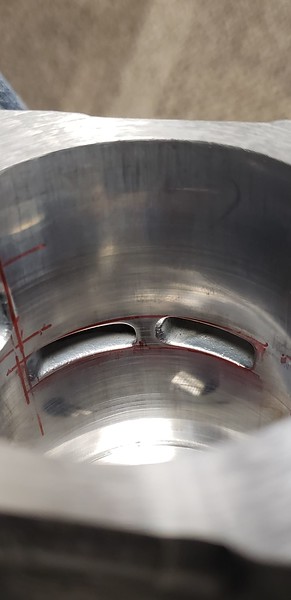

    This saw has very short blowdown, so the transfers were only leveled, not raising the front of the port at all. That's why you see a little of the NiSi lining remaining in the port. I left the primaries opening 2° before the secondaries. This is a technique I have done for several years. It's interesting to see Stihl incorporate that into this saw. By the way, these lines are remarked several times as I check and refine my work.
    [​IMG]

    [​IMG]

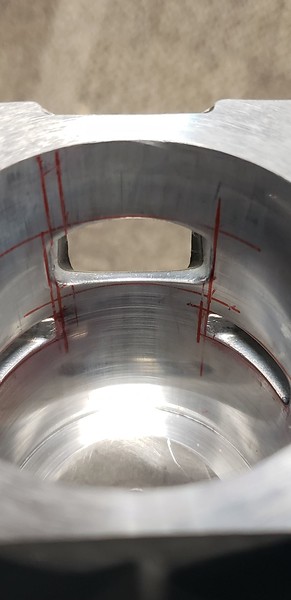

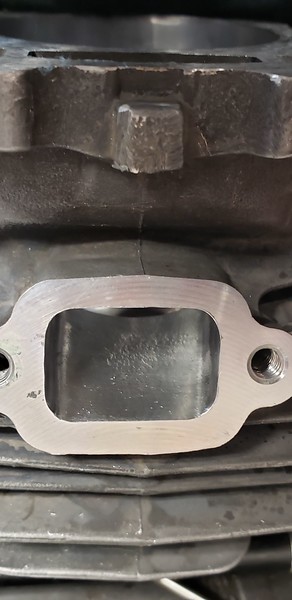

    The exhaust was raised several degrees. This gave me some additional blowdown and made up for dropping the cylinder.
    [​IMG]

  2. blsnelling

    blsnelling Friend of the Riff Raff

    Joined:
    Jan 8, 2016
    Messages:
    1,062
    Likes Received:
    5,890
    Trophy Points:
    407
    Location:
    Franklin, OH

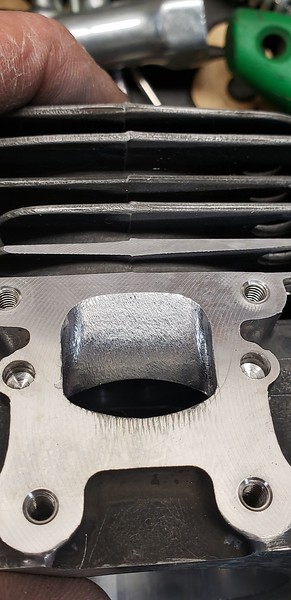

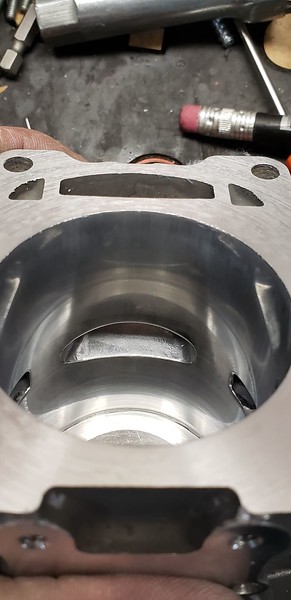

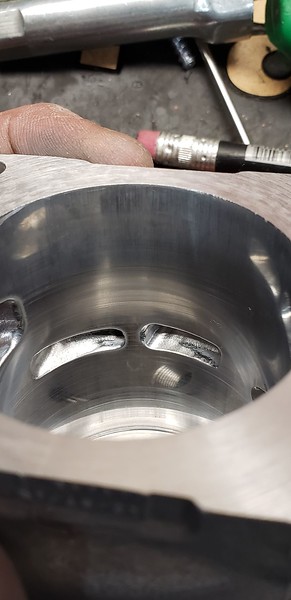

    Here's some of the final port work.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

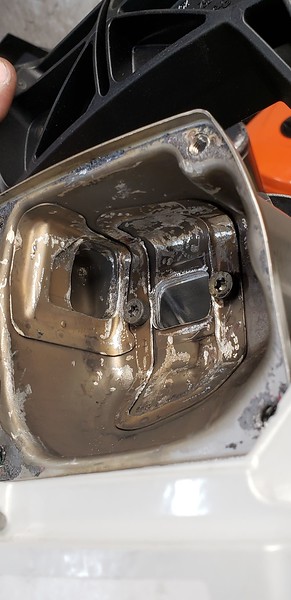

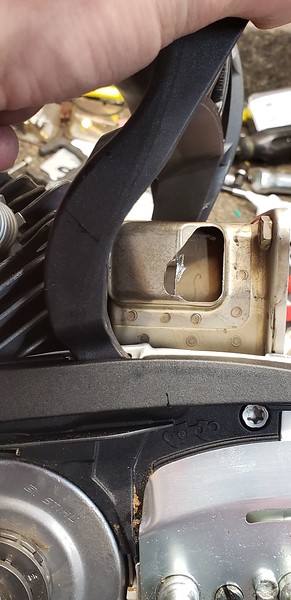

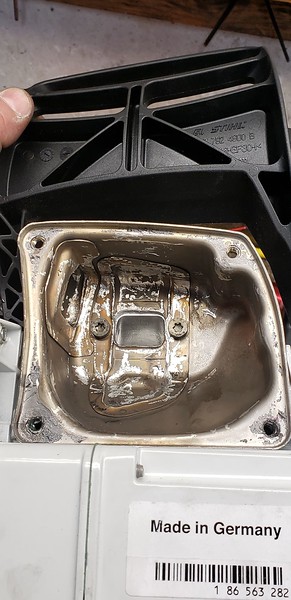

    OK, I'm probably going to catch some flack for this ugly grinding, but oh well. It's the inside of the muffler and I'm not sure how you'd make it pretty anyway. I suppose bead blasting would help, but I don't have a sand blaster. Fire away! Lol :)

    I pitch my tent in the "Just let it flow" camp. I am not of the opinion that there is any performance tuning to these muffler. I believe it's all for sound and decibel control. I simply want it to exit the saw as fast and easily as possible. I could be wrong, but that's how I do it.
    [​IMG]

    [​IMG]

    [​IMG]

  3. blsnelling

    blsnelling Friend of the Riff Raff

    Joined:
    Jan 8, 2016
    Messages:
    1,062
    Likes Received:
    5,890
    Trophy Points:
    407
    Location:
    Franklin, OH
    Here's where I'm going to disappoint you and not give you and videos of it cutting, no evidence that I've made any kind of improvement. It was going on midnight here when I got it done. Weather permitting, I'll have a video of it in the wood tomorrow evening.


  4. Hinerman

    Hinerman Here For The Long Haul!

    Joined:
    Jan 20, 2016
    Messages:
    3,151
    Likes Received:
    13,907
    Trophy Points:
    421
    Location:
    Muskogee, OK
  5. jacob j.

    jacob j. Mastermind Approved!

    Joined:
    Dec 24, 2015
    Messages:
    4,340
    Likes Received:
    28,278
    Trophy Points:
    583
    Location:
    Beezlebubba
    Very cool Brad - nice work so far.

  6. AlfA01

    AlfA01 Powered by Olive Oil and FETA Cheese..

    Joined:
    Mar 8, 2018
    Messages:
    3,577
    Likes Received:
    24,379
    Trophy Points:
    495
    Location:
    Evia, Greece
    Nice work there, Brad. Mine is ported also, but I have a few changes I want to make before it's complete. :)

  7. Wonkydonkey

    Wonkydonkey Pinnacle OPE Member

    Joined:
    May 14, 2017
    Messages:
    976
    Likes Received:
    2,110
    Trophy Points:
    240
    Location:
    Nearly in the middle of know where
    It’s good to see more guys getting there fingers into these..new 500i's.


    Who’s gonna be next ?

    Btw Can’t wait for the vid 's

  8. drf256

    drf256 Dr. Richard Cranium (“RC” to Muh pals)

    Joined:
    Dec 29, 2015
    Messages:
    6,942
    Likes Received:
    44,442
    Trophy Points:
    543
    Location:
    Strong Island NY
    Very nice.

    I bet the injection is responsible for the instant throttle response. It’s always been more reliable at that.

    I wonder what a small 90* bent piece of steel added to the PTO muffler flange bolt would do to sound and performance? Could be easily removed. Like the area in blue.

  9. ferris

    ferris Pinnacle OPE Member

    Joined:
    Feb 12, 2016
    Messages:
    490
    Likes Received:
    1,942
    Trophy Points:
    223
    Location:
    Germany
    Cool more 500i :)

  10. Mastermind

    Mastermind Leader Of The Clique Staff Member

    Joined:
    Dec 3, 2015
    Messages:
    23,216
    Likes Received:
    133,112
    Trophy Points:
    931
    Location:
    Banner Springs Tennessee
    Excellent thread Mr Snelling. Good to see you working on saws.

    I'm planning on leaving mine unfueled for awhile. Once I get another one here....I'll start modding them. Good to have one for a baseline....

  11. Woodpecker

    Woodpecker Wooden Member

    Joined:
    Jan 17, 2016
    Messages:
    854
    Likes Received:
    4,104
    Trophy Points:
    264
    Location:
    The middle of the land shaped like a hand
    Nice work Brad. I'm not sure anybody who has ever done any muffler work can fault you for your work bud, but this is a chainsaw forum so prolly will happen:tiburon:

  12. qurotro

    qurotro Cookie Cutter

    Joined:
    May 19, 2018
    Messages:
    294
    Likes Received:
    1,592
    Trophy Points:
    203
    Location:
    Ar
    Nice work! Those 500i are getting more interesting with you guys magic hands!

  13. blsnelling

    blsnelling Friend of the Riff Raff

    Joined:
    Jan 8, 2016
    Messages:
    1,062
    Likes Received:
    5,890
    Trophy Points:
    407
    Location:
    Franklin, OH
    I'll be the first to say it.... That's some awful looking grinding!!!

  14. StephK87

    StephK87 Pinnacle OPE Member

    Joined:
    Feb 21, 2016
    Messages:
    320
    Likes Received:
    3,603
    Trophy Points:
    255
    Location:
    Germany
    Meanwhile in Germany ... I'm still waiting for my jug :qmiedo:

    Really nice Brad! Can't wait for the video :aplastao:

  15. blsnelling

    blsnelling Friend of the Riff Raff

    Joined:
    Jan 8, 2016
    Messages:
    1,062
    Likes Received:
    5,890
    Trophy Points:
    407
    Location:
    Franklin, OH
    I changed the title of the video ;)

    Semotony, Wonkydonkey and RI Chevy like this.
  16. USMC615

    USMC615 God...Country...Corps

    Joined:
    Mar 1, 2016
    Messages:
    9,303
    Likes Received:
    47,556
    Trophy Points:
    540
    Location:
    Mid-Georgia
    Nice!

    thedude74, RI Chevy and qurotro like this.
  17. Woodpecker

    Woodpecker Wooden Member

    Joined:
    Jan 17, 2016
    Messages:
    854
    Likes Received:
    4,104
    Trophy Points:
    264
    Location:
    The middle of the land shaped like a hand
    Eh it's just going to get covered with carbon and unburned erl anyway. Few tanks and you wont be able to see it. However, if you're like me you won't be able to "unsee" it.;)

    Semotony, ferris, Hinerman and 4 others like this.
  18. blsnelling

    blsnelling Friend of the Riff Raff

    Joined:
    Jan 8, 2016
    Messages:
    1,062
    Likes Received:
    5,890
    Trophy Points:
    407
    Location:
    Franklin, OH
    Compression was just shy of 180 after it cooled off last night.

  19. blsnelling

    blsnelling Friend of the Riff Raff

    Joined:
    Jan 8, 2016
    Messages:
    1,062
    Likes Received:
    5,890
    Trophy Points:
    407
    Location:
    Franklin, OH
    At least we know it still runs after porting :)

  20. RI Chevy

    RI Chevy DollyKitaStihlvarna Runner

    Joined:
    May 7, 2016
    Messages:
    18,792
    Likes Received:
    44,490
    Trophy Points:
    497
    Location:
    Ocean State
    I think it's cool to see how each builder goes about modding these saws. Their own styles and theories. No vanilla ice cream here.
