West German 024 Super-With Build Pics

[drf256]

The next step is to cut the fins off the 026 jug.

Ever see this emblem on a Still head?



Sent from my iPad using Tapatalk



[drf256]

The jug



Sent from my iPad using Tapatalk



[drf256]

Sent from my iPad using Tapatalk



[drf256]

Sent from my iPad using Tapatalk



[drf256]

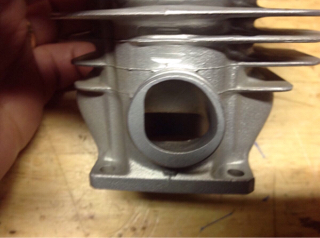

I tried to go square where the transfer opened on the intake side. I spent a lot of time on port shape on this jug. It doesn't fully show, but the ports are squared in certain spots and rounded in others. The glass beading really gave the intake port a factory type finish when done. It appears fully stock.




Sent from my iPad using Tapatalk



[Moparmyway]

NICE work Doc !!



[drf256]

Thank you my friend.

You'll cut with it when it's done, before it heads north of the border.



[drf256]

Piston cut flat. Windows relieved. Casting flash smoothed.

.058 taken out of this chamber and it was cut flat. Strangely enough, I'm not free porting at TDC. Care has to be taken to not touch the exhaust roof or floor on this model. Just widen and blend into the factory port arcs.



Sent from my iPad using Tapatalk



[drf256]

Sent from my iPad using Tapatalk



[stihl_head1982]

Not uncommon



[Welder56]

Nice work buddy!! Super clean.



[Welder56]

Looking forward to this one. Im Pumped to run er



[paragonbuilder]

I ran Mel's 024/026 hybrid and it really rips, and it's nice and light. I'd like to see the difference between this and a ported 024 jug. Just wondering if the extra work cutting the fins and such is worth it. I've got an 024 sitting here...


Sent from my iPhone using Tapatalk



[Backtroller]

Al, I wonder when that saw was made? That original cylinder sure looked like an antique.

Great "factory looking" work. I like the glass bead effect. Very nice.



[paragonbuilder]

Why is the intake d shaped like this?


Sent from my iPhone using Tapatalk



[drf256]

I ran Mel's 024/026 hybrid and it really rips, and it's nice and light. I'd like to see the difference between this and a ported 024 jug. Just wondering if the extra work cutting the fins and such is worth it. I've got an 024 sitting here...


Sent from my iPhone using Tapatalk

You're welcome to the cylinder on the saw Dan.

It's 42 vs. 44mm. Theres no replacement for displacement. Youre leaving alot on the table with the smaller jug.

Why is the intake d shaped like this?


Sent from my iPhone using Tapatalk

I think its because of the relation of the port vs. carb entry point. The flat wall likely flows better around a curve.



[paragonbuilder]

And what about case volume? Do the jugs need to be ported differently on the 024 than the 026?


Sent from my iPhone using Tapatalk



[paragonbuilder]

And which saw will be stronger?


Sent from my iPhone using Tapatalk



[drf256]

This is an 024S. Bigger case than 024 regular and same as an 026.



[paragonbuilder]

Ok. So essentially you are turning it into an 026 with 024 badging. So fins need to be cut to fit 024 top cover?
