Tillotson HK carb parts list wanted

[old_sir_henry]

Hello, I'm looking for a parts list of all (or at least most of) the Tillotson HK carb models, like the
one Tillotson provided e.g. for the HU line of carbs (http://tillotson.ie/wp-content/uploads/2015/07/HUPartsList.pdf).
I do have two versions of the HK Service Manual, 5/1976 and 11/1984 but that's not what I'm looking for.
Explanation:
The HK carbs greatly rely on the correct Metering Gasket of which several different ones were made:

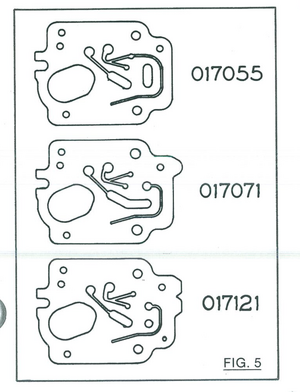

(Gaskets listed in 1976 service manual)

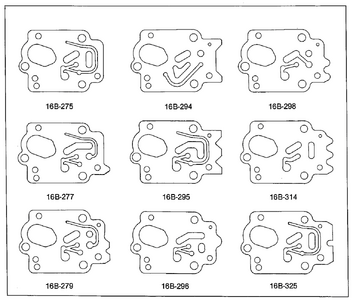

(Gaskets listed in 1984 manual).
It would be of great help to have a reference which of the many gaskets fits which HK-model, especially when dealing with older HK-types.

Tillotson themselves don't seem to provide useful information of the entire HK line.



[ray benson]

@old_sir_henry
Haven't seen one like the HU line of carbs that you posted. This is all I can add. Could you post the 1975 service manual if possible?



[old_sir_henry]

Thank's Ray. You inbox should contain the 1976 Service Manual.
This HK-Parts List I already have but thanks anyway.
