Tillotson HK carb parts list wanted

[old_sir_henry]

Hello, I'm looking for a parts list of all (or at least most of) the Tillotson HK carb models, like the
one Tillotson provided e.g. for the HU line of carbs (http://tillotson.ie/wp-content/uploads/2015/07/HUPartsList.pdf).
I do have two versions of the HK Service Manual, 5/1976 and 11/1984 but that's not what I'm looking for.
Explanation:
The HK carbs greatly rely on the correct Metering Gasket of which several different ones were made:

(Gaskets listed in 1976 service manual)


(Gaskets listed in 1984 manual).
It would be of great help to have a reference which of the many gaskets fits which HK-model, especially when dealing with older HK-types.

Tillotson themselves don't seem to provide useful information of the entire HK line.



[ray benson]

@old_sir_henry
Haven't seen one like the HU line of carbs that you posted. This is all I can add. Could you post the 1975 service manual if possible?



[old_sir_henry]

Thank's Ray. You inbox should contain the 1976 Service Manual.
This HK-Parts List I already have but thanks anyway.



[oddsaws]

I was putting a kit on a Tillotson HK21C yesterday and had the same dilemma. I tore the original gaskets disassembling and threw them away.

Had a hard time finding an IPL also but have the repair kit list.

The kit I ordered was a RK-34HK, I received a RK-36HK. Couldn’t get hold of the seller about it but noticed the gaskets still matched. I did not receive 3 gaskets like shown on the Tillotson website. I had two different middle gaskets in the kit and decided to go with the 16B-314 shown in your diagram as it seemed to line up with the lines on the plastic metering assembly.

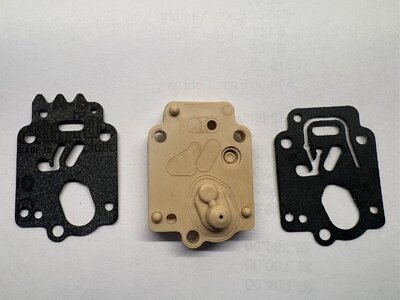

Pic of what I have (going to use gasket on the left):

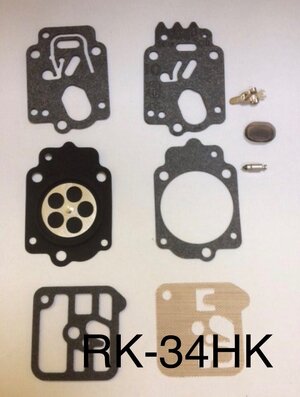

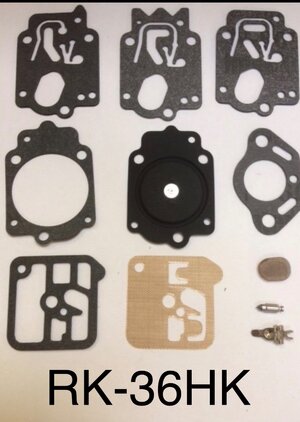

Pics from Tillotson website:



[oddsaws]

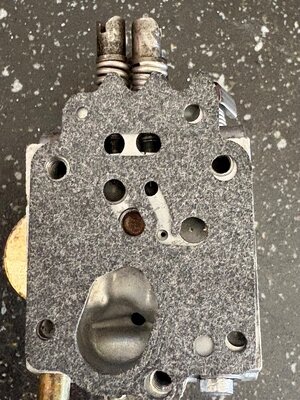

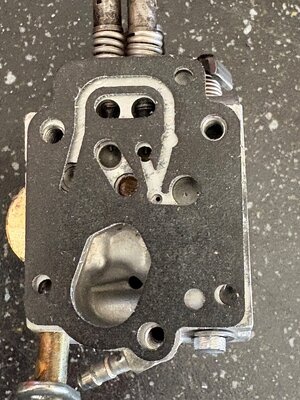

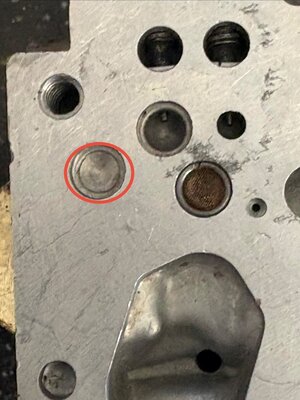

Here are the gaskets on the carb body. I’ve highlighted an area that looks like a plug, so there might not be any reason to flow fuel here like the other gasket would.



[oddsaws]

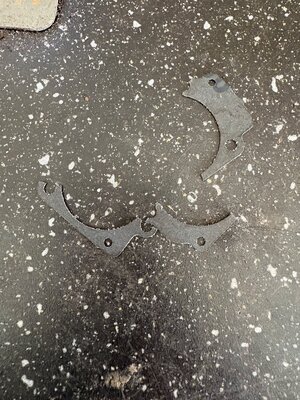

And I just broke the other gasket while putting it back together….

Guess I’ll be searching out another kit later



[hacskaroly]

And I just broke the other gasket while putting it back together….

Guess I’ll be searching out another kit later

That always sucks!
