HELP! Stihl 076 AV Super- Bogs and Dies When Hot

lehman live edge slab

Live Action
Local time
10:13 PM
User ID
3953
Joined
Sep 2, 2017
Messages
3,688
Reaction score
12,839
Location
Mn
Country flag
The newest 076 ipl I have showing the different ignitions used on bottom


lehman live edge slab

Live Action
Local time
10:13 PM
User ID
3953
Joined
Sep 2, 2017
Messages
3,688
Reaction score
12,839
Location
Mn
Country flag
The latest ipl of the 076, shows the two different carbs and the extra spacer and different air filter surrounds because the super ran an extra 1/2” spacer and walbro carb vs the tillotson of the 075 and standard 076


chilipeppermaniac

Well-Known OPE Member
GoldMember
Local time
11:13 PM
User ID
7092
Joined
Aug 20, 2018
Messages
40
Reaction score
45
Location
Md
Country flag

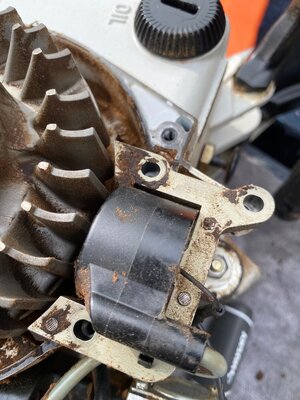

You could always test the ignition and retrofit it with a module



BuffaloBill

Well-Known OPE Member
Local time
10:13 PM
User ID
20843
Joined
Nov 27, 2021
Messages
26
Reaction score
100
Location
Wisconsin
Country flag

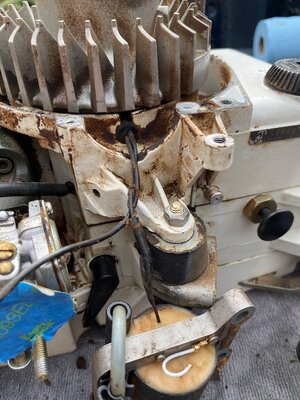

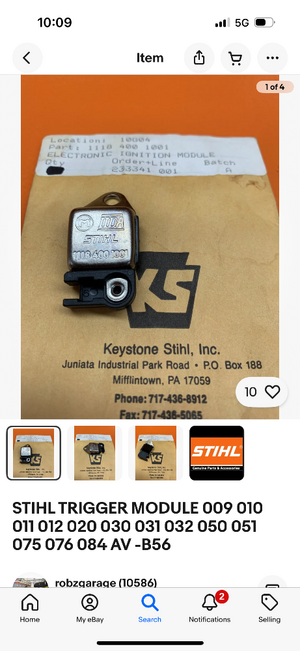

Have you found a solution for your lack of spark? I fixed up an 076 Super a few years ago. Its main problem was no spark. The coil seemed to test ok so began searching for a replacement trigger plate. Mine has the doughnut-shaped one. I did find an NOS one on eBay. It’s run fine since replacing that and restoring the saw.

I x-rayed the failed doughnut at work, thinking I would attempt to draw out the circuit someday from the x-ray pics, and dig into the potting compound to replace the failed components. I assume this one uses an SCR as the switching component. Below find pics of said trigger module, and the saw.


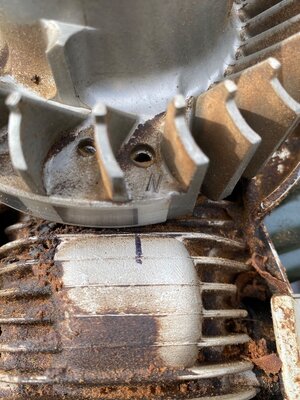

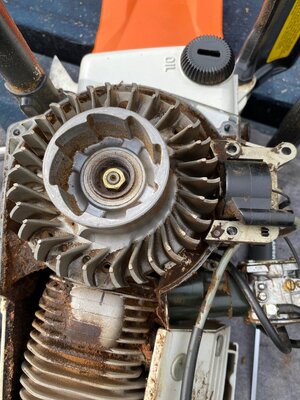

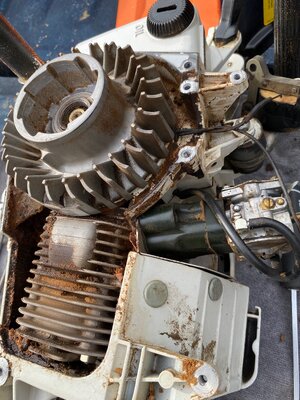

Attachments

  • IMG_2341.jpeg
    14.7 KB · Views: 8
  • IMG_1512.jpeg
    223.8 KB · Views: 8
  • IMG_1486.jpeg
    120.4 KB · Views: 9
  • image.jpeg
    162.9 KB · Views: 9
  • image.jpeg
    159.9 KB · Views: 9
