Source for obsolete crank seals

Woodwackr

Super OPE Member
GoldMember
Local time
3:33 PM
User ID
28333
Joined
Jan 18, 2024
Messages
578
Reaction score
1,441
Location
ID
Country flag
I’m starting to work on all the Shindaiwa saws I have…in pieces, and have discovered that Shindaiwa/Echo has replaced one seal with an incorrect one. Seal in question is the FW side on the early 550-575 saws with the smaller, 11mm pin, 12mm FW shaft crank. Specs are: 12mm/19mm/4.5mm. (22150-21250)
They replaced it with the updated 22155-21250 (v505000140) which is 13mm/19mm/4.5mm. Oops.
Maybe they expected you to upgrade the crank as well :p

So, is there any reference material that lists seals by their dimensions rather than a part#?
There may well be an equivalent Echo seal but I have no idea how to even look for it.
My local dealer doesn’t deal much with saws so is trying but not a lot of help on that one part. He was able to order all the other seals and bearings.

I’ll most likely be cutting my own case gaskets as they are NLA and I only have 1 :p


Gullet

Here For The Long Haul!
Local time
4:33 PM
User ID
16836
Joined
Jun 17, 2021
Messages
2,416
Reaction score
12,450
Location
Arkansas
Country flag
Download the Oregon Sprocket Reference pdf & it will show crank diameter of many different makes models & go from there.

Echo cs4000, 4500, 4600, 5000, 5500 all have .472 cranks.
The parts houses MIGHT list the actual dimensions of the seal.


jacob j.

Lord of Cargo Pants
GoldMember
Local time
2:33 PM
User ID
232
Joined
Dec 24, 2015
Messages
9,012
Reaction score
62,719
Location
Coastal Oregon
Country flag

Shane¹

Pinnacle OPE Member
Local time
5:33 PM
User ID
15023
Joined
Dec 21, 2020
Messages
1,055
Reaction score
2,615
Location
Kentucky
Country flag
Parts tree says they have 12 in stock not sure if they are the right size or not


Al Smith

Here For The Long Haul!
Local time
5:33 PM
User ID
537
Joined
Jan 14, 2016
Messages
6,195
Reaction score
13,720
Location
North western Ohio
Country flag
I have the master interchange book published by Bearings Inc .That lists nearly every seal ever made .However Stihl for an example has many seals they own the patent rights to world wide .Those however despite Stihl often can be cross checked to something that will work but it takes a lot of research to do so .An example fresh in my mind is the clutch side seal for the Stihl 042/048 .According to Stihl NLA 9640-003-3990 .20x35.8 x 4 .Type those into Google you can find them .


Woodwackr

Super OPE Member
GoldMember
Local time
3:33 PM
User ID
28333
Joined
Jan 18, 2024
Messages
578
Reaction score
1,441
Location
ID
Country flag
I have the master interchange book published by Bearings Inc .That lists nearly every seal ever made .However Stihl for an example has many seals they own the patent rights to world wide .Those however despite Stihl often can be cross checked to something that will work but it takes a lot of research to do so .An example fresh in my mind is the clutch side seal for the Stihl 042/048 .According to Stihl NLA 9640-003-3990 .20x35.8 x 4 .Type those into Google you can find them .

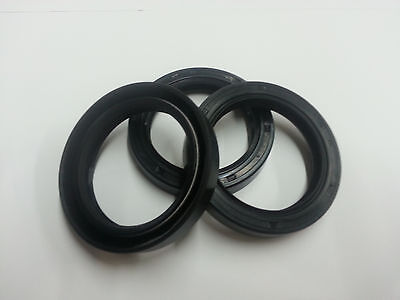

Will order some of these and see 😀


Powerstroke Cowboy

Pinnacle OPE Member
GoldMember
Local time
3:33 PM
User ID
26178
Joined
Feb 23, 2023
Messages
1,300
Reaction score
3,858
Location
Montana
Country flag
Good! I've run into some saws where you can't find seals for them. I just measure em and look online till I find what I want. Same with saws that have the seal built into the bearing.
