Post up your ported cylinder Artwork

[srcarr52]

View attachment 170469

I like the larger flats on end, mine are starting to get a little rounded off. $60 a collet is what CC wants for them and I don't think they mark up that stuff much at all.



[Wilhelm]

4mm
A little smaller than you picture...
I believe it's proprietary/specific to Nakanishi and around $60 a pop.

That is indeed much smaller than I thought.

Apologies, my bad.



[beaglebriar]

View attachment 170469

They look great. So when are you going into full production? [emoji6]



[wcorey]

Unfortunately I harbor a particular abhorrence for production machining.
One and done is the only way to keep it fun...

Someone with a screw machine should be able to pop these out like candy, don't know why they need to be so expensive.
Nothing about them that needs to be particularly precision, there are lots of similar collets that are 8 bucks...



[beaglebriar]

Little polishing tonight.



[redlight066]

Can chase with a triangle file to some degree but even the really tiny Swiss jobbies still don’t have a sharp enough corner for this small of pitch.

Feather file. Hard to find but invaluable for cleaning up fine threads.



[beaglebriar]

I like the larger flats on end, mine are starting to get a little rounded off. $60 a collet is what CC wants for them and I don't think they mark up that stuff much at all.

I think a better quality wrench might help. The little stamped jobby isn't all that great.



[David Young]

Unfortunately I harbor a particular abhorrence for production machining.
One and done is the only way to keep it fun...

Someone with a screw machine should be able to pop these out like candy, don't know why they need to be so expensive.
Nothing about them that needs to be particularly precision, there are lots of similar collets that are 8 bucks...

I'd be interested in one also,

I thought they were 70 bucks regardless its enough that its hard to swallow.



[AlfA01]

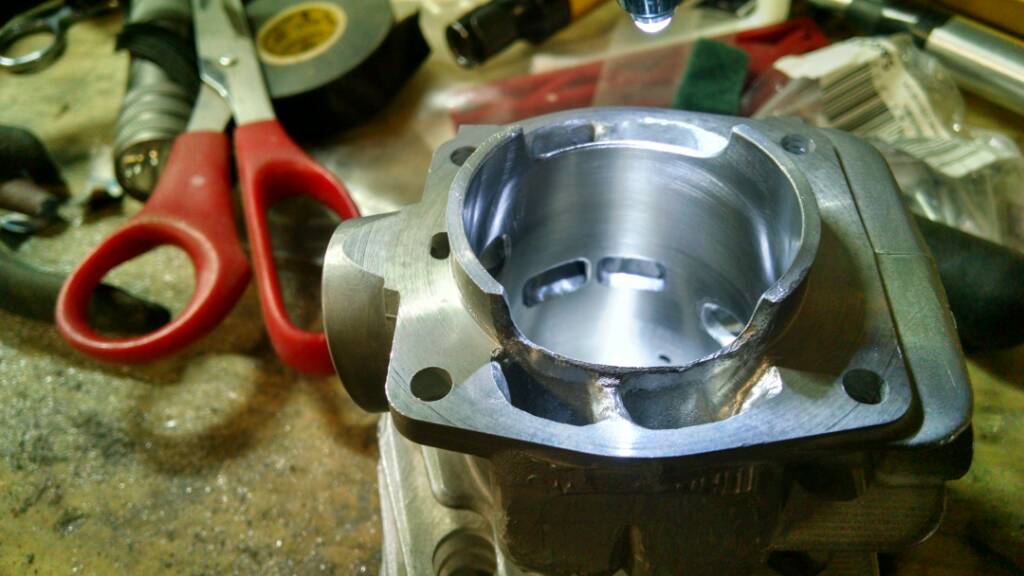

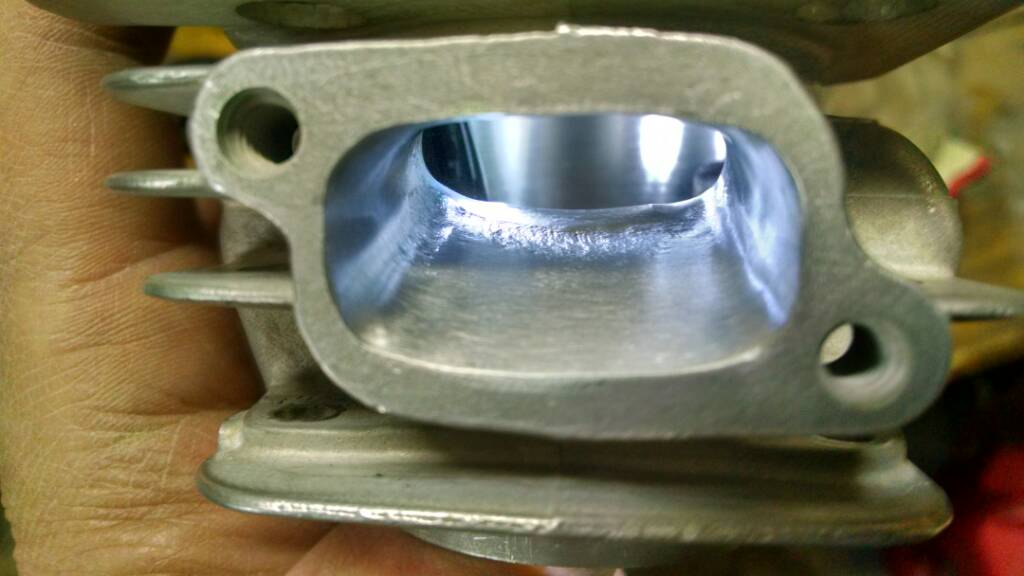

9010 with fingers roughed in and exhaust polished up.

I also media blasted the exterior. Ran out of media before I got finished.

Edit: better pic added.



[AlfA01]

Little polishing tonight.

Looks great DJ.



[ChipsFlyin]

9010 with fingers roughed in and exhaust polished up.

I also media blasted the exterior. Ran out of media before I got finished.

Edit: better pic added.

View attachment 170666

View attachment 170662

View attachment 170663

View attachment 170664

That's cool seeing the fingers through the exhaust!



[beaglebriar]

Looks great DJ.

Thanks Dan. Those fingers look awesome!



[AlfA01]

Thanks Dan. Those fingers look awesome!

Thanks DJ. Those things about drove me crazy. At one point I was ready to give up.



[Stump Shot]

39cc's of raging power.
339xp



[beaglebriar]

39cc's of raging power.
339xp
View attachment 170681

Looks good Steve. Are they open port? I had a 338 but never tore it apart.



[AlfA01]

39cc's of raging power.
339xp
View attachment 170681

Looking good. That's a beast Steve. Maybe you should be using two hands to control the raging powa!



[beaglebriar]

Thanks DJ. Those things about drove me crazy. At one point I was ready to give up.

Kinda in too deep to quit once you start grinding those in. Lol



[Stump Shot]

Looks good Steve. Are they open port? I had a 338 but never tore it apart.

The 339xp is closed port clam shell design.
Actually a fairly well laid out saw to work on.



[drf256]

9010 with fingers roughed in and exhaust polished up.

I also media blasted the exterior. Ran out of media before I got finished.

Edit: better pic added.

View attachment 170666

View attachment 170662

View attachment 170663

View attachment 170664

Damn Buddy. Slick Grinding!



[MG porting]

9010 with fingers roughed in and exhaust polished up.

I also media blasted the exterior. Ran out of media before I got finished.

Edit: better pic added.

View attachment 170666

View attachment 170662

View attachment 170663

View attachment 170664

Looks good. Nice work.
