Dolmar 420 3/8” drum question.

Discussion in 'Chainsaws' started by Adamski, Jan 11, 2019.

  1. ajschainsaws

    ajschainsaws Axes never run out of Gas

    Joined:
    Jan 26, 2016
    Messages:
    4,143
    Likes Received:
    16,256
    Trophy Points:
    408
    Location:
    South west UK
    I’ve got some small spline 1/4 sprockets thanks @jacob j. been tempted to try
    One on the 420

  2. Adirondackstihl

    Adirondackstihl Vert Da Furk........Bork Bork Bork

    Joined:
    Dec 4, 2015
    Messages:
    5,599
    Likes Received:
    23,876
    Trophy Points:
    448
    Location:
    Upstate NY
  3. Adamski

    Adamski Plebus Splederns

    Joined:
    May 3, 2017
    Messages:
    875
    Likes Received:
    2,001
    Trophy Points:
    240
    Location:
    Essex, UK
    I’ll definitely have one off you

    ajschainsaws likes this.
  4. Adamski

    Adamski Plebus Splederns

    Joined:
    May 3, 2017
    Messages:
    875
    Likes Received:
    2,001
    Trophy Points:
    240
    Location:
    Essex, UK
    So is this p/n a blank splined clutch drum or a drum with a rim included or a spur drum?

    Can’t figure it out?

  5. ajschainsaws

    ajschainsaws Axes never run out of Gas

    Joined:
    Jan 26, 2016
    Messages:
    4,143
    Likes Received:
    16,256
    Trophy Points:
    408
    Location:
    South west UK
    The 420 has the clutch drum mounted opposite way around to the ps-340
    And the photo doesn’t show the spur drive on the ps-340 parts drawing


    C18F8B13-8BC3-4C57-9484-20695CEE204C.jpeg FE1501F5-BDE2-4B87-9C03-3546A0979C57.jpeg

    Adamski likes this.
  6. 166

    166 Habada

    Joined:
    Jan 2, 2016
    Messages:
    1,320
    Likes Received:
    7,890
    Trophy Points:
    402
    Location:
    Greenwich, NY
    There's some bad info on this thread I wanna clear up.

    OP is looking to convert his late model PS420 or PS-420SC to 3/8 pitch from .325.

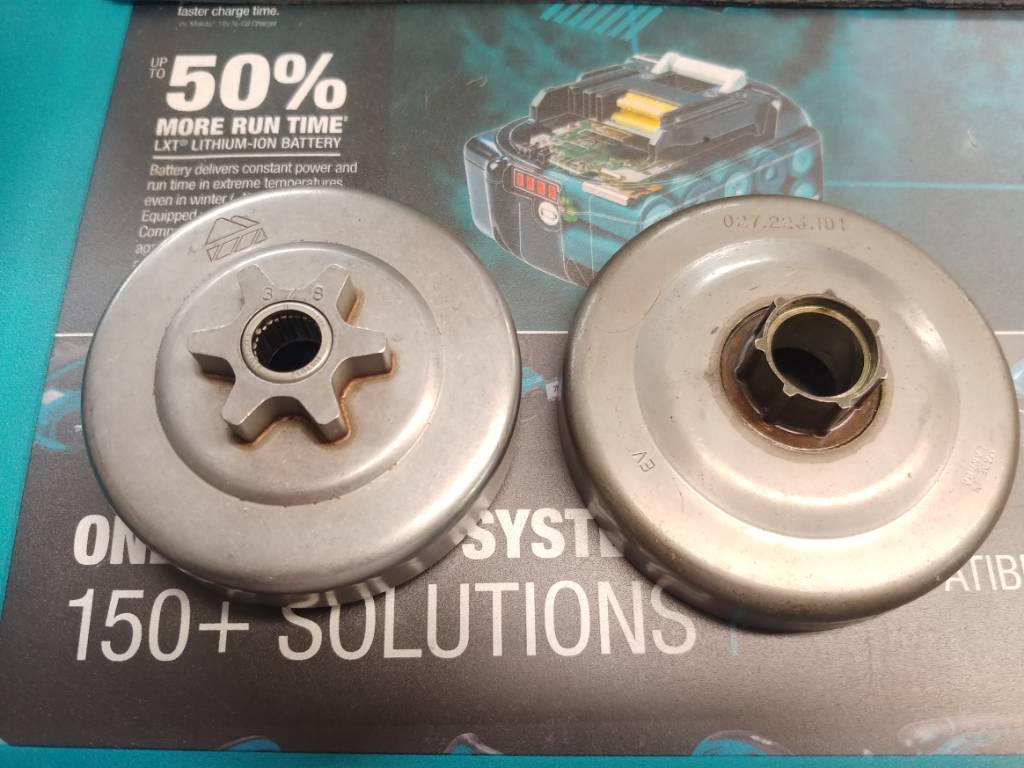

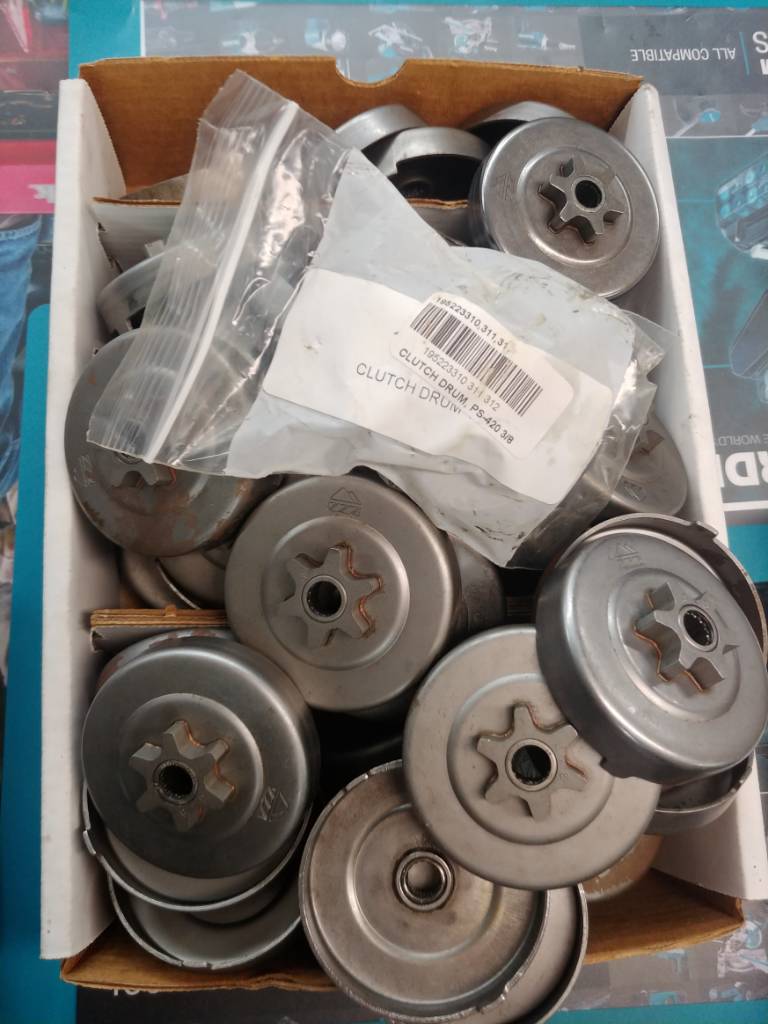

    Only factory setup would be a 195-223-312 spur style clutch drum for 3/8 lo profile chain. Older part numbers are 195-223-310 & 195-223-311. All will work.

    The 027-223-101 clutch drum will not fit. This is for the Dolmar 109,110,111,115, Makita DCS430, DCS520, DCS5200i, etc chassis. [​IMG][​IMG]

    Adamski, Wilhelm and Adirondackstihl like this.
  7. Adirondackstihl

    Adirondackstihl Vert Da Furk........Bork Bork Bork

    Joined:
    Dec 4, 2015
    Messages:
    5,599
    Likes Received:
    23,876
    Trophy Points:
    448
    Location:
    Upstate NY
  8. Wilhelm

    Wilhelm Pinnacle OPE Member

    Joined:
    Apr 28, 2016
    Messages:
    2,484
    Likes Received:
    8,807
    Trophy Points:
    325
    Location:
    Croatia, Europe
    Are You selling those drums as paper weights?

    Did they all come off from conversions, or is that Your for sale stock? o_O

    ajschainsaws likes this.
  9. ajschainsaws

    ajschainsaws Axes never run out of Gas

    Joined:
    Jan 26, 2016
    Messages:
    4,143
    Likes Received:
    16,256
    Trophy Points:
    408
    Location:
    South west UK
    My mistake I was full of bourbon on the later part of page 1 I thought the OP was asking about the clutch drum for a ps-340 as well as the 420
    My bad I need a new set of glasssesssss too

  10. Adamski

    Adamski Plebus Splederns

    Joined:
    May 3, 2017
    Messages:
    875
    Likes Received:
    2,001
    Trophy Points:
    240
    Location:
    Essex, UK
    Andrew, who ported your 420? Was it wyk?

    00wyk and ajschainsaws like this.
  11. ajschainsaws

    ajschainsaws Axes never run out of Gas

    Joined:
    Jan 26, 2016
    Messages:
    4,143
    Likes Received:
    16,256
    Trophy Points:
    408
    Location:
    South west UK
    Yes he did and a super job as well I think Wes has got a video of it when he done the job

    Adamski likes this.
  12. Adamski

    Adamski Plebus Splederns

    Joined:
    May 3, 2017
    Messages:
    875
    Likes Received:
    2,001
    Trophy Points:
    240
    Location:
    Essex, UK
    And what would you compare it to? A 346xp oe? A ms260? Let me knoooowww.

    ajschainsaws likes this.
  13. ajschainsaws

    ajschainsaws Axes never run out of Gas

    Joined:
    Jan 26, 2016
    Messages:
    4,143
    Likes Received:
    16,256
    Trophy Points:
    408
    Location:
    South west UK
    Adam I can honestly say I’ve never used either of those saws
    But the 420/421 is one of the best saws in the Modern 40cc class
    Port it and it becomes the best awesome little saw

    Simondo likes this.
  14. Adamski

    Adamski Plebus Splederns

    Joined:
    May 3, 2017
    Messages:
    875
    Likes Received:
    2,001
    Trophy Points:
    240
    Location:
    Essex, UK
    To be honest I sold a ms241 and I think this is stronger. It may not be lighter but it feels more robust. Cheers as always

  15. 00wyk

    00wyk Pinnacle OPE Member

    Joined:
    Nov 16, 2017
    Messages:
    302
    Likes Received:
    1,335
    Trophy Points:
    203
    Location:
    Ireland
    Yaay bourbon!

    ajschainsaws and Adirondackstihl like this.
  16. 00wyk

    00wyk Pinnacle OPE Member

    Joined:
    Nov 16, 2017
    Messages:
    302
    Likes Received:
    1,335
    Trophy Points:
    203
    Location:
    Ireland
    It ain't no 346, unfortunately. But few saws are. Very few saws that are 8cc's smaller are as well. The piston on a 420 is a full skirt affair usually only reserved for open port transfer type cylinders. These pistons tend to be a bit on the heavy side. I also suspect sometimes the manufacturers make the flywheels heavier to balance the package, thus why folks often say these rigs, like open port 55's and 365's have 'a lot of grunt' or 'torque'. And that saw has loads of it. It had a full kerf 325 16" chain on it when I made the video. I did a typical woods port on Drew's saw - good power, long lasting, not challenging the carb so much it has idle or spit back issues etc, and good grunt. I couldn't improve the squish without doing any machine work as it was between .026 and .027 already with pressures in the 170+ range. Having said that, that is my first attempt at an open port 420. Those things are sorta crazy in that they have 3 rows of transfers. SO you are trying to work with all these transfers, but also trying not to hurt the case volume. So, I approached it conservatively. If Andew wants me to have another go, I will do so free of charge - especially if i ruin it ;)

    WYK

    [​IMG]

    [​IMG]

    It's running a lil rich in this comparo, but I am sure Andrew can make a new vid if he likes now that is should be well broken in. Running a 16 inch bar with full kerf 325 - first cut is sans cat and with the exhaust modded. Second half is ported, same chunk of goopey larch.
