SELLING Silvey 300 Round Chain Grinder #1

Discussion in 'Shop Tools Sale/Trade' started by hseII, Mar 3, 2020.

Tags:
  1. hseII

    hseII AKA - Karenberly's Husband

    Joined:
    Dec 29, 2015
    Messages:
    6,480
    Likes Received:
    23,012
    Trophy Points:
    486
    Location:
    West Georgia
    Local Time:
    6:34 PM

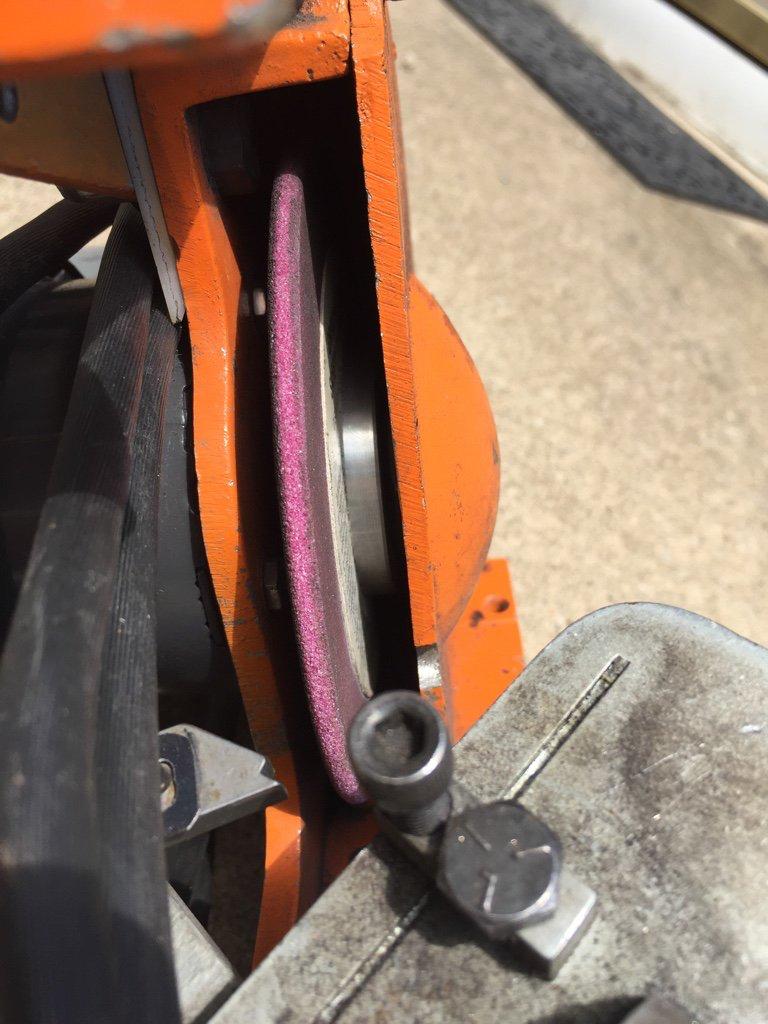

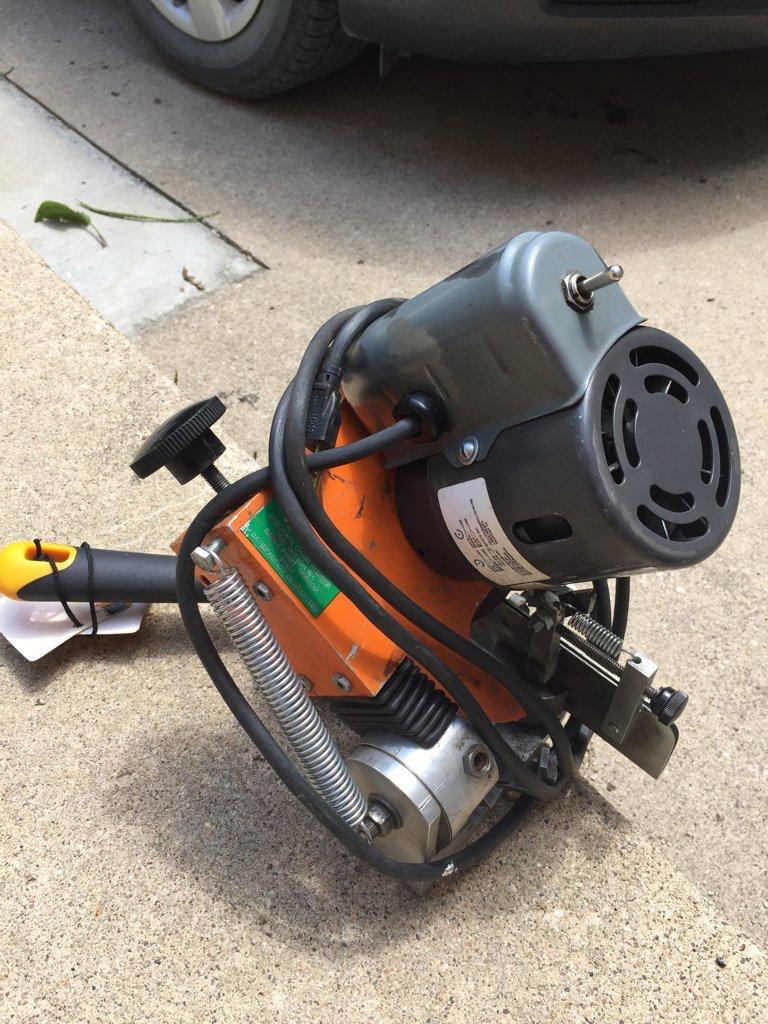

    Up for sale today is this Silvey 300 round grinder that has been converted to run 511/511ax/Oregon Wheels.
    This grinder runs forward and reverse to always run into the cutter.

    Runs and grinds just as it should.

    $300+ shipping

    I got this one from nstueve who had Shawn Carr make the adapter to run the Oregon wheels.

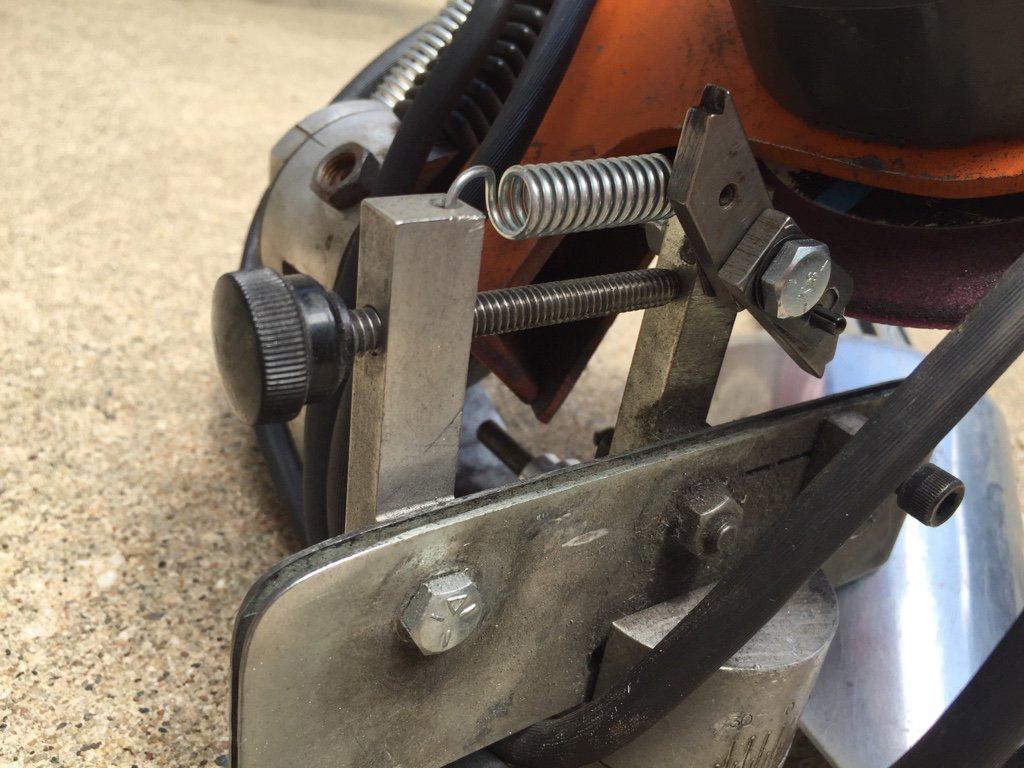

    Explanation of the mechanism that holds the chain from member procarbine2k1,
    “It's not actually a clamp at all, which is the beauty of the grinder. It has 2 pawls (for left and right side cutters) that rest against the back of the tooth. When the wheel comes in contact with the chain, the pawl holds tension on the chain. It makes grinding quick, because their is no clamping, and the operator can hand feed the chain as fast as they can grind the chain.”



    It's been converted to Oregon grinding wheels so you don't have to buy Silvey branded wheels. Has positive locking chain vice so your tooth doesn't move during grinding and no need to clamp the tooth every time you move the chain forward. The up and down adjustment allows you to set the wheel to grind symmetrically no matter how far you grind down your stone. These also have a very short throw so you aren't pulling your grinder head down 5-6 inches every time you grind a cutter.

    [​IMG][​IMG][​IMG][​IMG][​IMG]

    Last edited: Mar 4, 2020
  2. hseII

    hseII AKA - Karenberly's Husband

    Joined:
    Dec 29, 2015
    Messages:
    6,480
    Likes Received:
    23,012
    Trophy Points:
    486
    Location:
    West Georgia
    Local Time:
    6:34 PM
    I Must have been too high on the price. $300+ shipping.


    Sent from my iPhone using Tapatalk Pro

    Woodpecker and Termitebuffet like this.
  3. Armbru84

    Armbru84 Just trying to get by

    Joined:
    Jul 14, 2016
    Messages:
    1,641
    Likes Received:
    9,595
    Trophy Points:
    407
    Location:
    Michigan
    Local Time:
    6:34 PM
    Had one of these and liked the job it did. Seem to be well built.

  4. blades

    blades Well-Known OPE Member

    Joined:
    Aug 30, 2018
    Messages:
    77
    Likes Received:
    99
    Trophy Points:
    63
    Location:
    Leroy, WI
    Local Time:
    5:34 PM
    Still have one - just to be clear there is no clamp/lock for the chain , one just holds the chain back against the notched pawls

    hseII and Woodpecker like this.
  5. srcarr52

    srcarr52 Professional over thinker. GoldMember

    I Support This Forum as a Gold Member!
    Joined:
    Jan 12, 2016
    Messages:
    2,570
    Likes Received:
    16,572
    Trophy Points:
    445
    Location:
    Iowa City
    Local Time:
    6:34 PM
    I went through this grinder when it was at my shop. It left with a new motor, new chain stop pawls, new quick angle stop selector, as well as the stone arbor for 7/8" center wheels.

    These are great little grinders, I have one personally I use to do round ground as well as take gullets out on square ground.

  6. hseII

    hseII AKA - Karenberly's Husband

    Joined:
    Dec 29, 2015
    Messages:
    6,480
    Likes Received:
    23,012
    Trophy Points:
    486
    Location:
    West Georgia
    Local Time:
    6:34 PM
    Is the Stone Arbor for 7/8” all that’s needed to convert these to Oregon wheels?

    Do you sell those?


    Sent from my iPhone using Tapatalk Pro

  7. srcarr52

    srcarr52 Professional over thinker. GoldMember

    I Support This Forum as a Gold Member!
    Joined:
    Jan 12, 2016
    Messages:
    2,570
    Likes Received:
    16,572
    Trophy Points:
    445
    Location:
    Iowa City
    Local Time:
    6:34 PM
    Yes, the arbor, washer and nut are what’s needed to convert to 7/8” stones.

    I make them to order $125.

    hseII and sixonetonoffun like this.
  8. hseII

    hseII AKA - Karenberly's Husband

    Joined:
    Dec 29, 2015
    Messages:
    6,480
    Likes Received:
    23,012
    Trophy Points:
    486
    Location:
    West Georgia
    Local Time:
    6:34 PM
    Sold Pending Funds.


    Sent from my iPhone using Tapatalk Pro

  9. Madjsc1

    Madjsc1 OPE Member

    Joined:
    Aug 10, 2020
    Messages:
    6
    Likes Received:
    4
    Trophy Points:
    8
    Location:
    coos bay oregon
    Local Time:
    3:34 PM
    Hello is sylvey grinder available

    hseII likes this.
  10. hseII

    hseII AKA - Karenberly's Husband

    Joined:
    Dec 29, 2015
    Messages:
    6,480
    Likes Received:
    23,012
    Trophy Points:
    486
    Location:
    West Georgia
    Local Time:
    6:34 PM
    It Sold.


    Sent from my iPhone using Tapatalk Pro

  11. Madjsc1

    Madjsc1 OPE Member

    Joined:
    Aug 10, 2020
    Messages:
    6
    Likes Received:
    4
    Trophy Points:
    8
    Location:
    coos bay oregon
    Local Time:
    3:34 PM
    Can i ask a question, i have one silvey chain grinder 510 like the one you had for sell mine has a burnup motor any idea ware i can get a remplacement motor

    hseII likes this.
  12. hseII

    hseII AKA - Karenberly's Husband

    Joined:
    Dec 29, 2015
    Messages:
    6,480
    Likes Received:
    23,012
    Trophy Points:
    486
    Location:
    West Georgia
    Local Time:
    6:34 PM

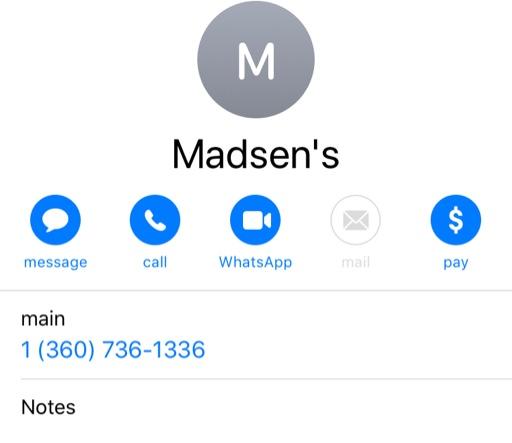

    Call Madsen’s in Washington tomorrow morning & tell them your problem.

    They are on Pacific time so try around 11est.

    [​IMG]

    Edit-
    So are you.


    Sent from my iPhone using Tapatalk Pro

  13. hseII

    hseII AKA - Karenberly's Husband

    Joined:
    Dec 29, 2015
    Messages:
    6,480
    Likes Received:
    23,012
    Trophy Points:
    486
    Location:
    West Georgia
    Local Time:
    6:34 PM
    Any Luck?


    Sent from my iPhone using Tapatalk Pro

  14. Madjsc1

    Madjsc1 OPE Member

    Joined:
    Aug 10, 2020
    Messages:
    6
    Likes Received:
    4
    Trophy Points:
    8
    Location:
    coos bay oregon
    Local Time:
    3:34 PM
    Yes i call madsens and they ard crazy motor price almost 500 dollars for just the motor, i also have a swing harm simington 450 square grind im getting a new motor for it now i just havd to figure out how to wired a switch to go forward and reverse , the you know sbout other plase besides madsens the hss the a motor for the silvey 510

  15. blades

    blades Well-Known OPE Member

    Joined:
    Aug 30, 2018
    Messages:
    77
    Likes Received:
    99
    Trophy Points:
    63
    Location:
    Leroy, WI
    Local Time:
    5:34 PM
    oem prices are outside left field. and getting worse. I just finished repairing a 5' knife grinder- oem price of repair parts a little north of $3000, Due diligence, $500 that includes having a custom sheeve ( belt pulley) made. Murphy jumped from that machine to 2 others one of which they want $1500 for motor assembly. Ain't going to happen. The other unit is an electrical problem - I have it semi isolated to the motor control circuits-specifically the contactor coil circuits- possible the emergency stop circuit. i have to move a bunch of stuff to get better access to the electrical cabinet. I need to spin the 1000+ lbs machine around some to do this. Dang cabinet is at floor level and there are a pair of glass slow blow fuses about six inches back inside stuck in a corner and of course the singe phase step down transformer is right in front and slightly below them restricting access. Unit operates on 3 phase. 3 phase circuits are good to go. So much fun on 40+ year old equipment.

  16. srcarr52

    srcarr52 Professional over thinker. GoldMember

    I Support This Forum as a Gold Member!
    Joined:
    Jan 12, 2016
    Messages:
    2,570
    Likes Received:
    16,572
    Trophy Points:
    445
    Location:
    Iowa City
    Local Time:
    6:34 PM
    I don't know of any replacement motors for those. Maybe you can have a good electric motor repair shop fix it.

  17. RT47

    RT47 OPE Member

    Joined:
    Jul 7, 2020
    Messages:
    3
    Likes Received:
    2
    Trophy Points:
    8
    Location:
    Kamloops
    Local Time:
    3:34 PM
    If anyone knows of a Silvey grinder that needs a new home, feel free to message me
    Top dollar paid for right machine.
    Thanks!!

    cuinrearview likes this.
