WANTED 3120 New OEM Primer bulb

[aarongd]

Looking for an OEM primer Bulb for a 3120 Husky, Can't seem to find PN again as i believe this model with bulb was only made a couple of years. I know i can adapt the PN 530 03 88 74 but would prefer to have OEM one. Anyone know where i can find one of have one i can purchase? Thx



[hacskaroly]

Looking for an OEM primer Bulb for a 3120 Husky, Can't seem to find PN again as i believe this model with bulb was only made a couple of years. I know i can adapt the PN 530 03 88 74 but would prefer to have OEM one. Anyone know where i can find one of have one i can purchase? Thx

Looking at another forum, it appears the primer bulb (whatever the part number was for the 3120) was NLA since as late as 2013. Hopefully someone has one is their stash they can help with otherwise, you may be stuck trying to get another jimmy-rigged and working.

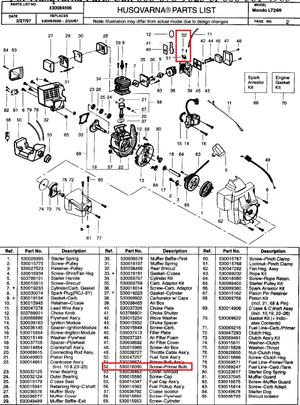

Looking at another forum, someone stated that the primer bulb for the 3120 is the same as what was on the Husqvarna Mondo LT24H string trimmers, might be worth a shot:



[aarongd]

i will take a look. Thanks. I do see on the schematic above, The primer appears to be secured with 2 bolts/screws. My 3120 does not have attachment screws. Maybe the plasic bulb itself would be interchangable on mine. i'll take a look. Thx



[aarongd]

PN is 503 13 70-01 thx



[EFSM]

Looking for an OEM primer Bulb for a 3120 Husky, Can't seem to find PN again as i believe this model with bulb was only made a couple of years. I know i can adapt the PN 530 03 88 74 but would prefer to have OEM one. Anyone know where i can find one of have one i can purchase? Thx

Could you post a picture of what you’re needing?



[Fleethirte]

Wow i didnt know it ever came with a primer bulb



[EFSM]

Wow i didnt know it ever came with a primer bulb

I’m wondering if this is a 3120 concrete saw.



[hacskaroly]

I’m wondering if this is a 3120 concrete saw.

No, apparently there was a time when the 3120 was manufactured with a primer bulb instead of a choke...I looked at several different years worth of IPLs and none of them had it, however a couple of other forums mentioned they also had the 3120 with primer bulbs. Not sure if this was maybe the first version or just something they tried at one point and went back to using the choke instead.



[aarongd]

i believe they had the primer bulbs in years 1989-1990. I found a 1989 3120 IPL and primer bulb is shown



[EFSM]

No, apparently there was a time when the 3120 was manufactured with a primer bulb instead of a choke...I looked at several different years worth of IPLs and none of them had it, however a couple of other forums mentioned they also had the 3120 with primer bulbs. Not sure if this was maybe the first version or just something they tried at one point and went back to using the choke instead.

I searched google and the first IPL that came up was a 3120 cutoff saw with a primer, so apparently they were similar.
