Troy bilt tomahawk super chipper shredder

Discussion in 'Tree Work Equipment' started by Sawyer94, Mar 13, 2019.

  1. Sawyer94

    Sawyer94 Well-Known OPE Member

    Joined:
    Dec 8, 2017
    Messages:
    81
    Likes Received:
    141
    Trophy Points:
    83
    Location:
    California
    Lol wow I got the *s-word end of the stick with you 2.

    "I need pictures"

    "Actually it's something else"

    "Bearing or you got the wrong belt"

    It was clear he didnt know what he was talking about so I tried to kindly thank him for trying. Noone owes me anything but atleast show some decency. I dont need anyones help with this anymore I have it figured out. So again thanks for trying
    A+ for effort from the both of you.

    Sent from my SM-G960U using Tapatalk

  2. tp2177

    tp2177 Super OPE Member

    Joined:
    Dec 21, 2016
    Messages:
    504
    Likes Received:
    1,036
    Trophy Points:
    173
    Location:
    AL
    Good luck getting help from any one with experience in the future on here. People do this out of the kindness of their hearts and thinking you know more than everyone else doesn’t fly around here. Glad you got it figured out and with your entitled attitude I hope you “know it all” in the future cause you got a lot of learning to do.


    Sent from my iPhone using Tapatalk Pro

    ny15, Sawyer94 and Dub11 like this.
  3. tp2177

    tp2177 Super OPE Member

    Joined:
    Dec 21, 2016
    Messages:
    504
    Likes Received:
    1,036
    Trophy Points:
    173
    Location:
    AL
    Oh and even if someone doesn’t know the exact answer, which I feel like fish would’ve been very resourceful for you, they maybe throw out some guesses to give you a “free bump” to keep your thread up towards the top so real “experienced” people will have a chance to see it easily. You get a reputation to bash anyone that makes a suggestion and you’ll get no help from anyone.


    Sent from my iPhone using Tapatalk Pro

    Sawyer94 likes this.
  4. Sawyer94

    Sawyer94 Well-Known OPE Member

    Joined:
    Dec 8, 2017
    Messages:
    81
    Likes Received:
    141
    Trophy Points:
    83
    Location:
    California
    I'm sure ill be fine.

    Sent from my SM-G960U using Tapatalk

  5. tp2177

    tp2177 Super OPE Member

    Joined:
    Dec 21, 2016
    Messages:
    504
    Likes Received:
    1,036
    Trophy Points:
    173
    Location:
    AL
    Let’s hope so


    Sent from my iPhone using Tapatalk Pro

  6. Mastermind

    Mastermind Leader Of The Clique Staff Member

    Joined:
    Dec 3, 2015
    Messages:
    24,552
    Likes Received:
    145,571
    Trophy Points:
    931
    Location:
    Banner Springs Tennessee
    Simmer down in here.

    :argue:

    tp2177, hseII, Dub11 and 1 other person like this.
  7. alleyyooper

    alleyyooper Super OPE Member

    Joined:
    Dec 26, 2018
    Messages:
    370
    Likes Received:
    782
    Trophy Points:
    163
    Location:
    Michigan.

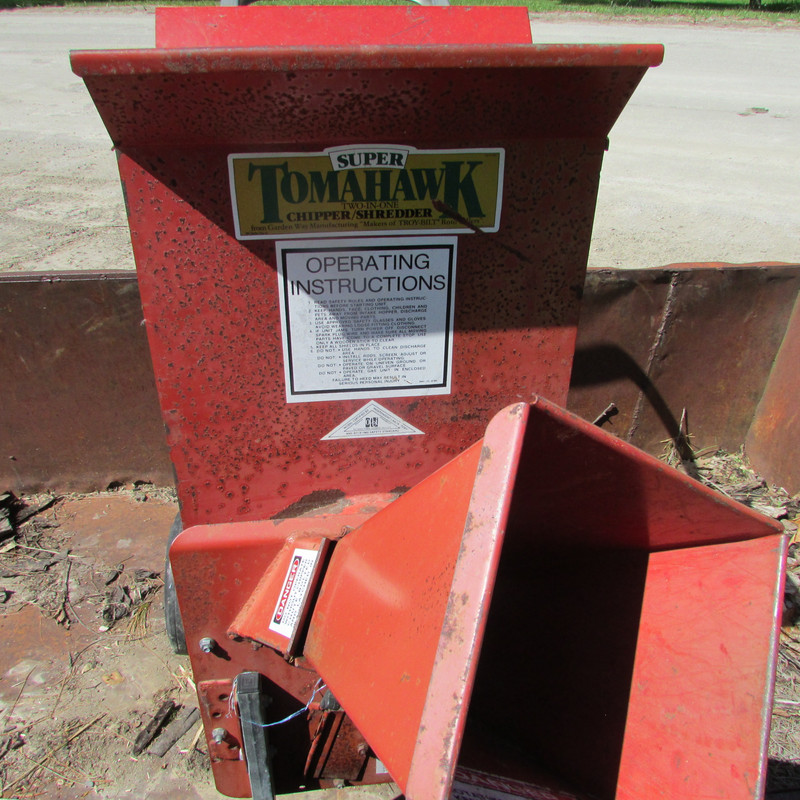

    OK here is a picture, it has a 5hp TECU engine so isn't the super which is the 8 HP engine.
    [​IMG]


    Mine has a centrifugal clutch on it from the factory.

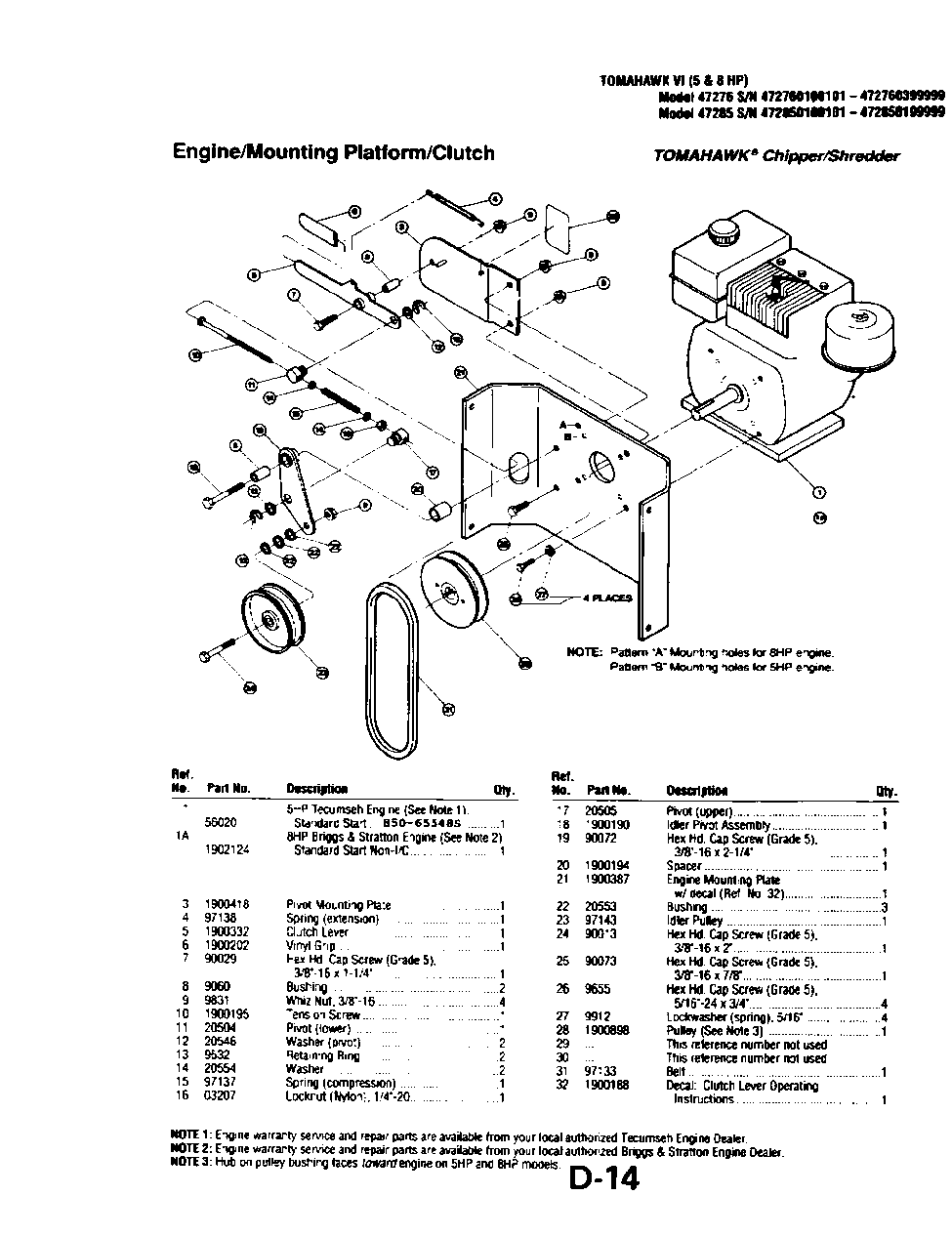

    A parts break down and part numbers listing. You will have to blow it up to read it.You will also need a new part number for the different belt.
    [​IMG]




    OOPs wrong parts diagram.

    Here is a link to the owners manual that tells how to adjust the (Lever) clutch.

    http://www.brentchalmers.com/Manuals/1989Troy-BiltTomahawkChipperShredderOwnerOperatorManual.pdf

    the belt.
    orginal belt part number 97133 is a 5/8 X 29 1/4 belt I went thru several brands befor I settled on Kevlar belt from Belts are US.

    :D Al

    tp2177 likes this.
  8. alleyyooper

    alleyyooper Super OPE Member

    Joined:
    Dec 26, 2018
    Messages:
    370
    Likes Received:
    782
    Trophy Points:
    163
    Location:
    Michigan.
    Dub11 and tp2177 like this.
  9. Fish

    Fish Pinnacle OPE Member

    Joined:
    Jan 18, 2016
    Messages:
    804
    Likes Received:
    1,217
    Trophy Points:
    223
    Location:
    Manton Ky.
    The unit worked fine as designed.Re-designing it is costly, {R & D}.
    You need to try a good Kevlar belt and check the bearings on the pulleys/etc...
    And run it like it was designed.

    Dub11 likes this.
  10. Fish

    Fish Pinnacle OPE Member

    Joined:
    Jan 18, 2016
    Messages:
    804
    Likes Received:
    1,217
    Trophy Points:
    223
    Location:
    Manton Ky.
    A centrifigul clutch setup may work, but the shock load would be @ the same, slippage/heat @ the same. The original belt may have had different angles on the face of the belt, but new pulleys or the original belt would be the only fix.

    Dub11 likes this.
  11. alleyyooper

    alleyyooper Super OPE Member

    Joined:
    Dec 26, 2018
    Messages:
    370
    Likes Received:
    782
    Trophy Points:
    163
    Location:
    Michigan.
    The pulleys other than the clutch pulley on that machine are mounted on the engine shaft useing a Key so it doesn't spin.
    Same thing on the lower shave with the knives the pulley is mounted useing a key. so there are no bearings on the pulleys.

    Just putting a centrifugal clutch on should prolong belt life just for the fact the clutch comes in slowly at 1800 RPM and is the shock of the lever moving a pulley on a bearing.

    :D Al

    Sawyer94 likes this.
  12. Larry B

    Larry B Super OPE Member

    Joined:
    Sep 2, 2017
    Messages:
    329
    Likes Received:
    854
    Trophy Points:
    173
    Location:
    SW ohio
    Ain't got a dog in this but my 11hp chipper/shredder is direct drive. Motor turns, drum turns. Not sure why the tomahawk needs a slip belt clutch?? The belt on mine is pretty tight. Not banjo string tight but still pretty tight. Seems like a good kevlar belt with the proper tension on the idler would fix it. I doubt a centrifugal clutch would even work well. They like a steady load like a go cart. Not a hammering load like a chipper. Of course, as usual, free advice from some random guy on the internet.

    Dub11, Jimmy in NC and tp2177 like this.
  13. tp2177

    tp2177 Super OPE Member

    Joined:
    Dec 21, 2016
    Messages:
    504
    Likes Received:
    1,036
    Trophy Points:
    173
    Location:
    AL
    Mine is like alleyoopers but I guess it is the super because it has an 8 hp engine. I’ve never had mine running so I can’t be sure but I think the tensioner arm is a safety feature. This one doesn’t self feed from my research and came with a plastic “pusher” from the factory. my only guess is to why you can disengage the chipper is for safety/jam? Never ran anything through mine so not sure. Once I found out it doesn’t self feed I wasn’t as enthusiastic about getting it running. I’m accident prone and like all my appendages.


    Sent from my iPhone using Tapatalk Pro

    Jimmy in NC likes this.
  14. Jimmy in NC

    Jimmy in NC Pinnacle OPE Member

    Joined:
    Dec 23, 2015
    Messages:
    1,738
    Likes Received:
    7,098
    Trophy Points:
    345
    Location:
    North Carolina
    Ok...lots of misinformation here.

    Some belts can be loaded from the rear and others cannot. Anyone that has used an alternative Snapper Rear Engine Rider belt knows they do not last. They tension from behind with an idler and swinging a 33" high vac blade is every bit and then some of your chipper.. OEM belts generally last best on power equipment.

    The squeak...its not an issue. If you think it is, engage it at a lower rpm. You should hear twin 75hp electric motors starting the fan on our asphalt plant or a 4' asphalt mill powered by 400hp kicking in gear...squeak!

    I wager you have a bad bearing in an idler that may get hot and seize and/or worn out or heavily pitted pulley faces. Idlers may spin free cold but when hot seize up. Seen that on mowers several times. Worn/pitted or rusty pulleys will also chew belts. It may be one spot on one pulley where a belt sat and held moisture.

    I would run the machine 10-15 minutes and then check the belt. Look for wear marks or rubber debris. Let it tell you what the issue is. Is there a flat spot from starting (the squeak)?

    Where I would start.

    Dub11 likes this.
  15. Jimmy in NC

    Jimmy in NC Pinnacle OPE Member

    Joined:
    Dec 23, 2015
    Messages:
    1,738
    Likes Received:
    7,098
    Trophy Points:
    345
    Location:
    North Carolina
    Look at PDF page #32. Very detailed belt tension adjustment. I have found when that much care is given on an adjustment, its critical.


    Another thing to check is do all the pulleys and idler line up? It looks like they are just set screwed to the shafts. A misalignment would also cause poor life.

    Sawyer94 likes this.
  16. alleyyooper

    alleyyooper Super OPE Member

    Joined:
    Dec 26, 2018
    Messages:
    370
    Likes Received:
    782
    Trophy Points:
    163
    Location:
    Michigan.
    First off all the Super Tomhawk chipper shredders are not the same.
    Serial numbers are important to get the correct part for yours.

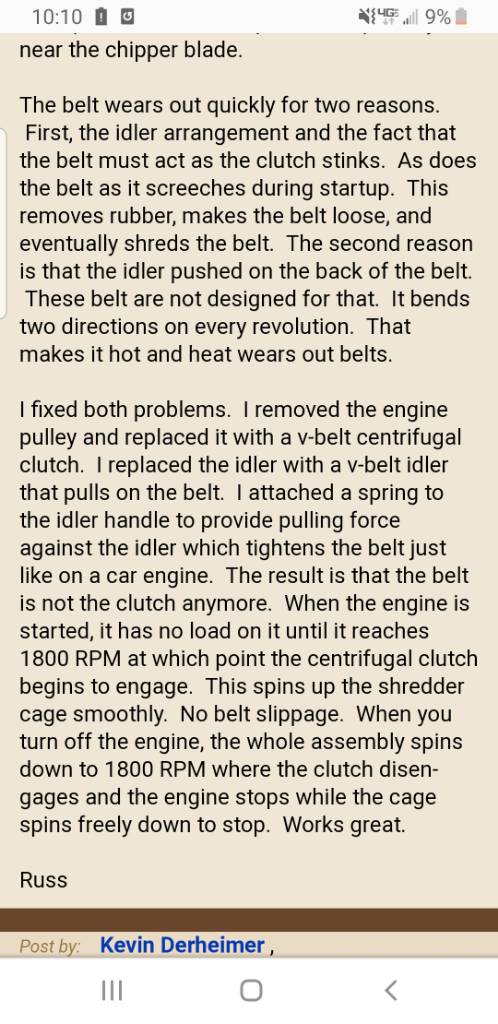

    If you watch the You tubes I posted you will see the ones have a couple different ways to sngauge the belt.

    As I said earlier my has a centrical clutch. I thought it was just a Tomahawk chippler/shredder till I put it to work yesterday.

    [​IMG]

    I thought the ones with the 8 HP engines were supers but mine had a 5 HP engine.


    :D Al
