Rescued a neglected 036, runs better than it looks.

Anyway decided to get some numbers on the MM.

Exhaust port, didn’t compensate for curvature. ‍
Calculated from app, 302mm^2
Calculated from 27x12mm, 324mm^2
e2d9b45e-294c-4876-9b3d-1271aa4eee1e-jpeg.213560


Muffler openings.
Main opening calculated from app, 315mm^2
Main opening calculated from, 17x21mm, 357mm^2

Calculated total with louvred opening, 358mm^2

3fc02385-7c06-4e2b-95c8-645232748e6a-jpeg.213562


Factory screen has openings,
0.55mm * 0.55mm = 0.303mm^2 each.
Mine has 30 * 36 openings.
1080 * 0.303 = 327mm^2
Could raise this to 380mm^2 with some more grinding to expose more screen, or use a different mesh.


15d49495-2d3b-424b-8297-53dffe1d422e-jpeg.213563


So stock exhaust port at piston,,. 302mm^2
Opened up muffler discharge,,,,. 358mm^2
Total combined screen opening,.327mm^2

Muffler discharge 118% of cylinder exhaust port, (150% looks achievable with more work)
Screen opening 108% of cylinder exhaust port, (125%+ achievable with stock mesh)

The main thing I would like to consider would be the discharge coefficient of the mesh, while it's openings equals 108% of the exhaust port, they may cause more restriction than this number shows due to they way the gasses pass through it.


Attachments

  • E2D9B45E-294C-4876-9B3D-1271AA4EEE1E.jpeg
    89.3 KB · Views: 878
  • 3FC02385-7C06-4E2B-95C8-645232748E6A.jpeg
    115.8 KB · Views: 874
  • 15D49495-2D3B-424B-8297-53DFFE1D422E.jpeg
    111.3 KB · Views: 870
Last edited:

mdavlee

Hillbilly grinder
Local time
10:03 AM
User ID
279
Joined
Dec 28, 2015
Messages
14,194
Reaction score
64,602
Location
TN
Country flag
Rescued a neglected 036, runs better than it looks.

Anyway decided to get some numbers on the MM.

Exhaust port, didn’t compensate for curvature. ‍
Calculated from app, 302mm^2
Calculated from 27x12mm, 324mm^2
e2d9b45e-294c-4876-9b3d-1271aa4eee1e-jpeg.213560


Muffler openings.
Main opening calculated from app, 315mm^2
Main opening calculated from, 17x21mm, 357mm^2

Calculated total with louvred opening, 358mm^2

3fc02385-7c06-4e2b-95c8-645232748e6a-jpeg.213562


Factory screen has openings,
0.55mm * 0.55mm = 0.303mm^2 each.
Mine has 30 * 36 openings.
1080 * 0.303 = 327mm^2
Could raise this to 380mm^2 with some more grinding to expose more screen, or use a different mesh.


15d49495-2d3b-424b-8297-53dffe1d422e-jpeg.213563


So stock exhaust port at piston,,. 302mm^2
Opened up muffler discharge,,,,. 358mm^2
Total combined screen opening,.327mm^2

Muffler discharge 118% of cylinder exhaust port, (150% looks achievable with more work)
Screen opening 108% of cylinder exhaust port, (125%+ achievable with stock mesh)

The main thing I would like to consider would be the discharge coefficient of the mesh, while it's openings equals 108% of the exhaust port, they may cause more restriction than this number shows due to they way the gasses pass through it.

Every edge has some flow disturbance compared to one big hole.


Ketchup

Epoxy member
Local time
8:03 AM
User ID
5594
Joined
Mar 12, 2018
Messages
1,756
Reaction score
4,846
Location
Colorado
Country flag
Rescued a neglected 036, runs better than it looks.

Anyway decided to get some numbers on the MM.

Exhaust port, didn’t compensate for curvature. ‍
Calculated from app, 302mm^2
Calculated from 27x12mm, 324mm^2
e2d9b45e-294c-4876-9b3d-1271aa4eee1e-jpeg.213560


Muffler openings.
Main opening calculated from app, 315mm^2
Main opening calculated from, 17x21mm, 357mm^2

Calculated total with louvred opening, 358mm^2

3fc02385-7c06-4e2b-95c8-645232748e6a-jpeg.213562


Factory screen has openings,
0.55mm * 0.55mm = 0.303mm^2 each.
Mine has 30 * 36 openings.
1080 * 0.303 = 327mm^2
Could raise this to 380mm^2 with some more grinding to expose more screen, or use a different mesh.


15d49495-2d3b-424b-8297-53dffe1d422e-jpeg.213563


So stock exhaust port at piston,,. 302mm^2
Opened up muffler discharge,,,,. 358mm^2
Total combined screen opening,.327mm^2

Muffler discharge 118% of cylinder exhaust port, (150% looks achievable with more work)
Screen opening 108% of cylinder exhaust port, (125%+ achievable with stock mesh)

The main thing I would like to consider would be the discharge coefficient of the mesh, while it's openings equals 108% of the exhaust port, they may cause more restriction than this number shows due to they way the gasses pass through it.

That’s cool. What app are you using?


NPKenny

Super OPE Member
Local time
7:03 AM
User ID
5030
Joined
Jan 12, 2018
Messages
292
Reaction score
741
Location
Lehi, AZ
Country flag
Here’s one done out of necessity on a previously hacked-up muffler. A good bit of clean-up inside and a scrap piece of rectangular tubing cut to fit for a deflector. The screen is secure and pretty easy to clean / replace.

546C9330-C26E-43F4-B3D3-5D01740C48A7.jpeg 77172451-1D15-4084-8113-AEDABC7F9041.jpeg



Moparmyway

Its just a saw
GoldMember
Local time
10:03 AM
User ID
21
Joined
Dec 4, 2015
Messages
5,222
Reaction score
27,996
Location
In a meeting
Country flag

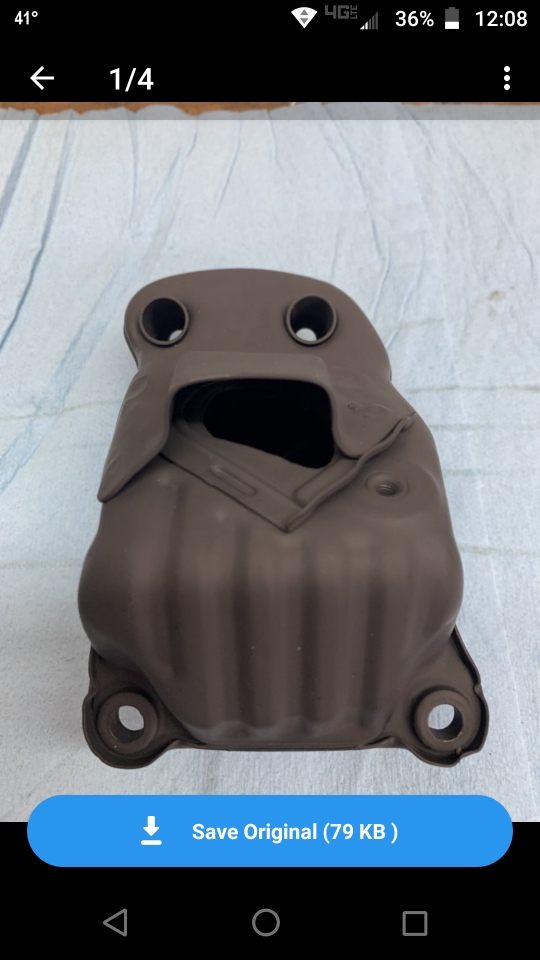

My stumping/milling slut muffler mod




And this is what it looks like when milling or stumpingIMG_6440.JPG


The stock opening is closed with a piece of aluminum flashing, easily removed if I want to open it back upIMG_6443.JPG

Last edited:

merc_man

merc_man
Local time
10:03 AM
User ID
933
Joined
Feb 24, 2016
Messages
4,952
Reaction score
21,578
Location
southern ontario
Country flag

Agent Smith

Hack of all trades
Local time
10:03 AM
User ID
5180
Joined
Jan 28, 2018
Messages
3,054
Reaction score
18,126
Location
Northeast ohio
Country flag

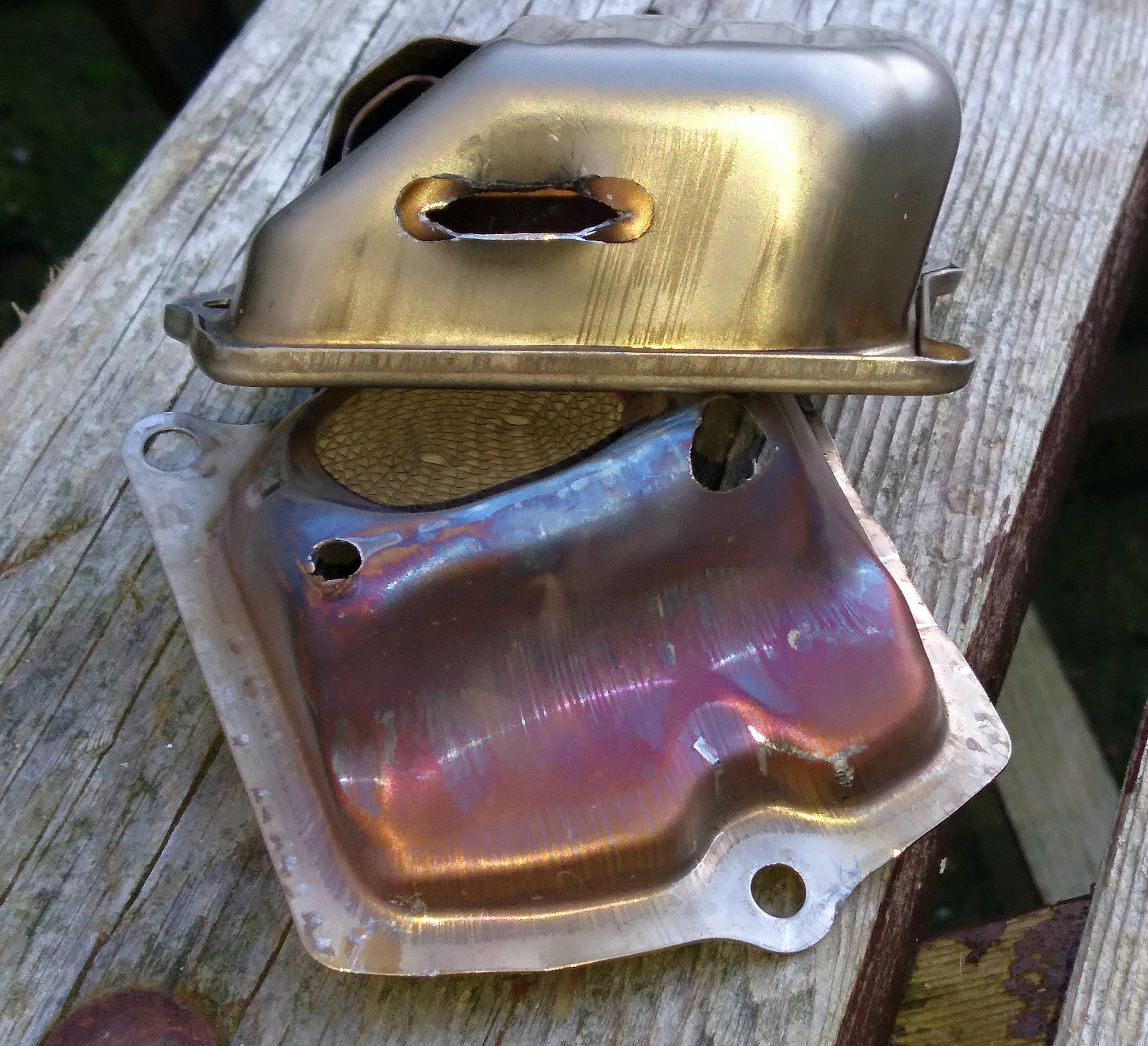

Just finished up this dual port muffler for the 026 project im working on. Welded up the factory outlet inside the cover


Attachments

  • IMG_20200111_115524.jpg
    168.9 KB · Views: 60
  • IMG_20200111_115456.jpg
    142.6 KB · Views: 61
  • IMG_20200111_115449.jpg
    113.5 KB · Views: 55

Benwa

I love the smell of premix in the morning
Local time
7:03 AM
User ID
5146
Joined
Jan 23, 2018
Messages
223
Reaction score
1,024
Location
Bow
Country flag
A little craftsman I did up for a buddy. Some of these have 2 very small louvers for an outlet, on the clutch side, in the rear upper corner of the muffler. They use the partition as the deflector. Nothing crazy, but should flow a little better now. 20200119_011638.jpg

Last edited:
