This is a very nice set-up. Any additional info on how you accomplished this? ie all homemade, modifications from off the shelf products, etc Looks like a combination of all the above.
With the exception of the winch itself (and safety screen) It’s all homemade. Last winter was spent building tractor toys. I built a grapple for it as well as a quick detach ROPS mounted tool box and some light guards, swiveling light mounts and a small tool tray to mimic the looks of 4th/5th valve setup on the other side of the ROPS.

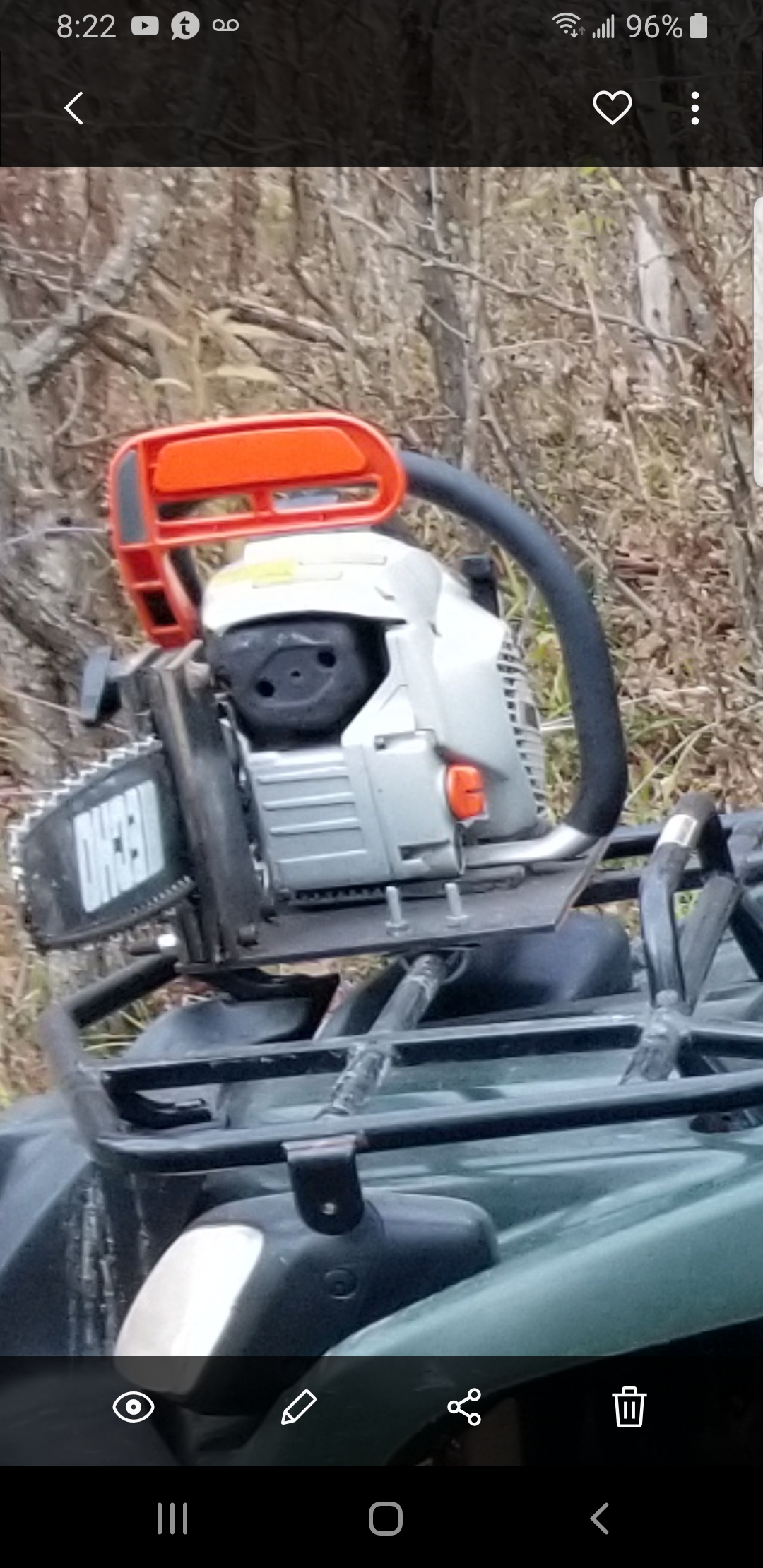

The scabbards are made from 1/2” sheets of uhmw I bought on Amazon. They’re roughly 6.5” wide, 20” long. The spacer strips are around 1” wide, creating a 4.5” x 1/2” slot the bar slides into. Its easy to work with. Treat it just like wood. I drilled/tapped the vertical outer side of the chain boxes and used 4 or 5 (per edge) flat Allen head bolts to attach them as well as hold the scabbards together. The loader frame saw holders started as short sections of box tubing to act as tool holders. I then welded up a framework that bolts to the axe holders, 2 bolts into tapped holes on each loop. The lower mounts are recessed behind the scabbard mount plate. They get fastened and then the scabbards get bolted on. The scabbards are made the same way as the others, but I used washers/nuts on the four corners because I made the mounting plates smaller to save on material and it makes it easier to take them off if necessary as they stay in one piece. The plywood spacer in the pic with the 200t was temporary. I replaced it with a piece of 3/4” delrin after that pic was taken. I had to drill/tap two holes in the loader mast to attach the lower mounts. I hated to drill into the casting but I feel confident that it’s not weakening it.
The holders on the screen are just round stock (iirc, 3/8”) that I heated and bent to shape, then welded brackets on to attach them. The lower axe handle holders are quick-fist rubber holders I set into a piece of angle iron and ran one bolt through the screen frame to hold them on. The tab sticking off of them is a section of tubing I welded on to keep them from rotating on the single bolt. It tucks under the lowest part of the screen grid and hugs the tube frame in the other direction. The wedge holder is a piece of 1”x3/16” flat stock with small quarter- sections of tubing welded on the ends where the bolt to the screen frame. The center section I used coupling nuts in place of regular ones to hold the screen to the winch frame from the back side and then bolted the wedge holder through into the other end of the coupling nuts. This way, the screen can be bolted on and tightened down and then the wedge rail can be installed.
The helmet holder is two pieces of 1/4” flat stock. I clamped them together and drilled through the middle along the seam to form a trough on each side that cradles the round stock on the existing screen. Then drilled a hole through the center, tapped the back plate and one bolt through the center holds it tight and it can not rotate either.
I had a ton of pics but they got scrambled when my phone died and transferred stuff to new phone. I still have a bunch, but I don’t want to hijack the thread completely.
Unless y’all want more pics.
