Post up your ported cylinder Artwork

[huskihl]

Fuggin' camera and phone are going down the road.....



[huskihl]

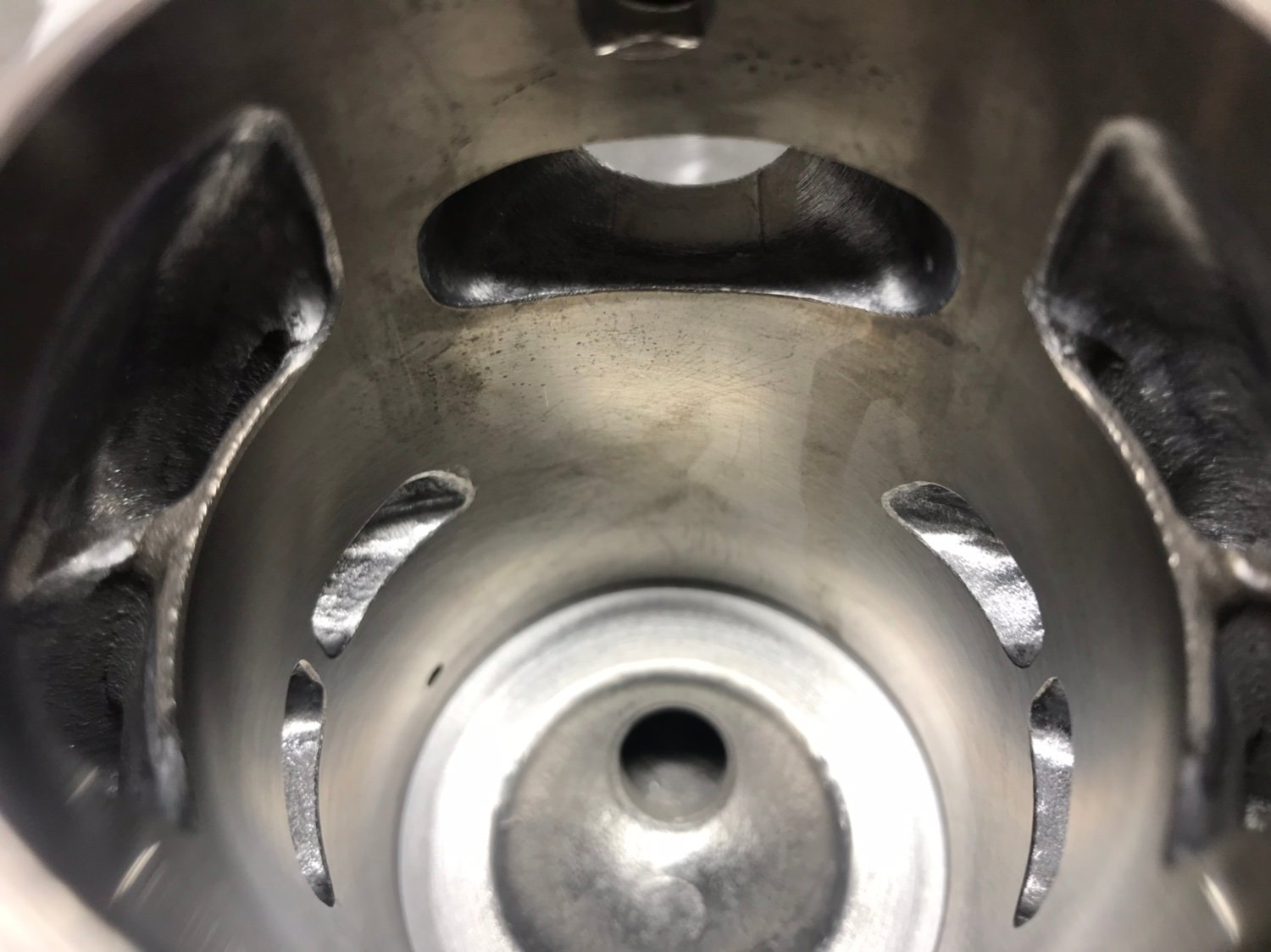

Yes, absolutely. I still need to chamfer all the ports.

Thanks for the kind words.

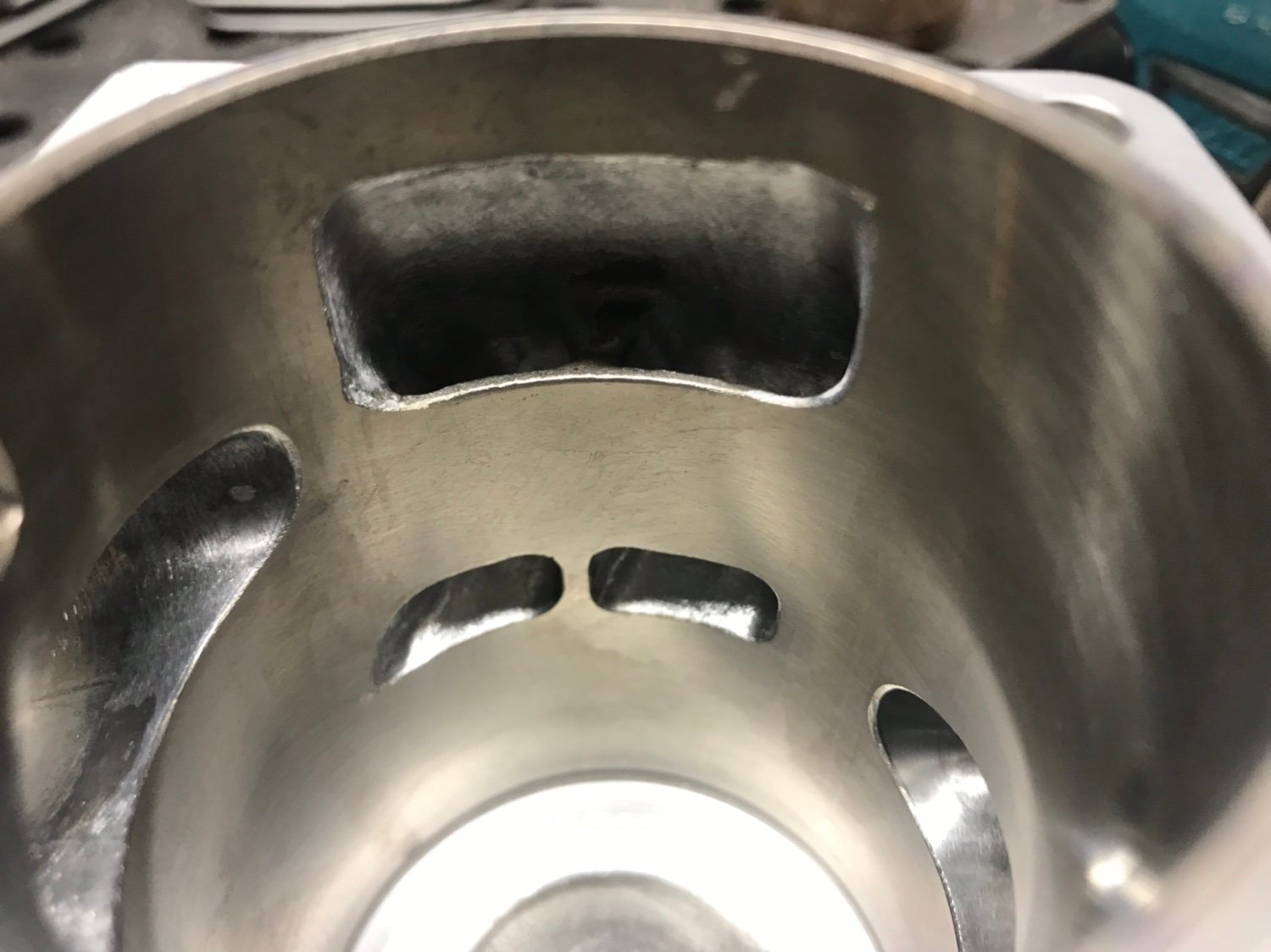

I think I am going to grind the lower transfer divider round. Shown in red....and not have a sharp edge.



View attachment 177437

Awkward that the Mark2 came like that. The originals were slightly rounded



[MG porting]

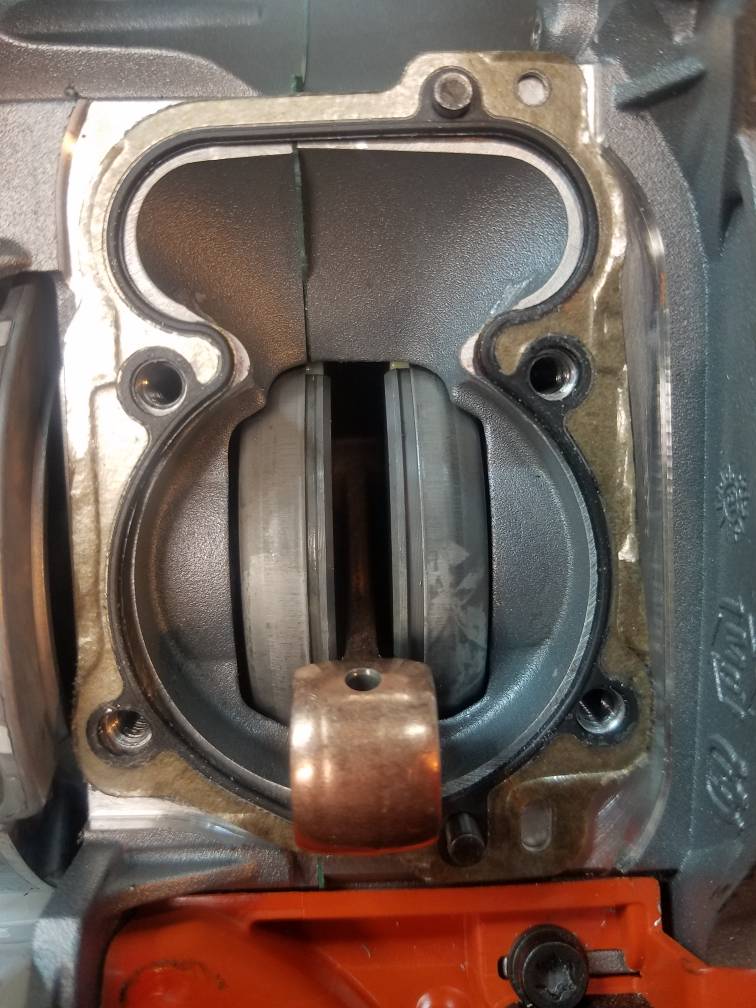

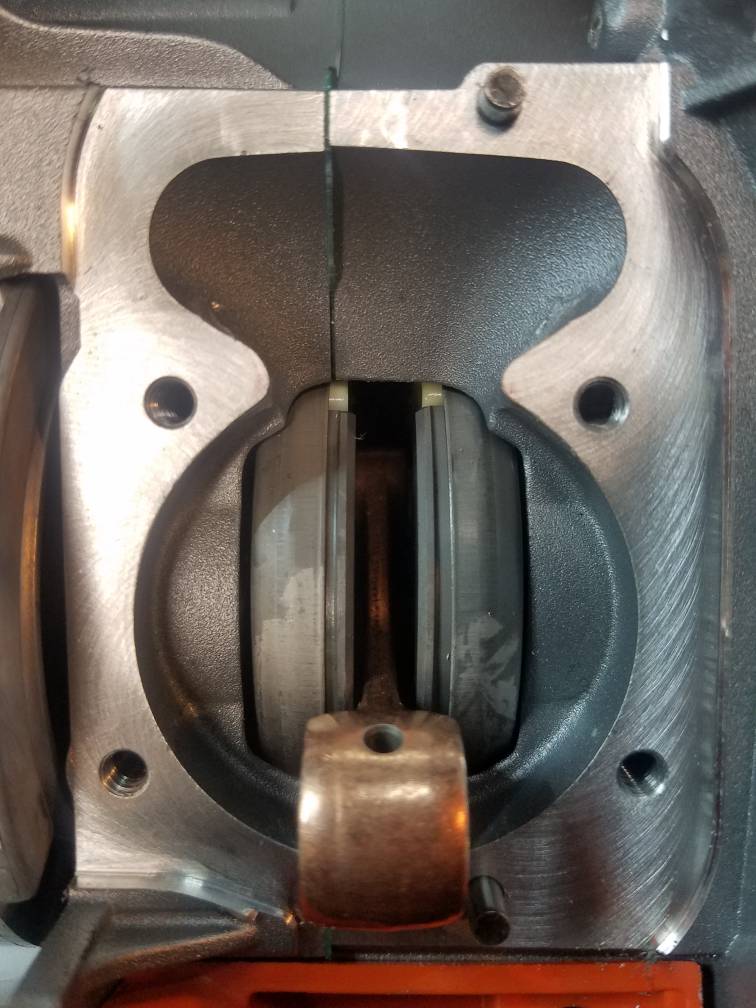

Welp, I did it. I taped it off really good. Then vacuumed the shavings off the tape and surrounding areas. I'll take some pics. We need pics right!?

Sorry if I'm derailing the thread. I know it's not a cylinder. But figured I could at least entertain you guys haha

I also rounded over the lower transfer knife edge. Mo bedda now.

Sent from my SM-G935P using Tapatalk

Flush that crank case out good just in case.



[mortalitool]

View attachment 177472 View attachment 177473 View attachment 177477
View attachment 177478 View attachment 177475


Fuggin' camera and phone are going down the road.....

Nice!

Sent from my SM-G935P using Tapatalk



[mortalitool]

Awkward that the Mark2 came like that. The originals were slightly rounded

For sure. Sort of wonder why they changed the shape. You did one of these didnt you Kevin?

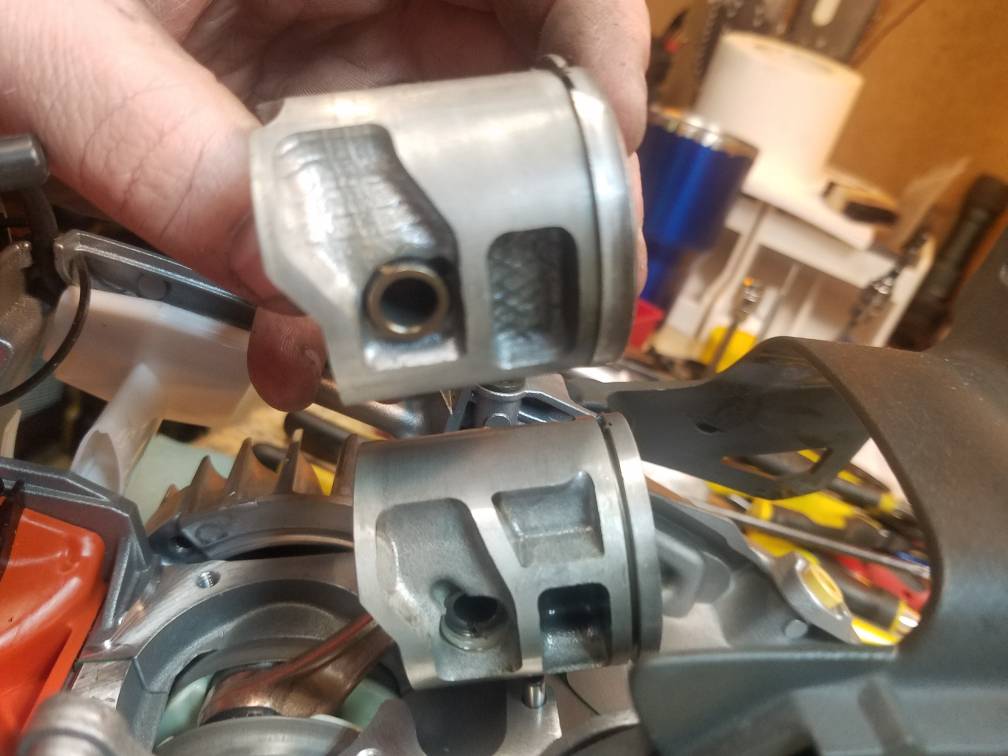

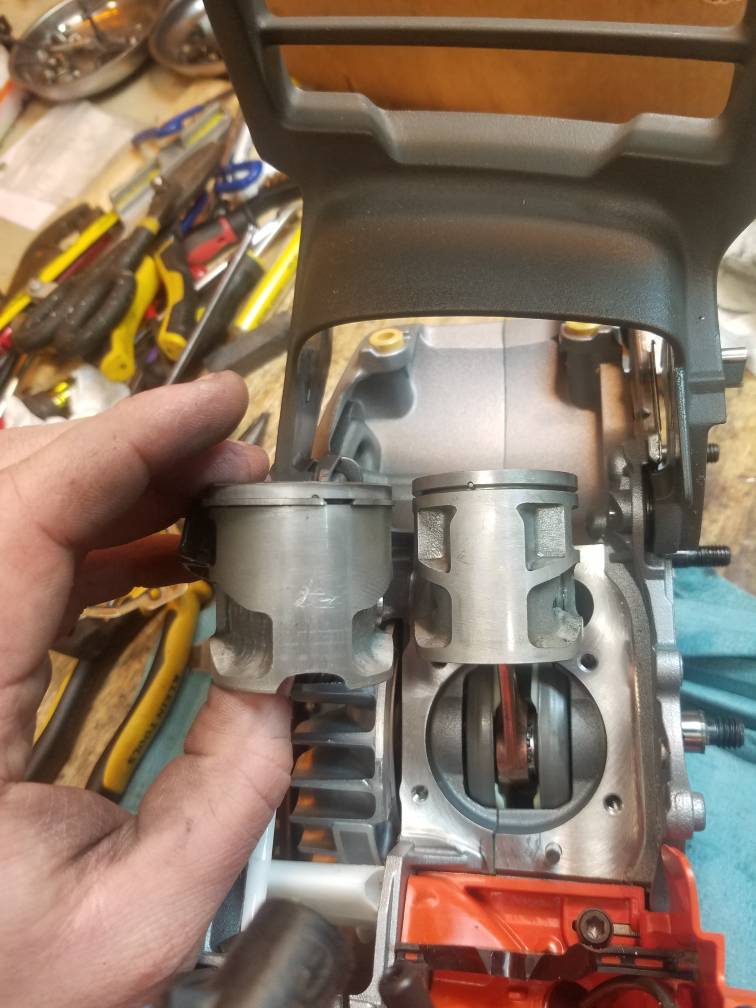

I do like the change they made to the piston.

Sent from my SM-G935P using Tapatalk



[mortalitool]

Close, but no cigar. I'll be making touch-ups tonight.

Sent from my SM-G935P using Tapatalk



[srcarr52]

Gonna do er.


You ever modified the cases on these series of saws? ill post a pic

No, I don't increase the width of the cutout in the skirt extension. I just raise it as much as I cut off the base so it stays in place with those wingdings. Which they help straighten the flow into the lower transfers. In stock form, the lower transfers are already much larger than the rest of the transfer tunnel so not much work is needed on them. Just clean up casting flash and straighten areas where you can. Making them larger is only going to delay the hit of fresh mix to the cylinder.



[redlight066]

Tree ninety fo’



[redlight066]

And the muffler



[redlight066]

Should have posted pics from before. Cylinder survived ingesting something and had a new piston put in it. Only damage was to combustion chamber. Lucky..... this is how it came to me as a runner took .025 out of the squish



[redlight066]

Despite those who know better..... I decided I would take on an XPW conversion. Look forward to getting this thing back together and run it. Be a while before I do another.



[srcarr52]

Tree ninety fo’View attachment 178629View attachment 178630View attachment 178631View attachment 178632

Why did you grind on the skirt extension into the case just below the transfers?



[redlight066]

Why did you grind on the skirt extension into the case just below the transfers?

Took .030 off the base and had interference with the case. Not having one of these before I just assumed it was that tight. I took more off the skirt than I actually needed to.



[redlight066]

Why did you grind on the skirt extension into the case just below the transfers?

OK now you've got me I Effed something up. I just measured the depth from the deck down to the case. It's .206"



[srcarr52]

OK now you've got me I Effed something up. I just measured the depth from the deck down to the case. It's .206"

They are close to hitting with the gasket removed.



[redlight066]

You scared the crap out of me



[srcarr52]

You scared the crap out of me

To me, it looks like it would still hit on the corners of you cutouts but I guess it is a sloped surface there.

I normally cut the skirt extension on the lathe when I cut the base.



[redlight066]

Shaun, where should I be numbers wise? This is going to be a dedicated long bar saw.



[srcarr52]

Shaun, where should I be numbers wise? This is going to be a dedicated long bar saw.

160/121/158



[srcarr52]

395 stroker.
