Has anyone done a how to on the fish gill type mod?
It looks pretty straight forward. But I bet it could be screwed up easily as well.
I'm wanting to do my 261c


Sent from my iPhone using Tapatalk


merc_man

merc_man
Local time
9:28 AM
User ID
933
Joined
Feb 24, 2016
Messages
4,952
Reaction score
21,578
Location
southern ontario
Country flag
All good work on muffler mods here i was wondering how do you guys make new deflectors that wanna add a second exhaust port. I been playn around tryng to make one bit its not real pretty.

Stihl gotta work on it a bit.


Mycamaro_68

By guess and by golly
Local time
8:28 AM
User ID
713
Joined
Jan 28, 2016
Messages
670
Reaction score
2,004
Location
Cedar Rapids, IA
Country flag
All good work on muffler mods here i was wondering how do you guys make new deflectors that wanna add a second exhaust port. I been playn around tryng to make one bit its not real pretty.

Stihl gotta work on it a bit.
Is that galvanized?


merc_man

merc_man
Local time
9:28 AM
User ID
933
Joined
Feb 24, 2016
Messages
4,952
Reaction score
21,578
Location
southern ontario
Country flag

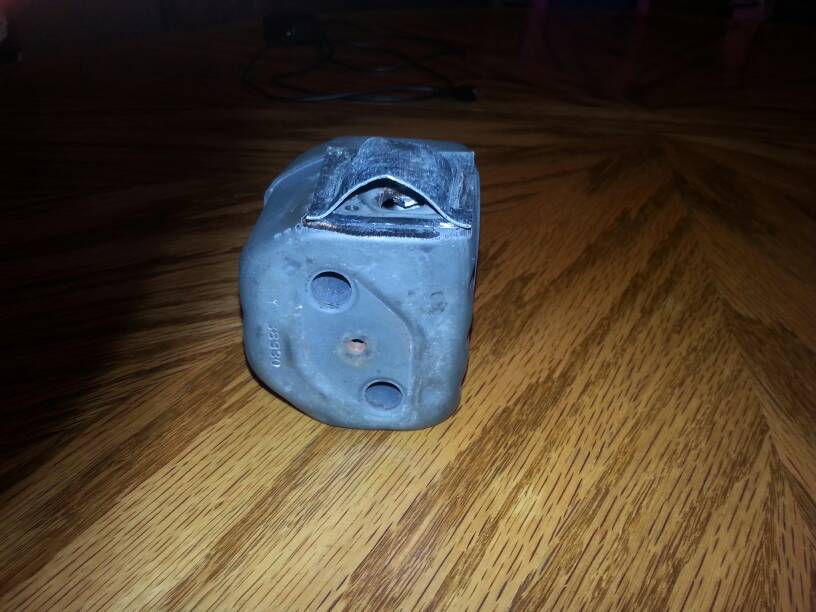

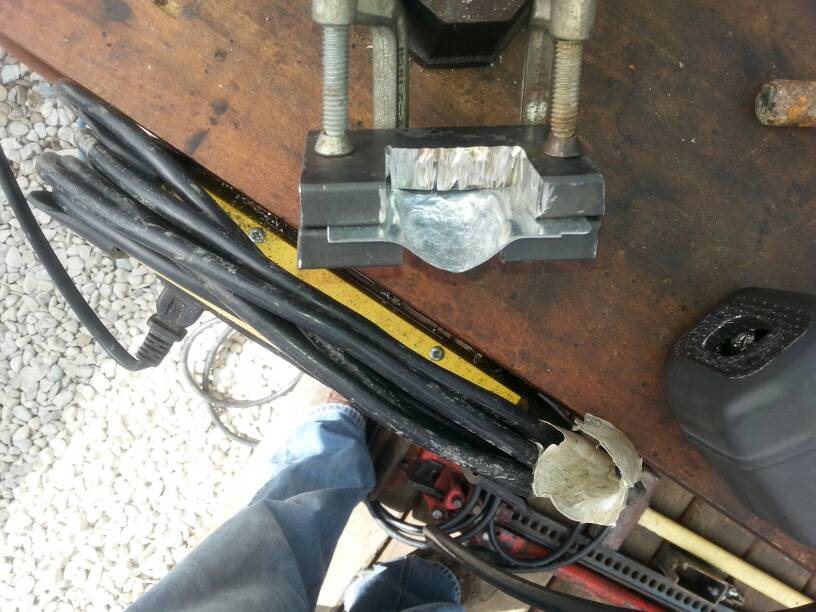

Heres the jig thing i been working on and a pic of the deflector sitting on muffler.
The sheet metle is a little thicker then the muffler material so tjat dont realy help either bit thats all i had layin around. Still needs work but its a start.


Chris Zautner

Pinnacle OPE Member
Local time
9:28 AM
User ID
595
Joined
Jan 18, 2016
Messages
534
Reaction score
1,519
Location
New York
Country flag
I would heat up that deflector with a torch real good to burn the galvanizing off because you can get really sick from it when it gets hot. The galvanizing will smoke and cause metal fumes fever. Just be careful using that stuff with heat.


Mycamaro_68

By guess and by golly
Local time
8:28 AM
User ID
713
Joined
Jan 28, 2016
Messages
670
Reaction score
2,004
Location
Cedar Rapids, IA
Country flag
I would heat up that deflector with a torch real good to burn the galvanizing off because you can get really sick from it when it gets hot. The galvanizing will smoke and cause metal fumes fever. Just be careful using that stuff with heat.
Agreed! You can also grind off the galvanized coating where it will be welded. Galvanized sickness sucks! It seems very weird but if you do start to feel sick drink lots of milk.... it helps!


Chris Zautner

Pinnacle OPE Member
Local time
9:28 AM
User ID
595
Joined
Jan 18, 2016
Messages
534
Reaction score
1,519
Location
New York
Country flag
Agreed! You can also grind off the galvanized coating where it will be welded. Galvanized sickness sucks! It seems very weird but if you do start to feel sick drink lots of milk.... it helps!
Very good information to know!!!!


merc_man

merc_man
Local time
9:28 AM
User ID
933
Joined
Feb 24, 2016
Messages
4,952
Reaction score
21,578
Location
southern ontario
Country flag
I would heat up that deflector with a torch real good to burn the galvanizing off because you can get really sick from it when it gets hot. The galvanizing will smoke and cause metal fumes fever. Just be careful using that stuff with heat.
Not gonna use it. Im just playing to see if i could make one. Gonna go get a small sheet fromm weld shop. I need thinner stuff any how.


Chainsaw Jim

Con Artist LLC
Local time
6:28 AM
User ID
836
Joined
Feb 8, 2016
Messages
4,014
Reaction score
79
Location
Springfield Oregon
I chowdered the guts in this stubborn chunk of 075/076 steel.
2016-07-14 19.34.28.jpg


I was lucky this came from the factory with welding that completely filled the entire area behind the flange so I was able to hog out the inside to match the exhaust. There's another next to it for comparison.
2016-07-14 19.36.05.jpg


Here it is all purdied up and such..

2016-07-15 00.04.01.jpg


Tor R

Newbie
GoldMember
Local time
2:28 PM
User ID
439
Joined
Jan 8, 2016
Messages
5,142
Reaction score
33,055
Location
Mandal, Norway
Country flag
Ya its a peace of divider out of a cabinet from work Lol
just be careful when you work with galvanized stuff, I know one lad who lost all his amalgam tooth fillings, cost him about 8000$ in dentist bill.

We perform metallization at work, required fresh air mask, has been a few people who has taking the easy route and used normal mask, and paid the price with sink polution.


bikemike

Pinnacle OPE Member
Local time
8:28 AM
User ID
768
Joined
Feb 4, 2016
Messages
2,263
Reaction score
5,435
Location
Cottage grove mn
All good work on muffler mods here i was wondering how do you guys make new deflectors that wanna add a second exhaust port. I been playn around tryng to make one bit its not real pretty.

Stihl gotta work on it a bit.
Echo exhaust?


bikemike

Pinnacle OPE Member
Local time
8:28 AM
User ID
768
Joined
Feb 4, 2016
Messages
2,263
Reaction score
5,435
Location
Cottage grove mn

Heres the jig thing i been working on and a pic of the deflector sitting on muffler.
The sheet metle is a little thicker then the muffler material so tjat dont realy help either bit thats all i had layin around. Still needs work but its a start.
Yep echo. Those are very expensive mufflers new or used. That's why I spent a Lil more and piped my echo


bikemike

Pinnacle OPE Member
Local time
8:28 AM
User ID
768
Joined
Feb 4, 2016
Messages
2,263
Reaction score
5,435
Location
Cottage grove mn

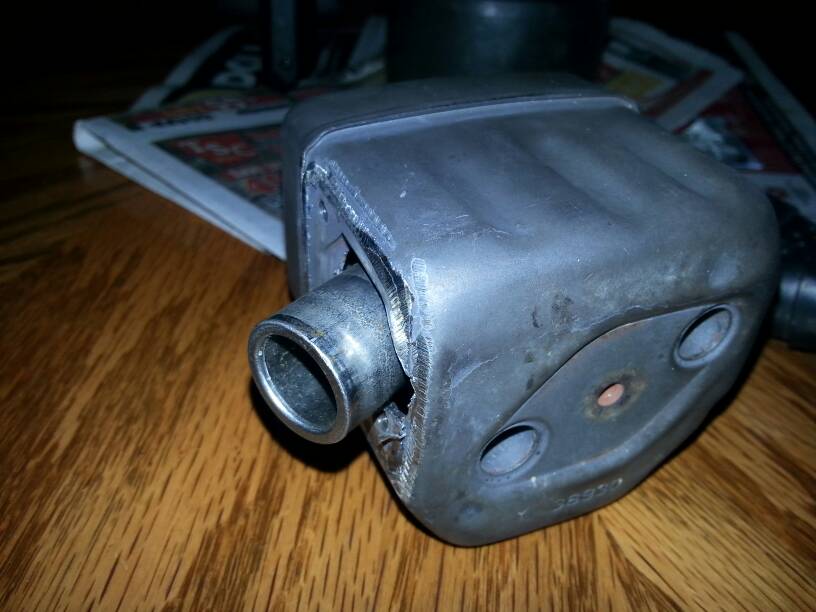

Not anymore I don't but I cut mine in half gutted the baffle out and installed a bigger diameter tube in it. Ran real nice. This is the muffler mod now on my cs 510 49cc20160325_185645.jpg


merc_man

merc_man
Local time
9:28 AM
User ID
933
Joined
Feb 24, 2016
Messages
4,952
Reaction score
21,578
Location
southern ontario
Country flag
I got a little pipe i was debating on putting on it too hit still cant decide. I guess the pipe wpuld direct the heat away better probly


merc_man

merc_man
Local time
9:28 AM
User ID
933
Joined
Feb 24, 2016
Messages
4,952
Reaction score
21,578
Location
southern ontario
Country flag

Chabge in plan. Puttng a little pipe in er.
Nothing better the that lol.
We got.pittle limiter sleeves at work tjat are perfect for little pipes. We cant use the ones that fall on ground incase of dirt. And i got permission to take any metal i can use from scrap bins.
